F2R Y1000 Gamma Device (Diales Roadbook / Tripmaster)

Entering the Digital Age of Roadbook Navigation with F2R and the Y1000 Gamma

For more than four decades, Rally Raid has relied on traditional paper roadbooks, a method dating back to ancient Egyptian scrolls. This enduring technique has been the backbone of a sport that thrives on challenges and adventure. While the simplicity and reliability of paper roadbooks have served us well, the time for a transformative change has arrived.

At F2R, we are committed to embracing the Roadbook Navigation New Era, and 2024 has definitely marked a pivotal year in this journey. The rapid advancements in technology have enabled us to develop a digital device capable of withstanding the extreme conditions of Rally Raid navigation while enhancing the roadbook experience. The potential of such devices has already been demonstrated and proven.

Our vision for digital technology in roadbook navigation is not to make the sport easier, nor to alter its essence. We understand the importance of preserving the challenging nature of navigation and the true spirit of Roadbook Navigation. Instead, our aim is to leverage digital advancements to increase safety, improve usability, streamline organizational tasks such as roadbook corrections, and foster fairness and equal opportunities within the sport.

The ongoing change process is well underway, and F2R stands at the forefront of this Roadbook Navigation New Era. Just as we have been a significant player in the traditional roadbook landscape, we are equally committed to leading the way in embracing the digital revolution. We are thrilled about the promising path ahead and the potential it holds for Rally Raid enthusiasts worldwide.

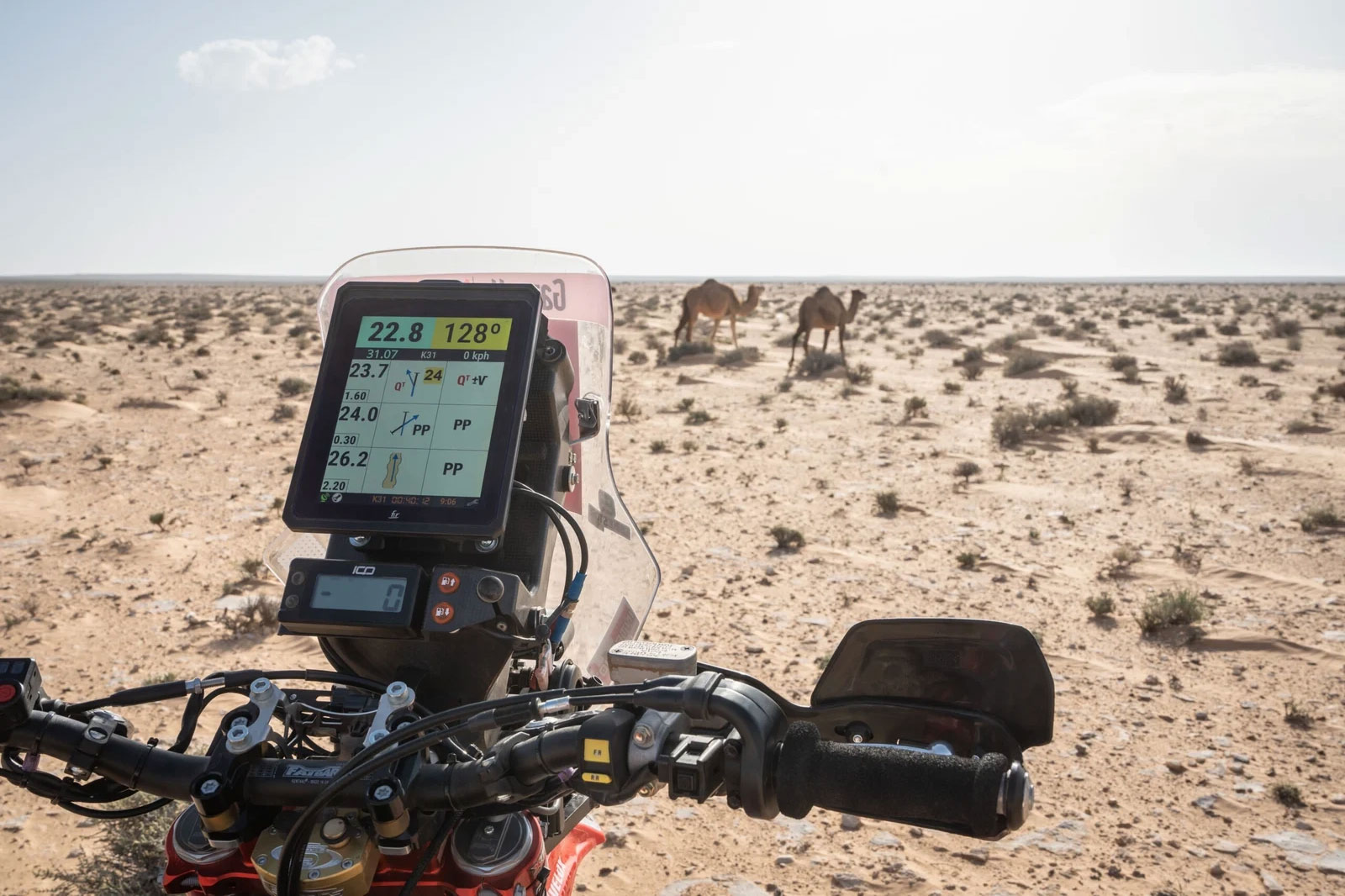

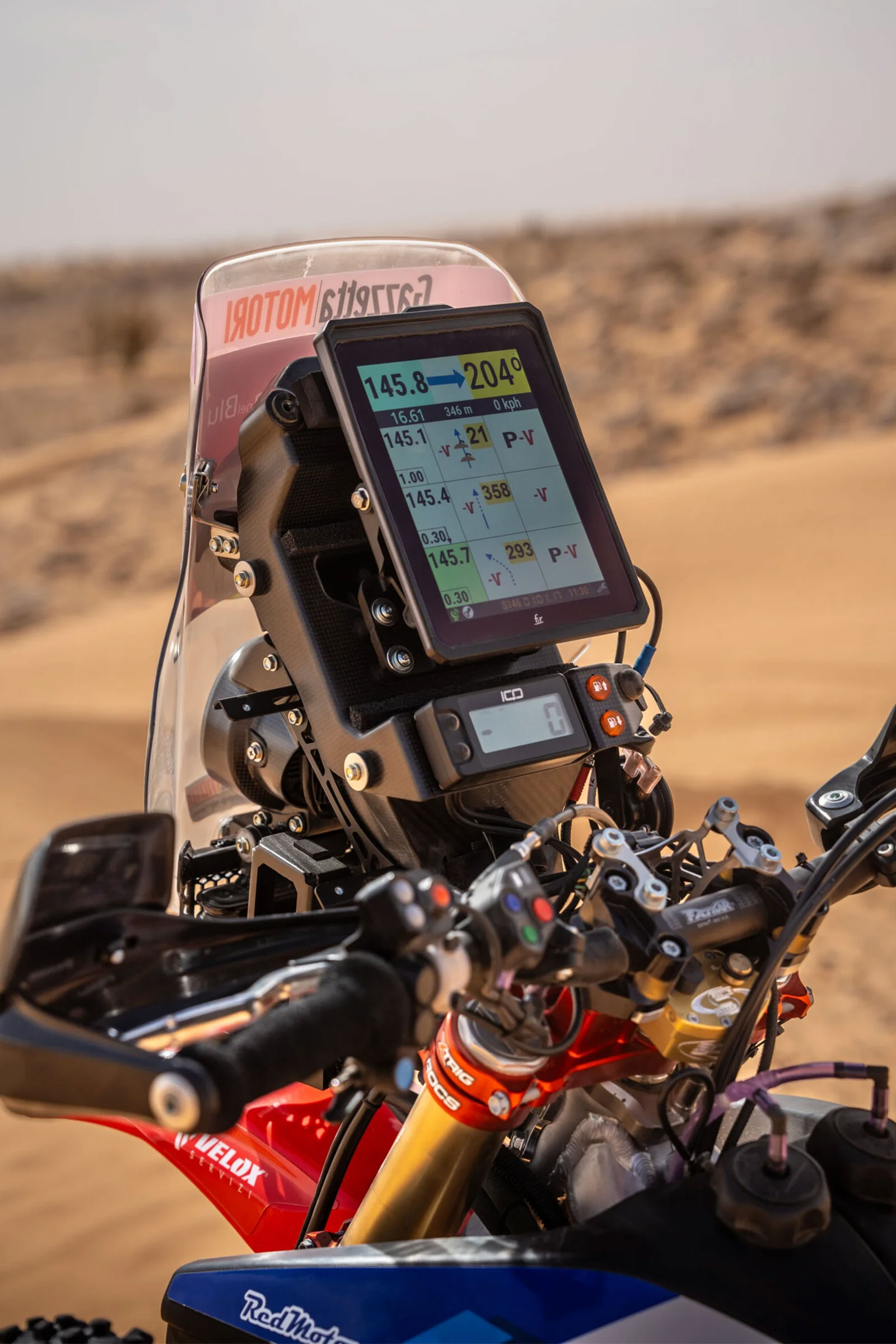

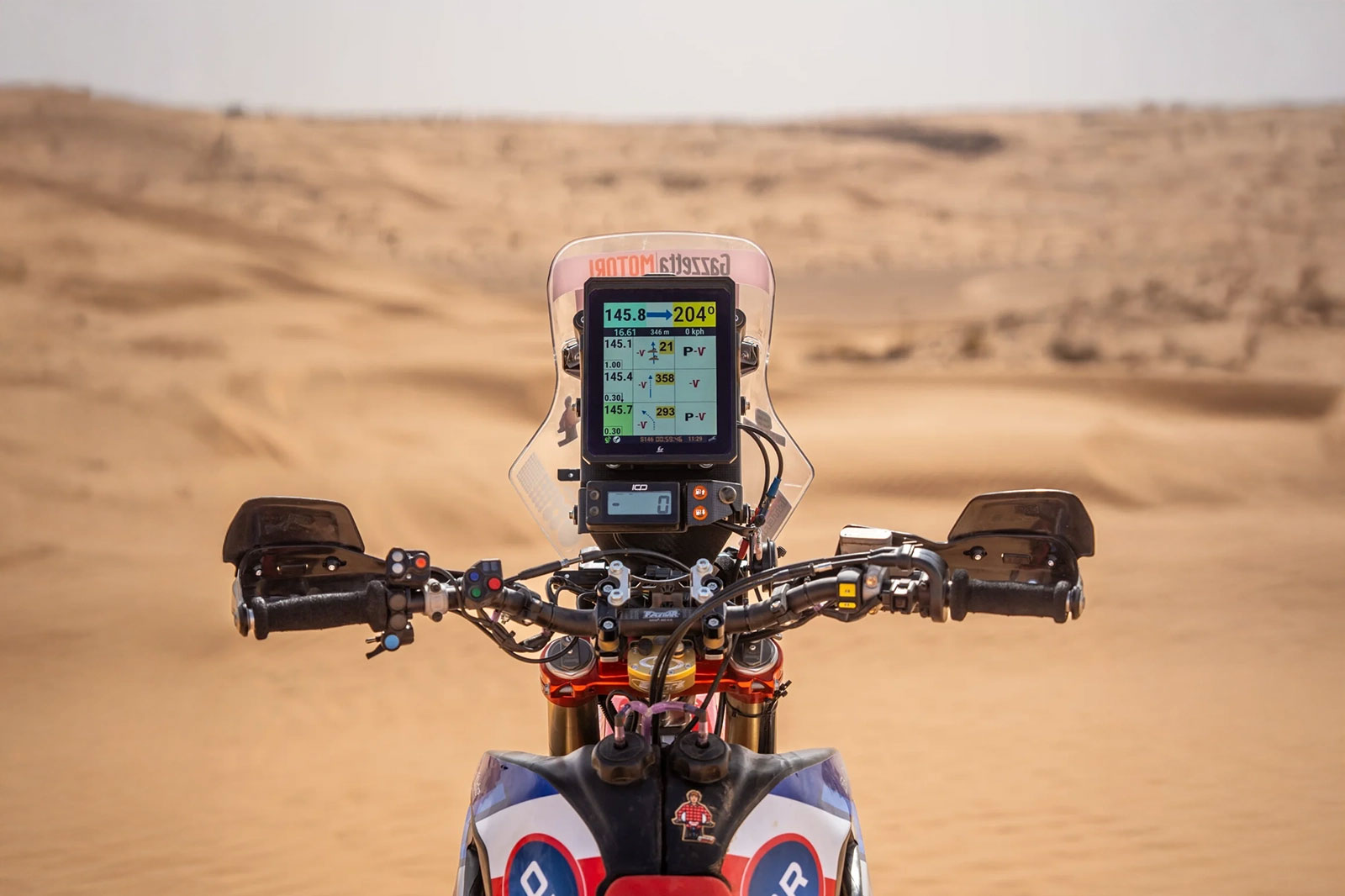

Introducing the F2R Y1000 Gamma - The Ultimate Navigation Tool Powered by Android.

For the past three years, F2R has been fully dedicated to the development of the F2R Digital Device. Leveraging their extensive rally expertise, they’ve meticulously engineered a device that can endure the harshest rallies across the globe. It’s purpose-built to excel under extreme conditions, including wide-range temperatures, intense vibrations, direct exposure to sunlight, and high-impact scenarios.

The journey to create the F2R Gamma 1000 has been rigorous and challenging. From hardware to software and firmware, every aspect of the device has been developed in-house by our dedicated team.
Since February 2024, they have been rigorously testing multiple prototypes to ensure the highest standards of performance and reliability. Our commitment to perfection has drived us to continue testing and refining until we achieve the ultimate navigation tool.

Pre-tested by about 140 amateur and professional rider like Javi Vega (Dakar Rider), Mikael Berglund (ex Dakar rider), Ivan Merichal (Dakar rider) or Jordi Viladoms (ex Dakar rider) for more than 55000 kms!

With unwavering dedication, our mission is to craft the most advanced navigation tool for adventure and rally motorcycles.

The Y1000 has been developed over the course of three and a half years, drawing on F2R’s extensive expertise in roadbook navigation, honed through years of experience in the extreme conditions and environments of rallies. Additionally, it incorporates the team’s deepest knowledge of various navigation apps. Designed as a navigation aid made for bikes and SSVs, the device has undergone rigorous testing, covering more than 50.000 kilometers (31.069 miles) to ensure reliability and performance.

It’s purposely built to excel under extreme conditions, including wide-range temperatures, intense vibrations, direct exposure to sunlight and high-impact scenarios.

The Y1000 features, among other apps, a Roadbook app designed by F2R to transform the traditional roadbook navigation into a highly interactive and digital experience. Our goal has been to digitalise Roadbook navigation without changing its essence.

Standout Features

• Fully CNC-Machined Aluminum Housing Designed to resist Tough Impacts;
• 4mm Display Glass built to Endure Most Crashes and Helmet Impacts;
• 4:3 Ratio Display Designed to Match the Shape of an A5 Paper Roadbook Roll and Tripmasters into One single Device improving Functionality.
• High-Brightness Display with F2R’s Special Coating, Optimized for Visibility in Direct Sunlight; when sunlight hits the screen, it creates a reflection spot in that specific area while keeping the rest of the screen clearly visible.
  The Maximum brightness is sustainable 100% of time, independent of outside conditions.
• Touchscreen operable with Gloves
• Fully Waterproof

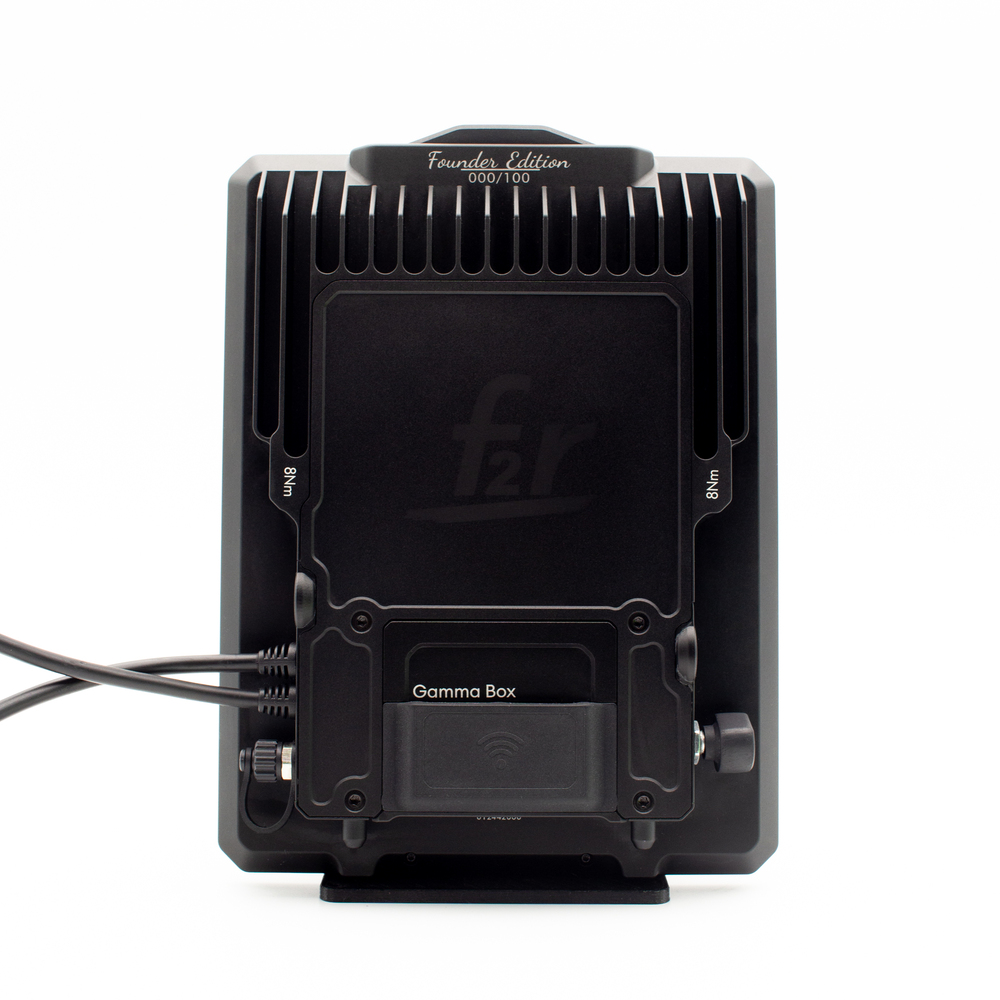

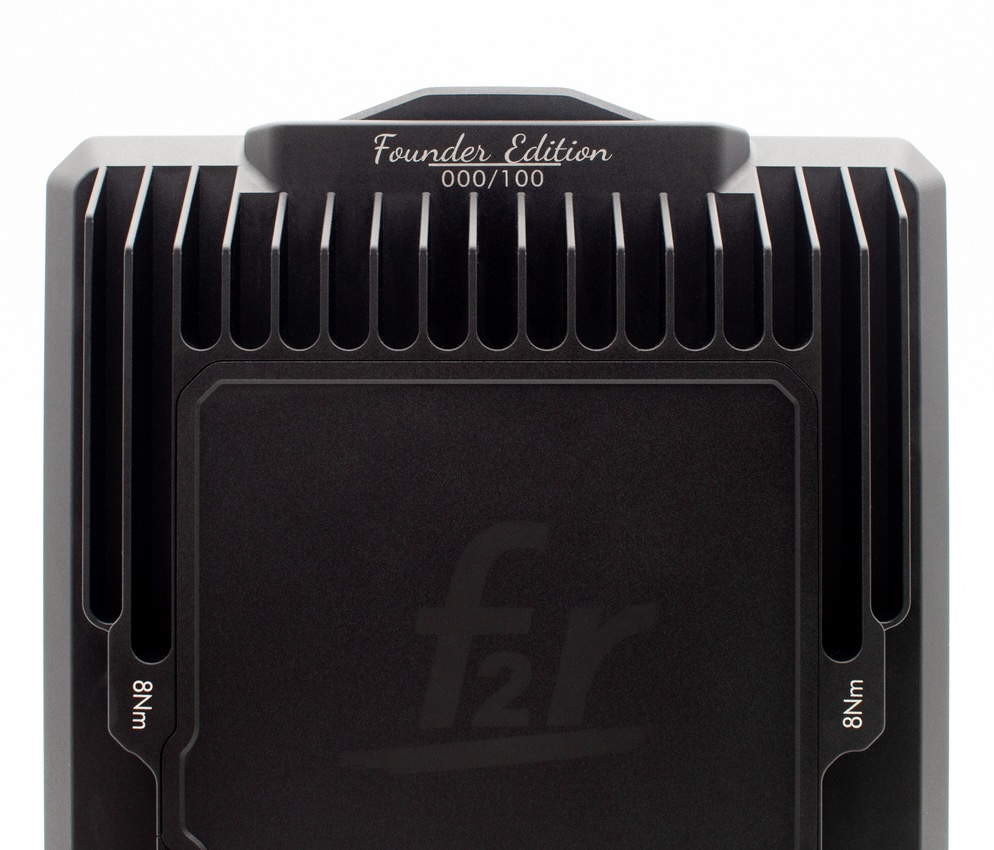

• Its Precision-Engineered Aluminum Housing and Integrated Heat Sink Allow the Device to Efficiently stand up to high temperatures;

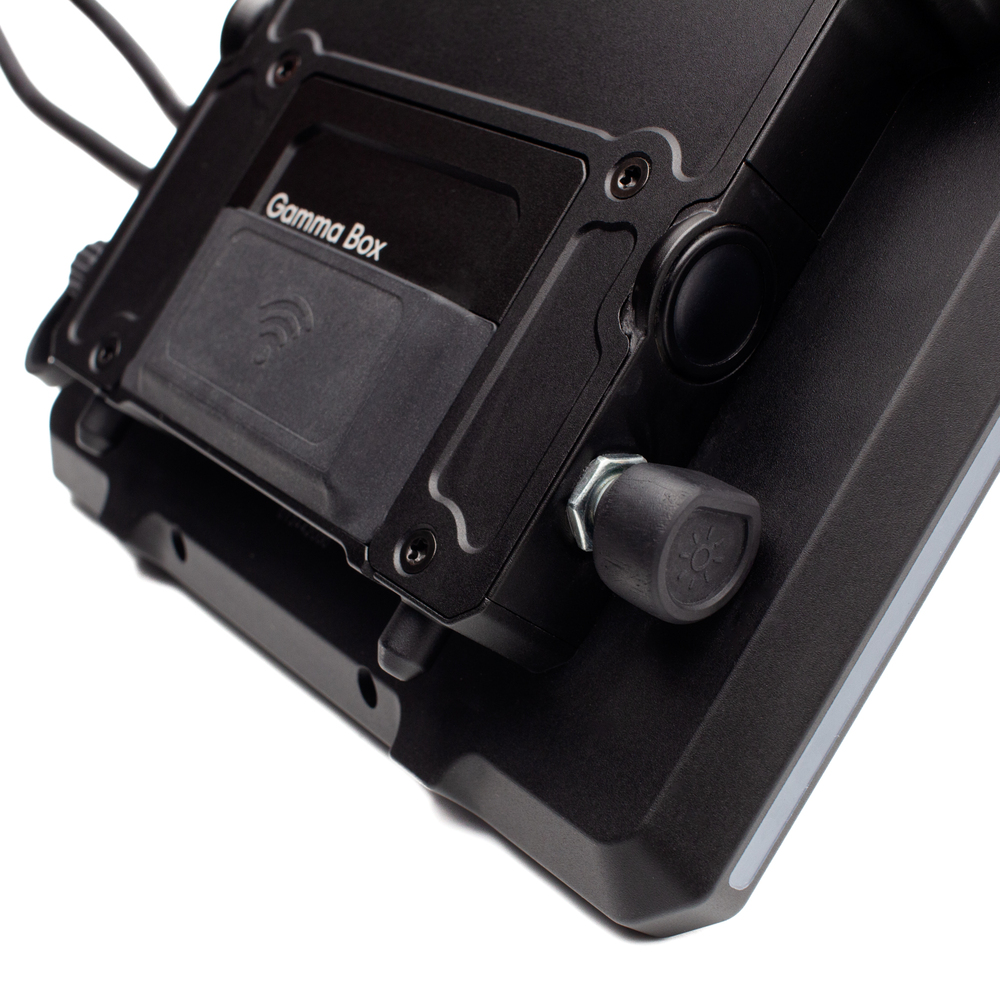

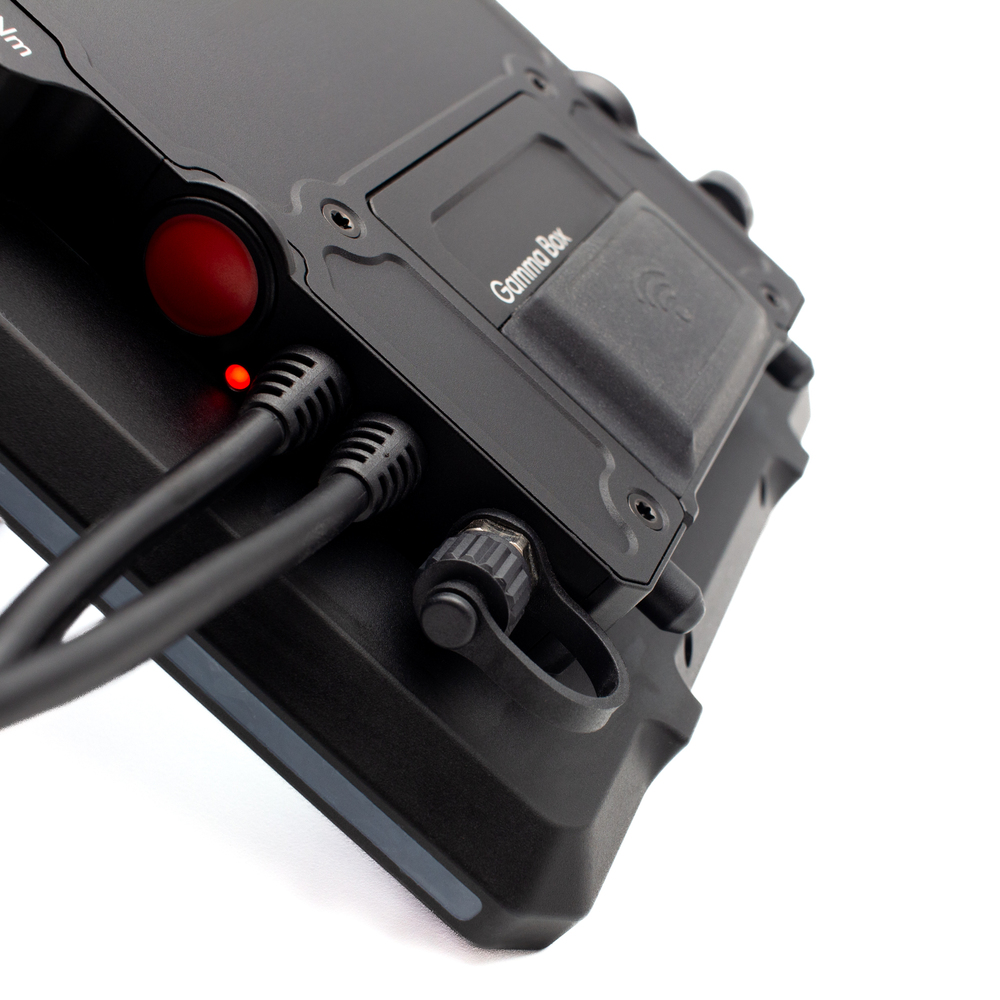

• Detachable GammaBox (Android Box) enables users to transfer their information between bikes effortlessly. Even in a racing scenario, the chassis can be swapped without losing the roadbook or validated waypoints.
• Operating System: Android 13 Fully Customized by F2R to Provide the Simplest User Experience While Retaining All Essential Features for the Device’s Purpose;
• Roadbook Software includes up to two odometers, a CAP header, a speedometer with customizable warnings, and a waypoint arrow, delivering the most advanced and comprehensive navigation experience.
• Third-Party Apps: Install and use various navigation apps, import GPX tracks, and download offline maps effortlessly;
• High-Performance Integrated GPS with a refresh rate of Up to 25Hz and a circular error probable (CEP) of less than 1 meter;
• F2R Power Management System alerts the user to rapid battery drain or any power issues with the bike, ensuring optimal performance and reliability;
• A Remote that automatically adapts its functionality to each app, enabling seamless control of roadbook applications as well as other navigation, GPS, and music apps;
• Covered by a 3-Year Warranty against manufacturing and material defects.

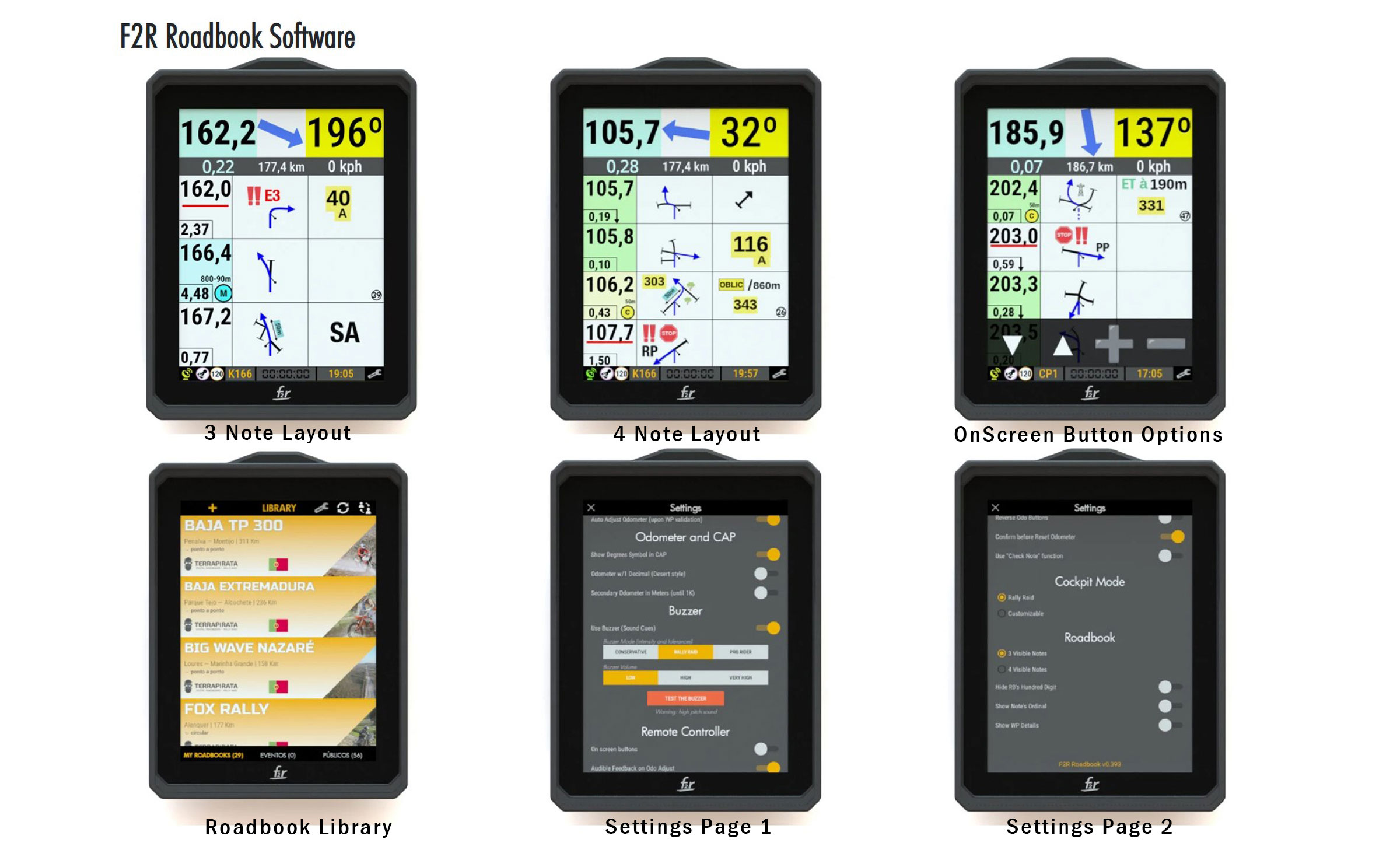

F2R Roadbook Software

• Complies with FIM and FIA regulations
• Integrated main Odometer (total, with one or two decimals)
• Integrated secondary Odometer (partial, in kms or meters)
• Integrated speedometer (with warnings on Speed Zones)
• Integrated CAP header
• Integrated Arrow (for Waypoints)
• Validation of Waypoints
• Fully customized cockpit
• Roadbook scroll note to note (optional)
• Files accepted: Open Rally file (.GPX or .RBK)
• Import file method: Via RDS or locally
• Updates via OTA

Hardware

• Display: High Brightness display (with specific F2R coating)
• Screen size: 8 inch
• Screen thickness: 4 mm (with special coating)
• Screen aspect ratio: 4:3 (A5 paper roll shape)
• Touch: Capacitive touch
• Connectivity: Wi-Fi + Bluetooth
• F2R Power Management system (notifies the user to prevent vehicle battery drainage)
• Chassis: Fully Aluminium CNC
• Detachable Android computer from display chassis (can be swapped between bikes)
• High performance GPS (accuracy of less than 1 meter CEP)

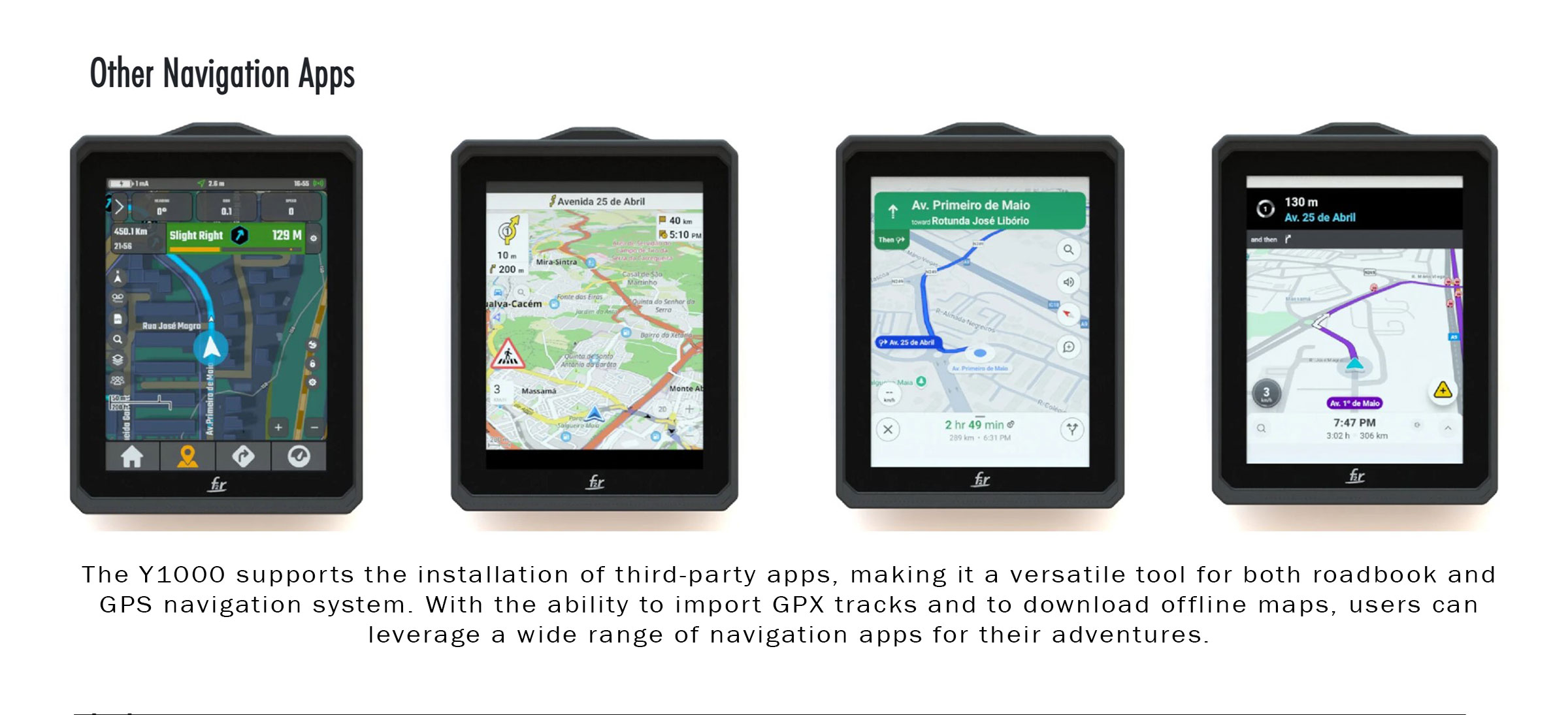

Other usable Navigation Apps

• DMD2
• Osmand
• Google Maps
• Waze

The Y1000 supports the installation of third-party apps, making it a versatile tool for both roadbook and GPS navigation system. With the ability to import GPX tracks and to download offline maps, users can leverage a wide range of navigation apps for their adventures.

Additional Specifications

• Socket for Buzzer (BZ001 – not included, sold separately)
• Main switch
• Home button
• Dimmer button
• Touch screen lock/Standby button
• Specific handlebar remote, connected via cable (DR001 – not included, sold separately)
• Specific SSV remote for co-driver, connected via cable (DRA01-SSV – not included, sold separately)
• Mounting: Portrait position only (vertical)
• Wi-fi
• Bluetooth
• Weight: approx. 1300 g (2.86 pounds)

Y1000 Product Datasheet - see DOCUMENTS tab

Future Accessories Available

• Y1007 – Mounting Bracket (see accessories)
• DR001 – Wired Dedicated Remote for Y1000 (MOTO version - see accessories)
• DR001 – Digital Remote
• DRA01 – Digital Remote for Autos and SSVs
• BZ001 – Buzzer
• Wired Wheel Sensor Adapter (Confirmed)
• External Emergency Battery Pack (Confirmed)
• Dual Device Bracket for Autos and SSVs (Confirmed)
• Motorcycle Bracket with extra-protection (Confirmed)
• SIM Card add-on (Planned)
• Racing Box only with Roadbook Software, no Android OS (Planned)

Included in the Package

• 1 x Y1000 Device (Chassis + GammaBox)

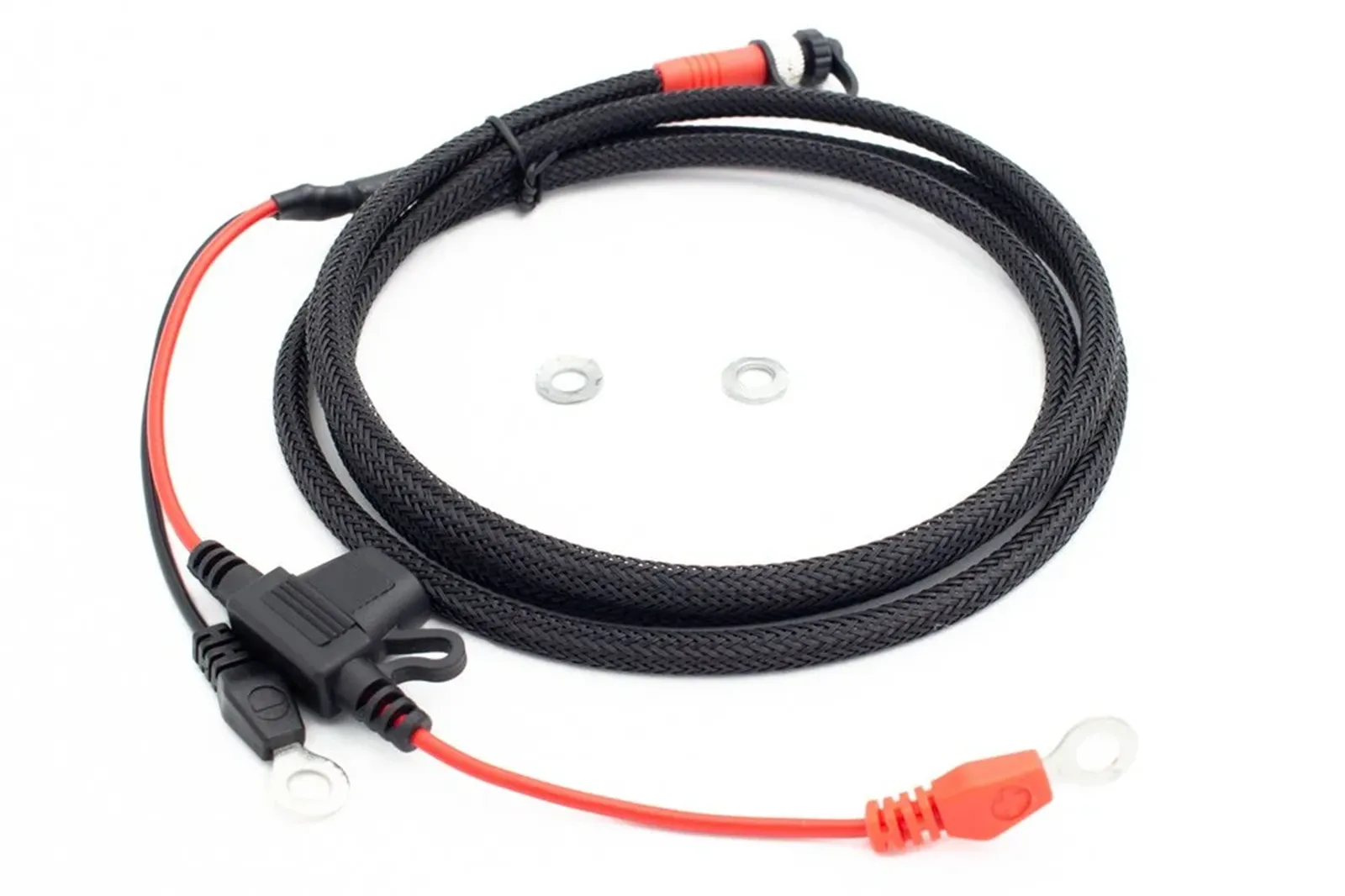

• 1 x Specific Reinforced and Shielded Power Cable (12V)
• 1 x Assembly Kit (2x Bushings, 2x M6x16 Bolts and 4x Grommets)
• 1x Screen Protector Kit
• 1x Quick Setup Guide

NOTE: The device you receive may feature minor aesthetic variations from the images shown above.
