Fork Cartridge Tool Yamaha Kayaba / Ohlins Cartridge

Yamaha Tenere 700 Ohlins NIX Adventure FKA 114 Cartridge Kit including spring set of your choice   For the Dual Sport and Adventure bikes. The Öhlins cartridge kits have now been made for the Yamaha Tenere 700. Based on the successful Öhlins NIX technology, we are proud to introduce Öhlins cartridge kits for this segment. Big sized adventure bikes used in their right element on true adventures both on and off the road can now enjoy the improved comfort and performance from an Öhlins cartridge kit. Öhlins R&D decided to go for a solution based on the successful Öhlins NIX technology to reach the goal of a cartridge that can deliver both comfort and performance, and go longer than an off-road kit between servicing. The small design of the cartridge kit makes it Easy fit in the upside down OE fork of the Tenere Yamaha 700. The kits are easy to install, just pop out the OEM kits and install the Öhlins cartridge kits instead.   Thanks to the FKA 100 kits from Öhlins the bikes now has a fully adjustable front end. Rebound damping is on one leg and compression in the other leg, with adjustable spring preload in both legs. Together with an overall improved damping system, the bike is transformed and can deliver so much more. Different springs are available for riders individual demands as well as an effective hydraulic stop inside the kit to prevent bottoming. After tests we feel confident this cartridge kit improves the Tenere 700 both in terms of comfort and overall performance. Fast gravel roads on a weekend or piloting around small trails to find the perfect stop for the night demands both comfort and performance. With this kit the bike delivers that.   Technical Data:   Length: 923 mm Travel: 210 mm Spring-Series: 08424-series  (5.5 - 8 N/mm) Oil recommendation: Ohlins oil - 01309-01 (R&T) Air chamber: 70 mm (~425 ml each fork leg) TÜV / Street legal   Fits all: Yamaha Tenere 700 2025 onwards Yamaha Tenere 700 2019 - 2024 Yamaha Tenere 700 Rally Edition 2021 - 2024   Note: Comes as a ready to mount cartridge kit including fork springs. Fork oil needs to be ordered separately. See accessories If you like us to check your order, please fill out the suspension questionnaire (see documents tab) and email it to us.

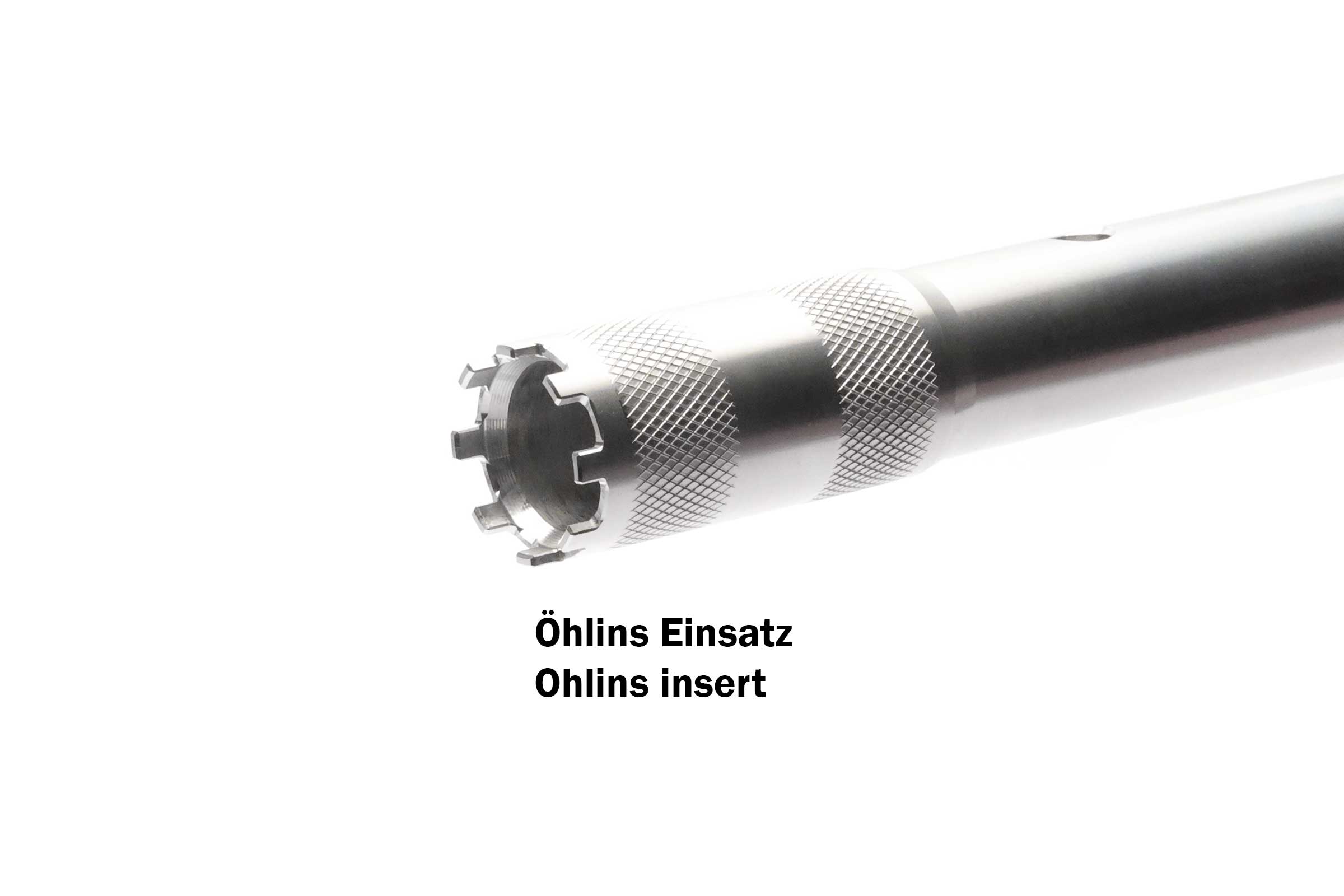

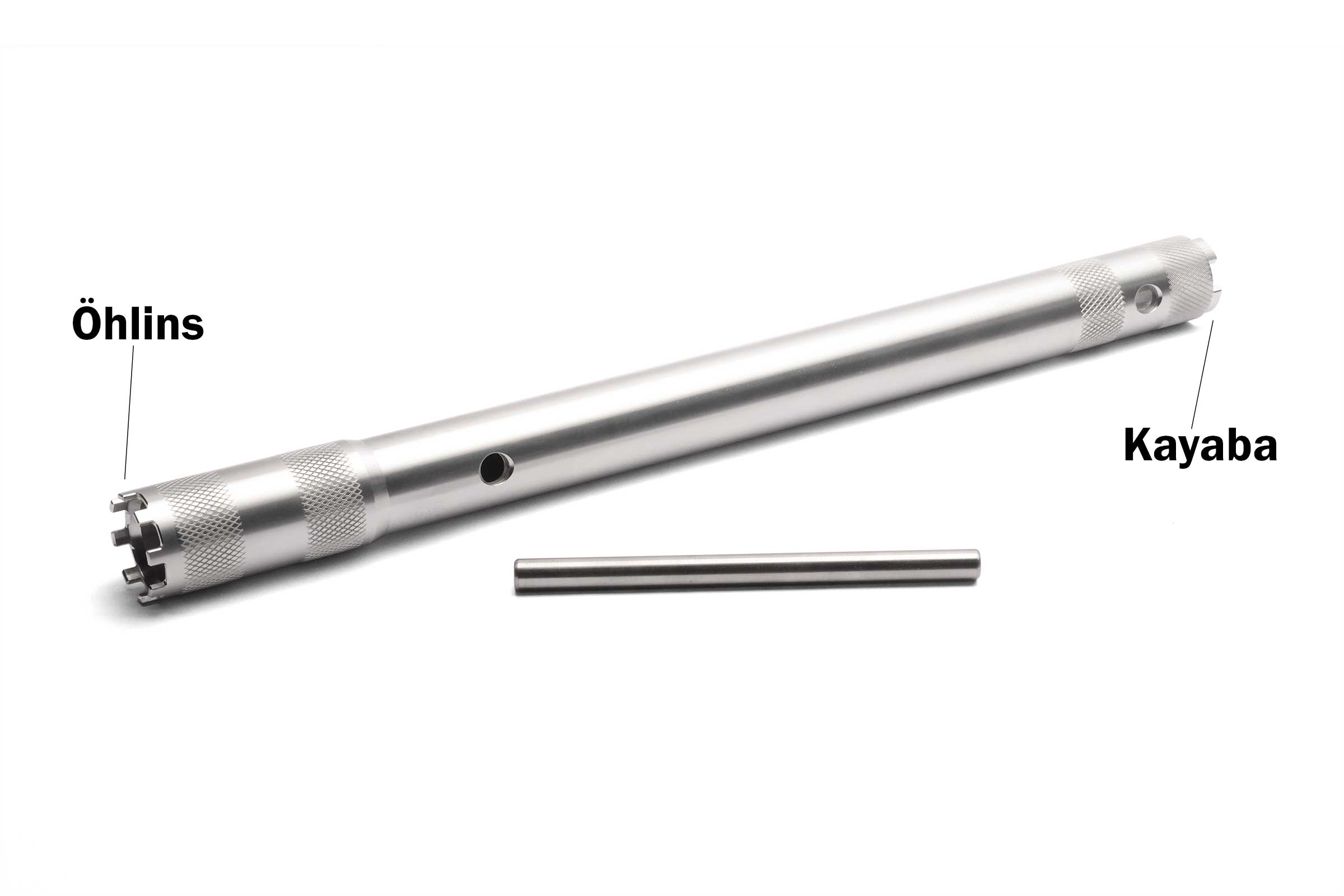

Professional and durable workshop tool for professional and easy installation of springs and bleeding of the cartridge.   Suitable, for example, for all Tenere 700 Kayaba forks, Ohlins, Andreani and Tractice Catridiges Perfect for all who want to perform a fork revision or installation of a new cartridge itself.     Four thread sizes in one tool: M10 x 1.0, M10 x 1.25, M12 x 1.0, M12 x 1.25 Tool design allows for effortless retrieval of damping rod after spring installation Rod includes downward-facing bleed port to prevent oil splatter Perfect for working on Kayaba, Showa and various USD forks One-piece design means no lost parts Laser engraved markings Material: high-grade Aluminum 7075, anodised

Complete set with oil seals and dust caps. These should be replaced at least every 2 years, depending on the riding performance, to ensure a perfect response of the fork. Due to aging or dirt on the fork tubes tubes, fork oil seals can be damaged. The result is a fork oil leakage at the damaged sealing rings. Leaking fork oil is very dangerous and should be avoided in time. Leaking fork oil attacks plastic, metal and painted surfaces, reduces a safe braking process when in contact with brake parts and causes unsafe grip losses on tires. For quality reasons, we only offer high quality shaft seals and dust caps with 3-fold sealing lip. · better breakaway torque and up to 3x less friction than OE Simmerrings · Patented Max-Life manufacture, which increases the life span by 3-4 times · fork seals have 3 sealing lips · Dust caps are coated with a special grease to improve the response Our Tip: Use only for your bike recommended fork oil and mount the seals with a little grease on the sealing lip. Clean the fork tube with chrome polish before mounting new seals. If the fork tubes is damaged with pitting (uneven surface) replace it. An uneven surface may damage the seals quick. Clean fork tubes regularly and grease with Teflon spray. Fits all: · Yamaha XT-1200Z Super Tenere DP01 (10-13) · Yamaha XT-1200Z Super Tenere DP04 (14-16) · Yamaha XT-1200ZE Super Tenere DP04 (14-16) · Yamaha XT-1200Z Super Tenere DP07 (2017 onwards) · Yamaha XT-1200ZE Super Tenere DP07 (2017 onwards)
