Handlebar clamps RALLY with steering damper mounting option Yamaha Tenere 700

Handlebar clamps RALLY with steering damper mounting option Yamaha Tenere 700

CNC machined handlebar clamps in RALLY version with Scotts steering damper mounting option for the Yamaha Tenere 700



Our CNC-machined handlebar clamp set with mounting option for a Scotts steering damper combines extreme torsional rigidity with simultaneous mounting flexibility.

The handlebar position can be varied +/- 5mm forwards/backwards. It can also be combined with our handlebar riser for the Tenere 700. This allows the handlebars to be raised by 20 or 30 mm.



The steering damper is mounted below the new handlebar clamps on a CNC-machined bracket.

Thanks to an additional eccentric design of the handlebar clamps, the handlebars can be mounted in the original position or 10 mm further away from the rider. The offset handlebar position is particularly advantageous when riding at a slightly faster pace and puts more pressure on the front wheel.



The Rally clamp plate allows horizontal or vertical mounting of various GPS or navigation instruments as well as RAM mount adapters.

The milled handlebar clamping plate also increases the torsional rigidity of the complete handlebar clamp.



All parts are milled from solid material on our modern CNC machines. We only use extremely tough aerospace aluminium 7075 T6 as a material

The surface of all components is anodised black for protection.



The mounting kit on the fork bridge and the counterholder are completely bolted, no welding is required! Complete dismantling is possible without any problems.

The nickel-plated steel counter bracket, which is also milled and bolted to the frame, is available separately. See accessories



Suitable e.g. for mounting of:

  • Garmin Montana 600 Series
  • Garmin Montata 700 Series
  • Garmin 276CX Series
  • Garmin Zumo XT Series
  • Trailtech Voyager Pro
  • Quad Lock
  • SP Gadgets
  • Ram Mount
  • Samsung Galaxy Active Tab
  • Measurement hole pattern see photo



Scope of delivery:

  • 1 x CNC machined top Rally cross brace, black anodised
  • 1 x CNC machined clamp base, black anodised
  • 2 x CNC machined handlebar riser
  • Bolt set
  • Mounting Instructions



Details:

  • handlebar position same as OEM position
  • Handlebar can be raised by using additional spacers (see accessories)
  • cnc machined handlebar clamps 28.6mm diameter, black anodised
  • all needed mounting parts, bolts
  • steering damper not included
  • fits oem triple clamp



Fits all:

  • Yamaha Tenere 700 2025 onwards*
  • Yamaha Tenere 700 Rally 2025 onwards*
  • Yamaha Tenere 700 2019 - 2024
  • Yamaha Tenere 700 Rally Edition 2020 - 2024
  • Yamaha Tenere 700 World Raid 2022 - 2024
  • Yamaha Tenere 700 Extreme 2023 - 2024
  • Yamaha Tenere 700 Explore 2023 - 2024



*Tank cover and seam must be lightly machined.

Manufacturer:
OFF-THE-ROAD - OTR-Performance GmbH

Hugo-Junkers-Str. 52-54

50739 Köln, Deutschland

info@off-the-road.de
Skip product gallery

Spare Parts

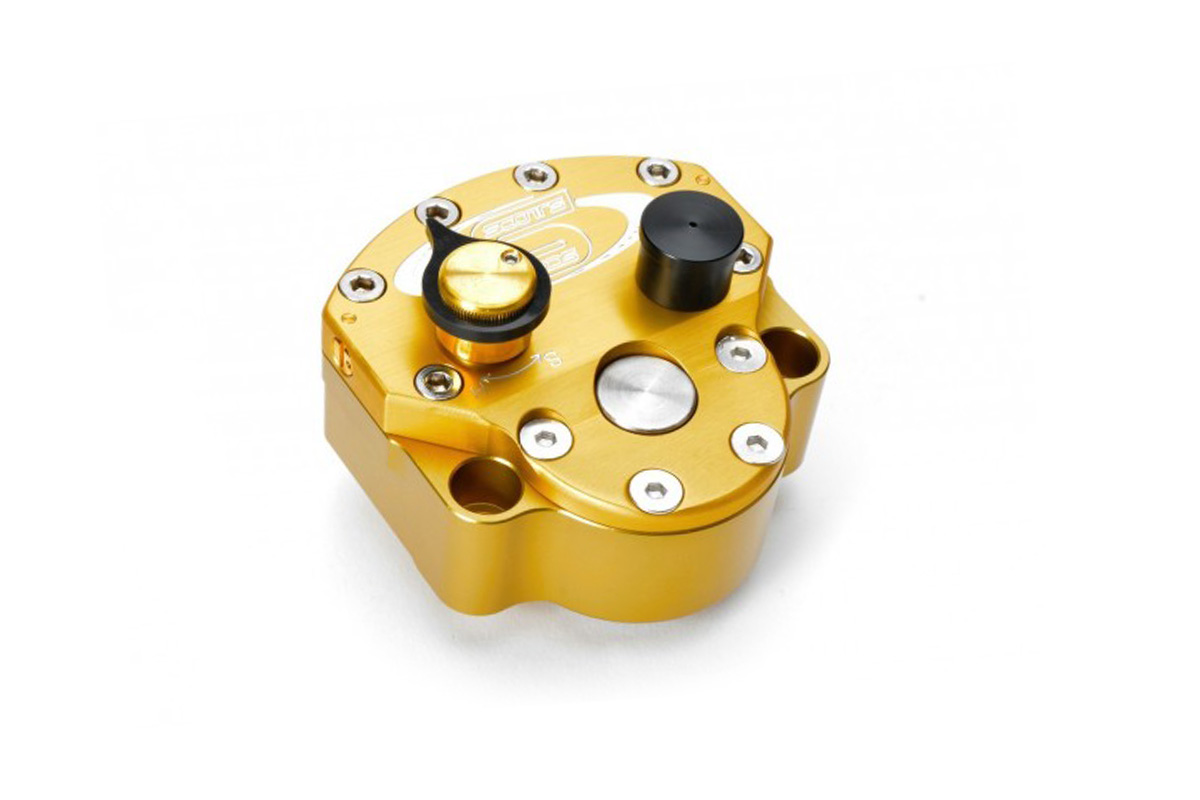

Scotts Steering Damper, off-road type, stepped arm, LKM-4032-40
