Mirror DoubleTake Adventure 2.0 Mirror Set 6" (150 mm), for left and right side, M10 thread

€154.95
Available, delivery time: 1-3 days
Mirror DoubleTake Adventure 2.0 Mirror Set 6" (150 mm), for left and right side, M10 thread
DoubleTake Adventure Mirror Set 6" (150 mm), for left and right side with M10 thread
Smart Adventure mirrors designed by off-road enthusiats. The goal when developing was to make mirrors that worked as well as OEM mirrors for visibility, yet they sould be far more robust, fully adjustable, removable without tools and flexible enough to fold down out of the way.
All of DoubleTake stem-style mirrors use a standard RAM 1-inch ball mount base and 150mm extension arm that allows the mirrors to swivel into a variety of positions, while a glove-friendly knob locks the desired position in place. Not only does this system offer an extreme range of positioning, it allows the mirrors to be tucked in manually or quickly removed without tools. Even better, you can leave them extended during your entire adventure, knowing if a mirror takes a hit it will bend at its ball joints instead of breaking.
DoubleTake uses Society of Auto Engineers-spec glass and shrouds it in a casing of nylon polymer-reinforced Zytel to make it virtually indestructible as well. And if anything on a system does break, all parts are avaiable as single items.
Comes with Yamaha typical left and right side M10x1.25 thread.
Details:
- Indestructible- Made from reinforced Zytel
- Excellent visibility- SAE spec convex lens
- Easy to fold, remove, or swap between bikes
- Housing guaranteed against breakage
- Mirror Dimensions = 135mm x 90mm (5.25" x 3.5")
- Mirror overall length = 175mm (7")
- Made in the USA
- Not street legal in Germany
- Recommended for applications where mirror will be extended most of the time, although it still folds very well
- Needed M10 LH thread Yamaha included
Scope of delivery:
- 2 x DoubleTake Adventure Mirror
- 2 x Doubletake 6" (150 mm) arm
- 2 x Doubletake Mount Ball 1.125"
- 2 x Extension 20 mm
- 2 x lock washer
- 2 x bolt M10 x 1.25 long
- 2 x bolt M10 x 1.25 short
- 2 x bolt M10 x 1.25 long, left hand (reverse) thread
- 2 x bolt M10 x 1.25 short, left hand (reverse) thread
- 2 x bolt M10 x 1.50
Fits most:
- Motorcycles with M10 mirror mount threads
DoubleTake - Adventure Mirror, LLC
PO Box 814
81201 Salida, Vereinigte Staaten von Amerika
ride@doubletakemirror.com
Accessories

Available, delivery time: 1-3 days

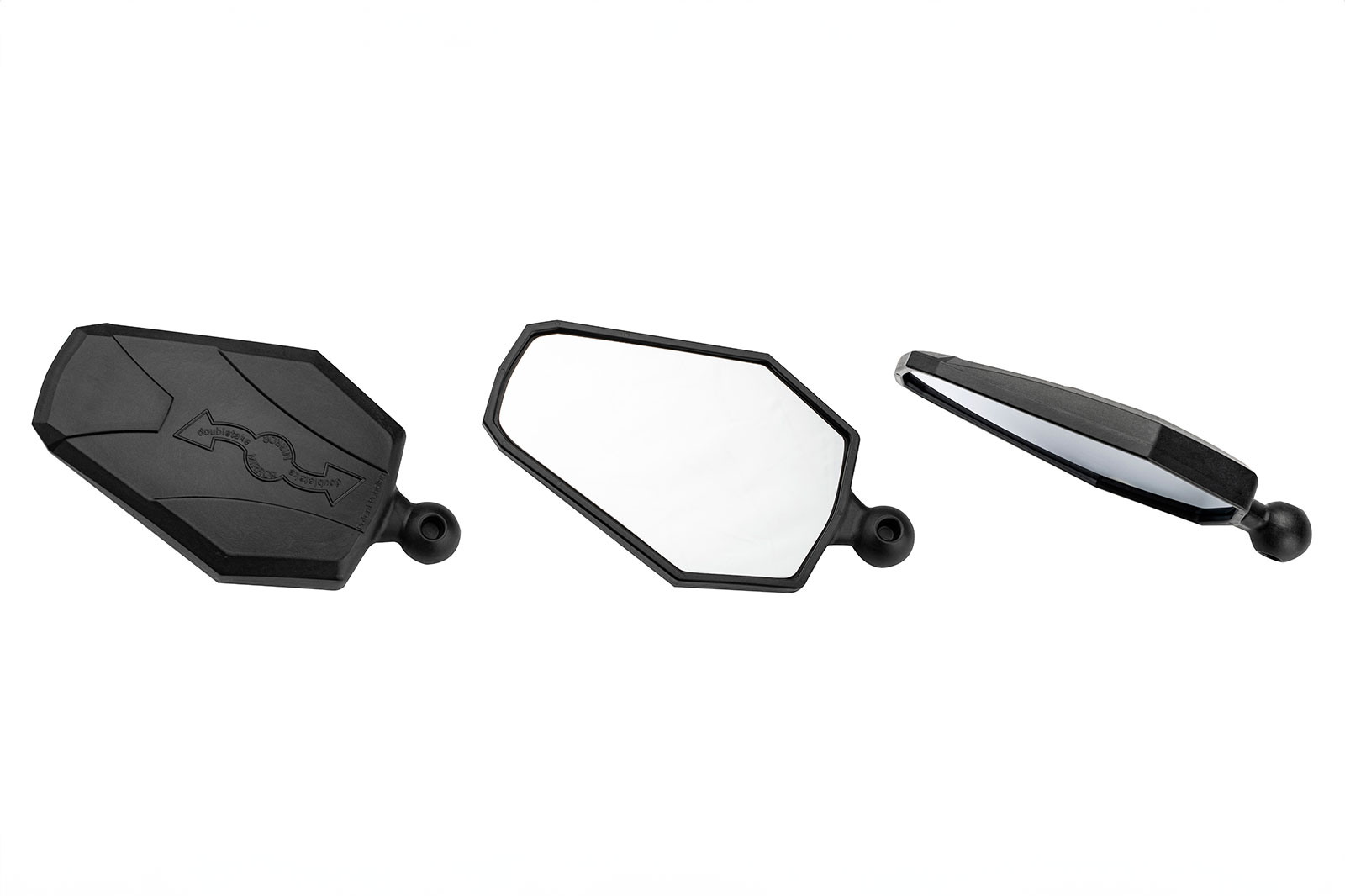

Doubletake Adventure Reflector replacement glass for Doubletake adventure mirror Replacement glass reflector for Adventure Mirror Reflector Dimensions: 5.25" x 3.5" (135mm x 90mm) Convex lens meets SAE and CE specifications Held in place with clear silicone.

Available, delivery time: 1-3 days
Security nut Kit for Doubletake mirrors Includes two nuts and bolts that replaces the big thumbscrews on your Doubletake 3.5 or 6.0 ARMS Includes wrench Kit does not include Doubletake Arms

Available, delivery time: 1-3 days

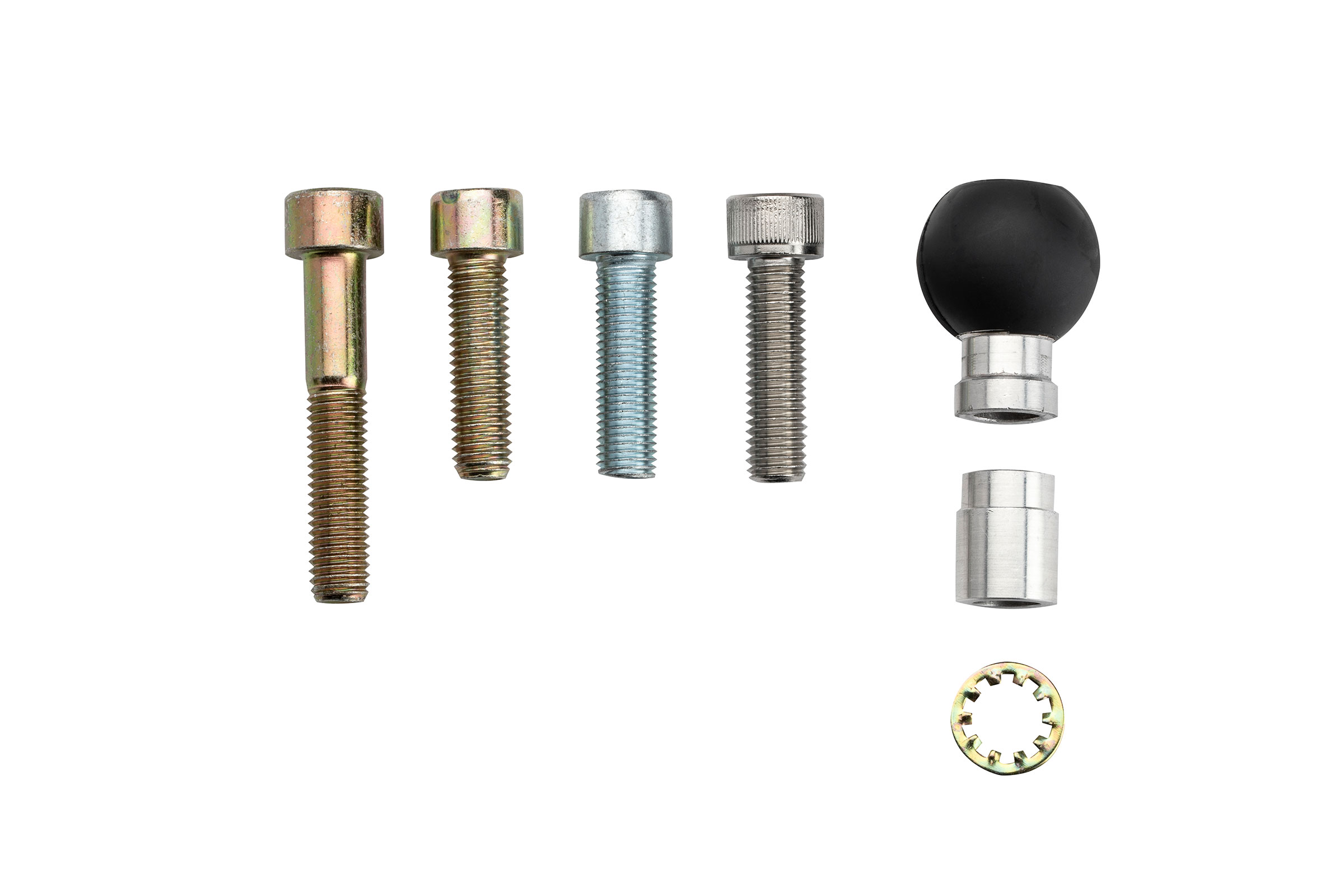

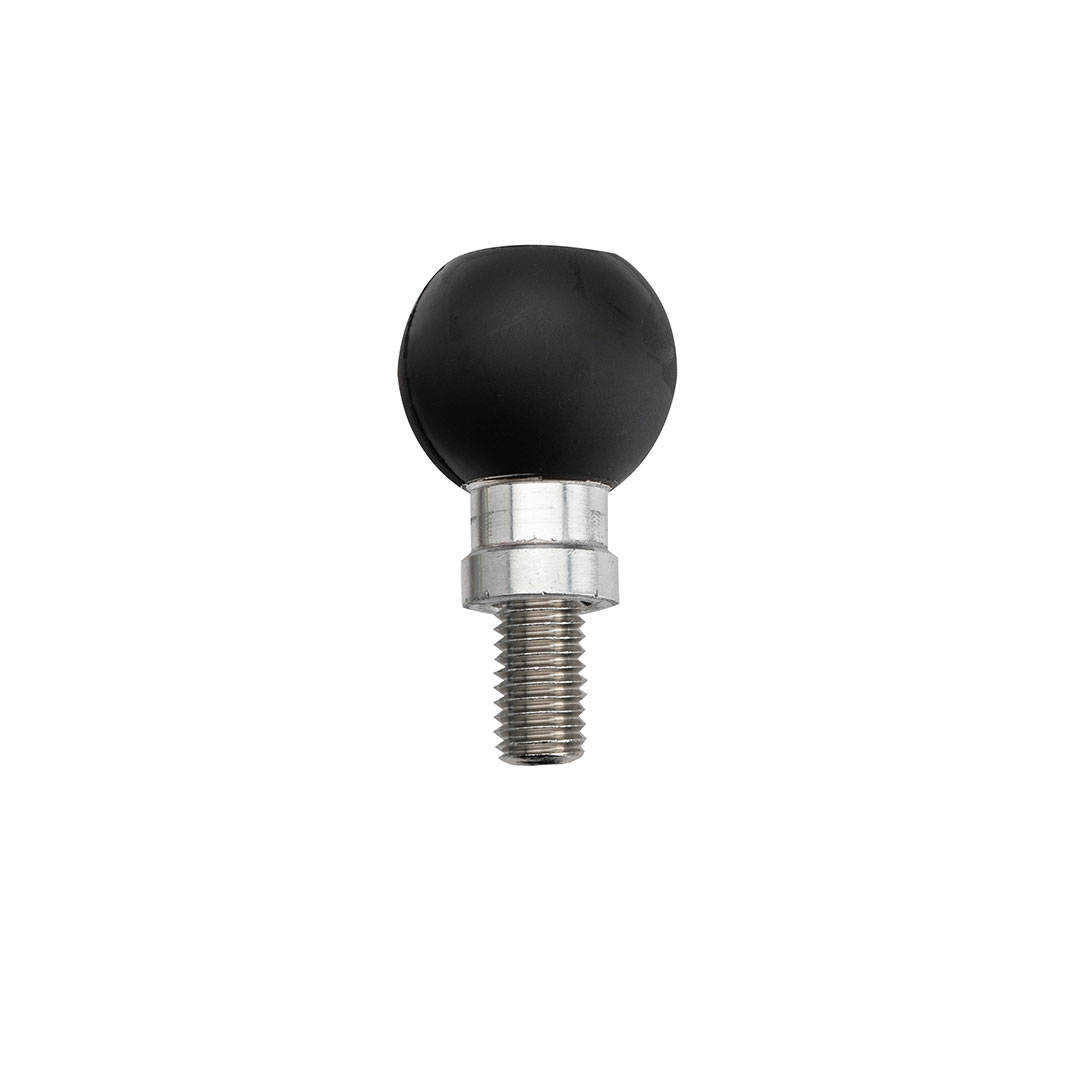

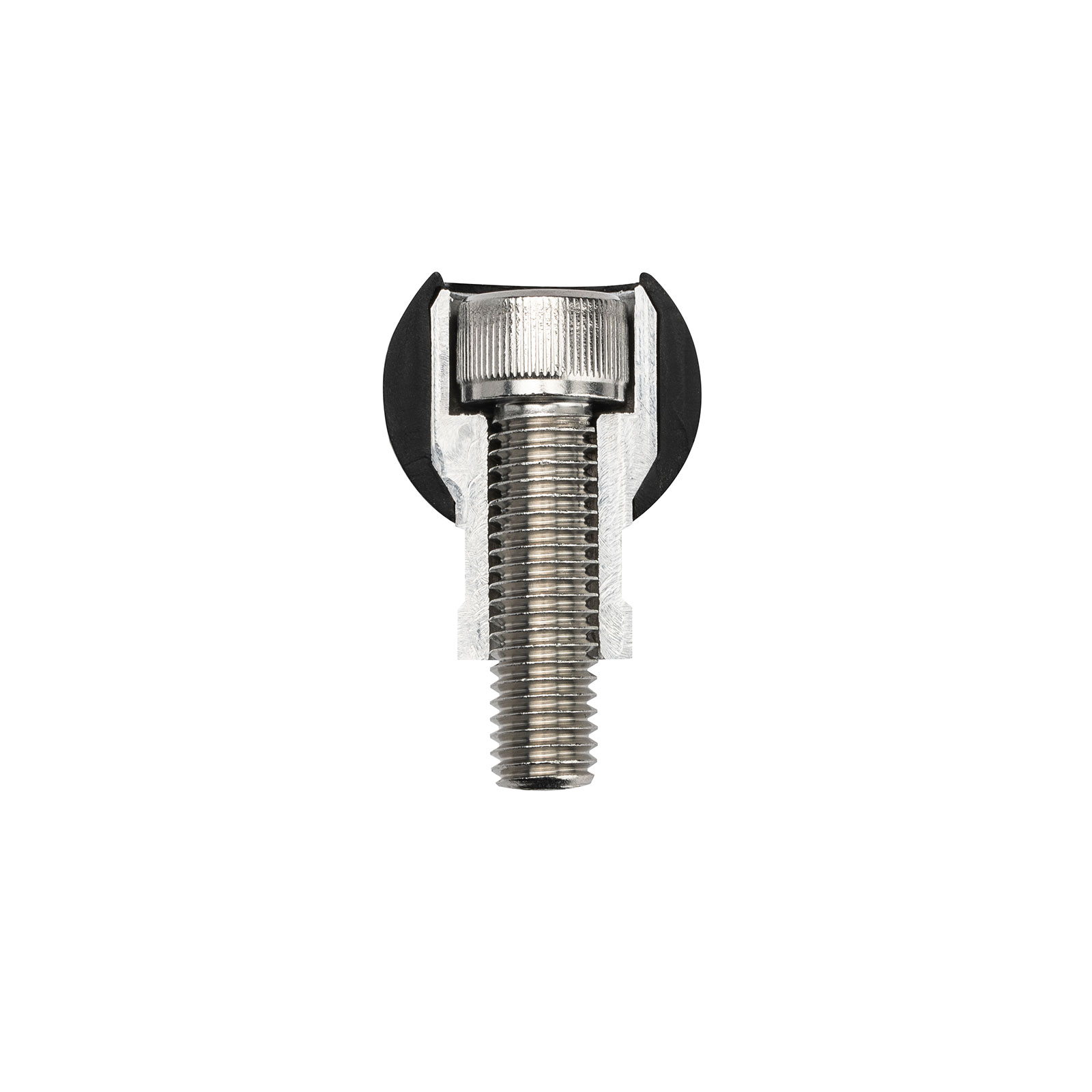

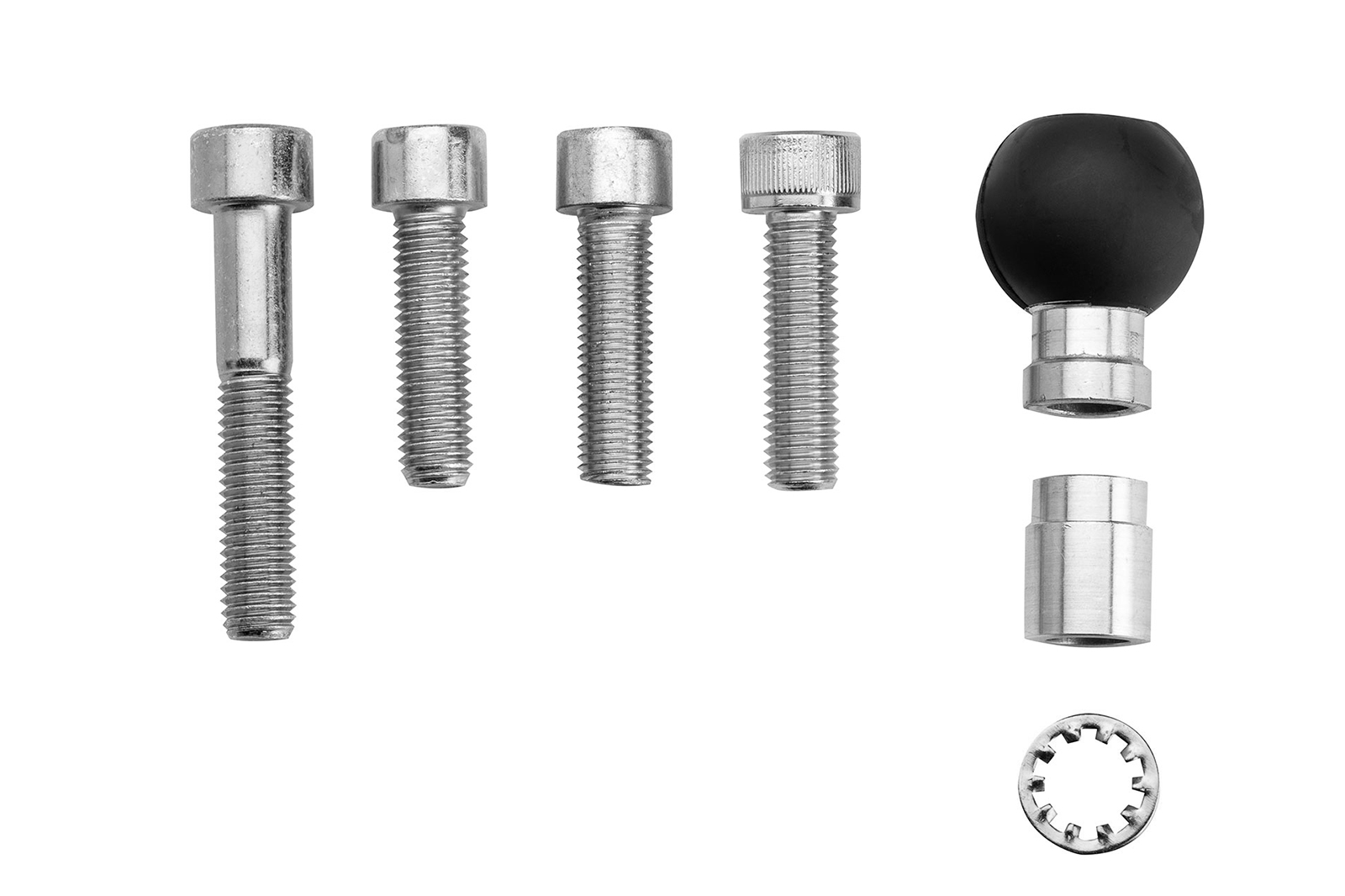

Doubletake Base Kit 1.125" Ball Includes 1 x 1.125" Ball Stud 1 x Bolt 10mm x 1.25 bolt long 1 x Bolt 10mm x 1.25 bolt short 1 x Bolt 10mm x 1.25 bolt reverse thread short 1 x Bolt 10mm x 1.50 bolt short 1 x lock washer Tech spec Weight ball only: 20 grams Weight ball kit: 110 grams Materials: Billet Aluminum, Nitrile, hardened Steel Diameter: 1.125” (29mm) Height: 1.37" (35mm) Extension: 0.78" (20mm) Details: Universal Fit. Every ball kit includes 4 bolts to allow fitment to any bike and eliminate unsightly adapters. Larger size. Our ball is 1.125”, and even that small increase in diameter makes a big difference in rigidity. This means you don’t have to overtighten the arm to keep it from moving while riding. Won't Crush. Our aluminum-filled base ball, coated with high-quality nitrile rubber won’t degrade under extended compression. You won’t have to repeatedly adjust your mirrors, because both ends of the system are designed to last. Won't spin. We include a lock washer that secures the ball in relation to the bike. SKU# BK

Available, delivery time: 1-3 days

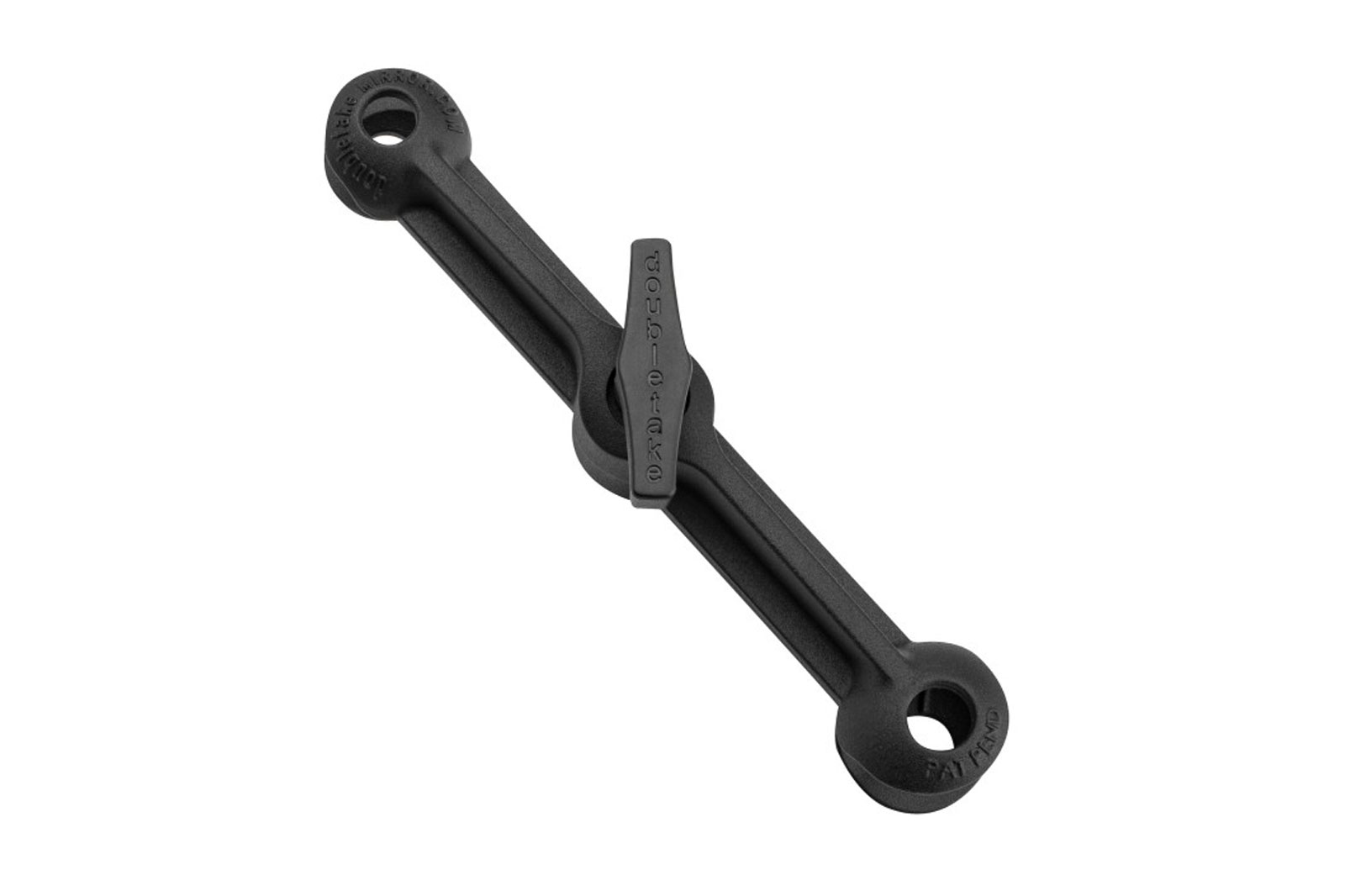

Doubletake replacement 6.0" arm Doubletake's new 6" (150mm) arm. Technical spec Length center to center: 6" (150mm) Length overall: 7" (178mm) Arm weight: 150 Grams Material: A380 Die Cast aluminum Details: Better hold, less effort. The whole system has been engineered together to keep the mirror from moving, except when it has to in an impact. Longer Length. The Doubletake Arm 6.0 is 15% longer than anything else on the market, offering great visibility especially around luggage. Radial Ridges. The clamping surface at the base has radial ridges to hold the ball more securely. These ridges prevent the arm from unintentionally rotating relative to the base, but without mechanical interference that could be damaged under impact. Asymetrical Clamping. Because the ball diameters are different, the clamp is located off-center toward the mirror. The larger base diameter creates more stiffness at the bottom, and the offset clamp grips the mirror tighter to equalize rigidity. Easy Adjustment. Our low profile thumb nut is 25% longer to make adjustment easy even wearing gloves. Compatible. Mirror end 1" socket works with any 1" ball accessory (GPS, Camera, etc). SKU# ARM6.0 NOTE: Requires Doubletake ball kit for base.

Available, delivery time: 1-3 days

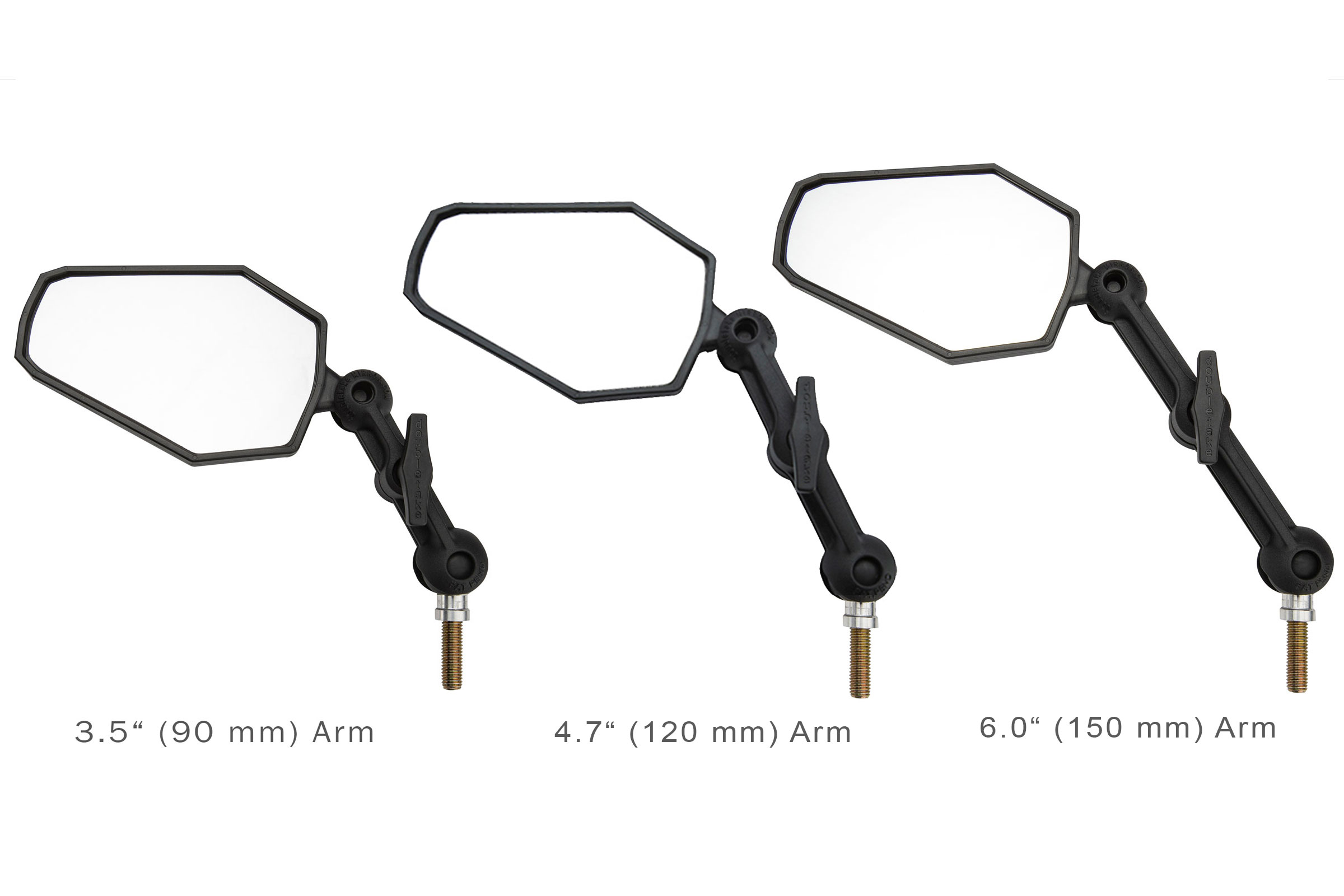

Doubletake replacement 3.5" arm - Doubletake's new 3.5" (90 mm) arm. Technical spec Length center to center: 3.5" (90 mm) Length overall: 4.5" (115 mm) Arm weight: 70 Grams Material: A380 Die Cast aluminum Details: Better hold, less effort. The whole system has been engineered together to keep the mirror from moving, except when it has to in an impact. shorter Length. The Doubletake Arm 3.5 is the one to go for if you use the bike in ahrder off-road- But less visibility, due to reduced length compared the the 6.0" arm. Radial Ridges. The clamping surface at the base has radial ridges to hold the ball more securely. These ridges prevent the arm from unintentionally rotating relative to the base, but without mechanical interference that could be damaged under impact. Asymetrical Clamping. Because the ball diameters are different, the clamp is located off-center toward the mirror. The larger base diameter creates more stiffness at the bottom, and the offset clamp grips the mirror tighter to equalize rigidity. Easy Adjustment. Our low profile thumb nut is 25% longer to make adjustment easy even wearing gloves. Compatible. Mirror end 1" socket works with any 1" ball accessory (GPS, Camera, etc). SKU# ARM3.5 NOTE: Requires Doubletake ball kit for base.

Available, delivery time: 1-3 days
Replacement glass reflectorsfor Doubletake adventure mirrors The Adventure Mirror is perfect for multi-cylinder adventure bikes where the mirrors are kept up most of the time. This mirror offers the widest field of view, and is ideal for riding paved and dirt roads. Made from super tough glass reinforced Zytel Housing guaranteed against breakage Convex lens meets SAE and CE specifications Reflector Dimensions: 5.25" x 3.5" (135mm x 90mm) Overall length: 7" (175mm) Recommended for applications where mirror will be extended most of the time
