Ohlins Shock Yamaha Tenere 700
€1,279.95
Ready to ship, est. shipping time: 1-3 workdays
Ohlins Shock Yamaha Tenere 700

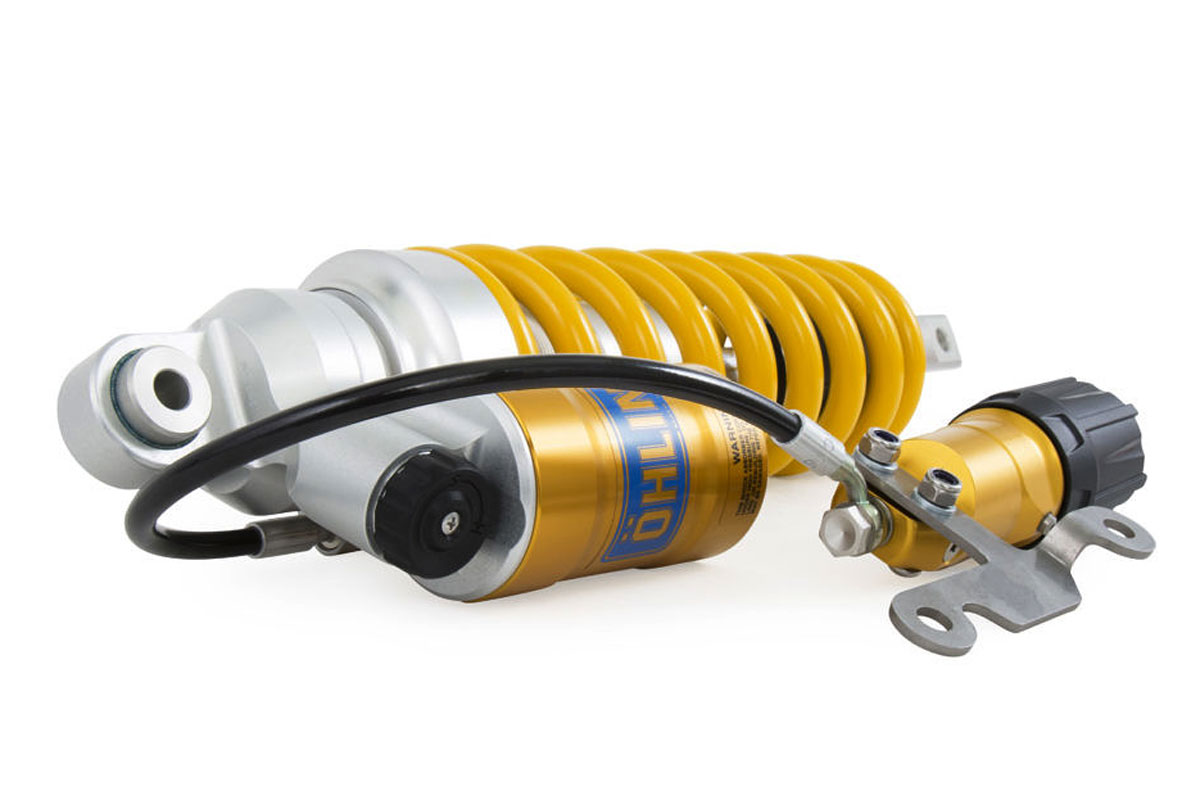

Ohlins STX 46 Shock Yamaha Tenere 700
OHLINS manufactures the 'state of the art' shock for the Yamaha Tenere 700. Our recommendation for all world traveller, rally pilots, Super-Moto and touring drivers.
All rally bikes made by OFF-THE-ROAD are equipped with Öhlins suspension.
All ÖHLINS shocks are custom made for each bike and each driver. The set up for each shock, the damping and rebound as well as the springs are tested on and off-road to get the best results.
They are the results of true tests with your bike and no guesswork! All ÖHLINS shocks work with the "de Carbon" concept. This shock is a high pressure monotube type. The fluid is put under gas pressure and the gas and the fluid are kept
apart by a separating piston. The piston is fitted in an external reservoir. This will give you the advantage of stabil suspension work even in the worst conditions.
Notes for the set-up of the shock (spring rate and damping)
If you like us to double check your order about spring rate choice, please fill out the suspension questionnaire (see documents tab) and email it to us after order.
After receipt of the questionnaire, the shock absorber will be adjusted free of charge exactly to your specified purpose and weight.
Features:
- Single tube gas shock
- 46 mm piston diameter

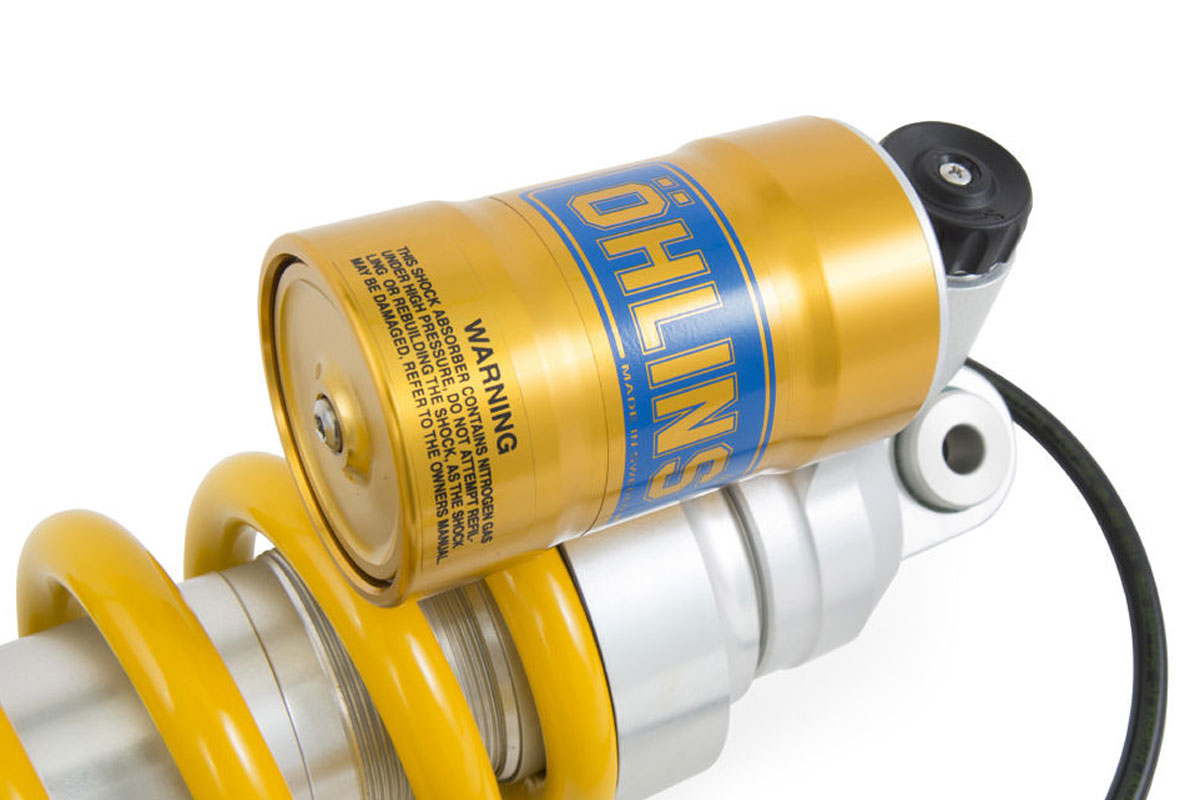

- external reservoir
- 30-fold adjustable rebound damping
- 30-fold compression damping

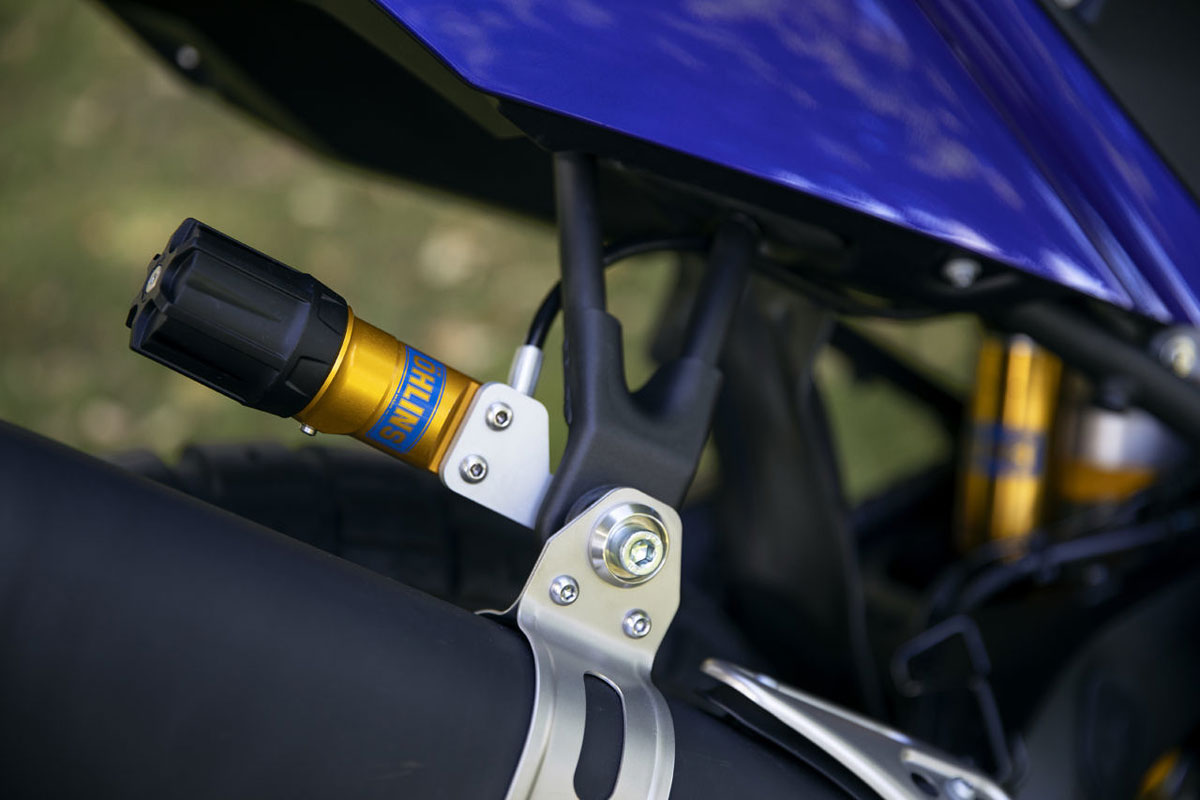

- Free adjustable hydraulic spring preload
- Adjustment for different rider weights and or luggage loads possible.
- for spring rates up to 90 N/mm
- external reservoir
- incl. ABE (street legal document for Germany)
Help to choose correct spring rate:
Rider 75-85 kg - Spring 00698-19 70 N/mm
Rider 85-95 kg - Spring 00698-21 75 N/mm
Rider 95-105 kg - Spring 00698-24 80 N/mm
Rider 105-120 kg - Spring 00698-29 90 N/mm
Fits all:

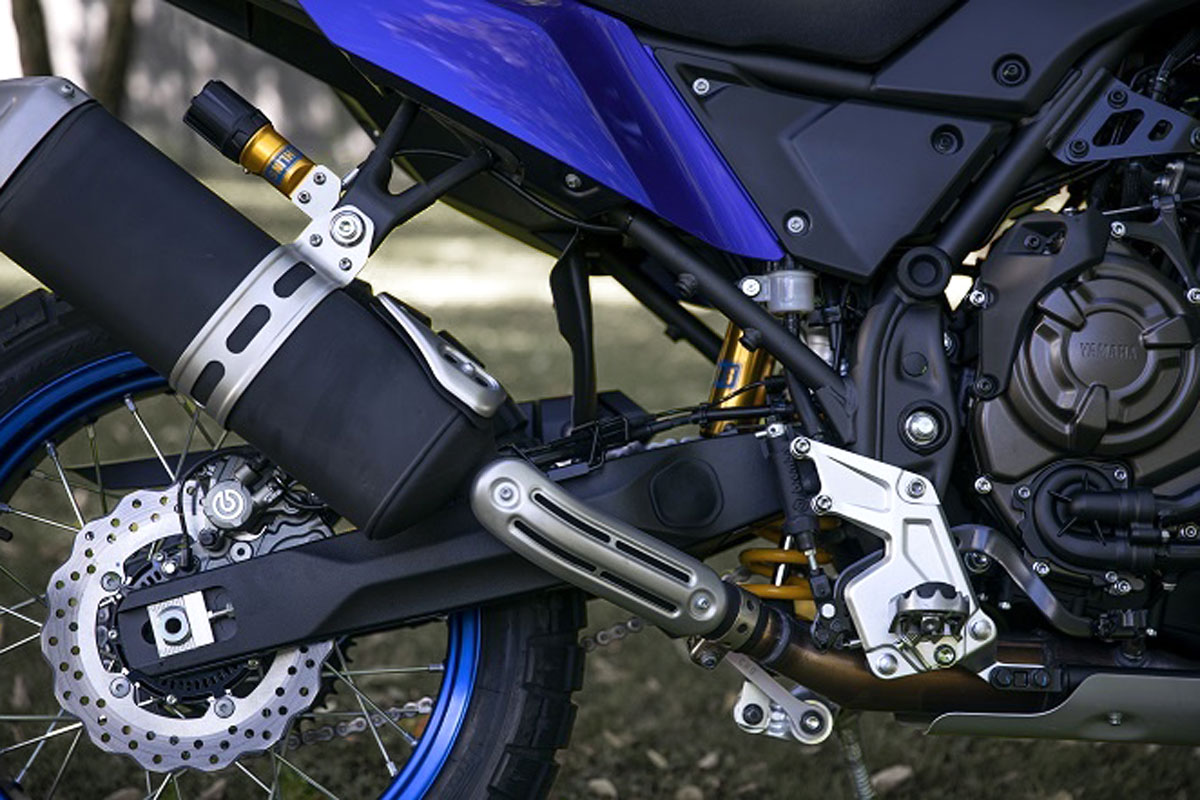

- Yamaha Tenere 700 2019 - 2024
- Yamaha Tenere 700 Rally Edition 2020 - 2024
Öhlins Racing AB
Box 722
194 27 Upplands Väsby, Schweden
info@ohlins.com
- Questionaire Suspension Setup Eng V012
- Ohlins Dtc Einbauanleitung-Ya-818-Englisch
- Ohlins Dtc Einbauanleitung-Ya-818-Deutsch
- Ohlins Dtc Bedienungsanleitung-Stossdaempfer-Road-Track-Englisch
- Ohlins Dtc Bedienungsanleitung-Stossdaempfer-Road-Track-Deutsch
- Fragebogen Fahrwerksetup Deu V012
- Ohlins Abe-Allgemeine-Betriebserlaubnis-Oehlins-Motorrad
