OTR Oil cooler Honda FMX-650, SLR-650 VIGOR, red
€169.95
Ready to ship in approx. 5 days
OTR Oil cooler Honda FMX-650, SLR-650 VIGOR, red

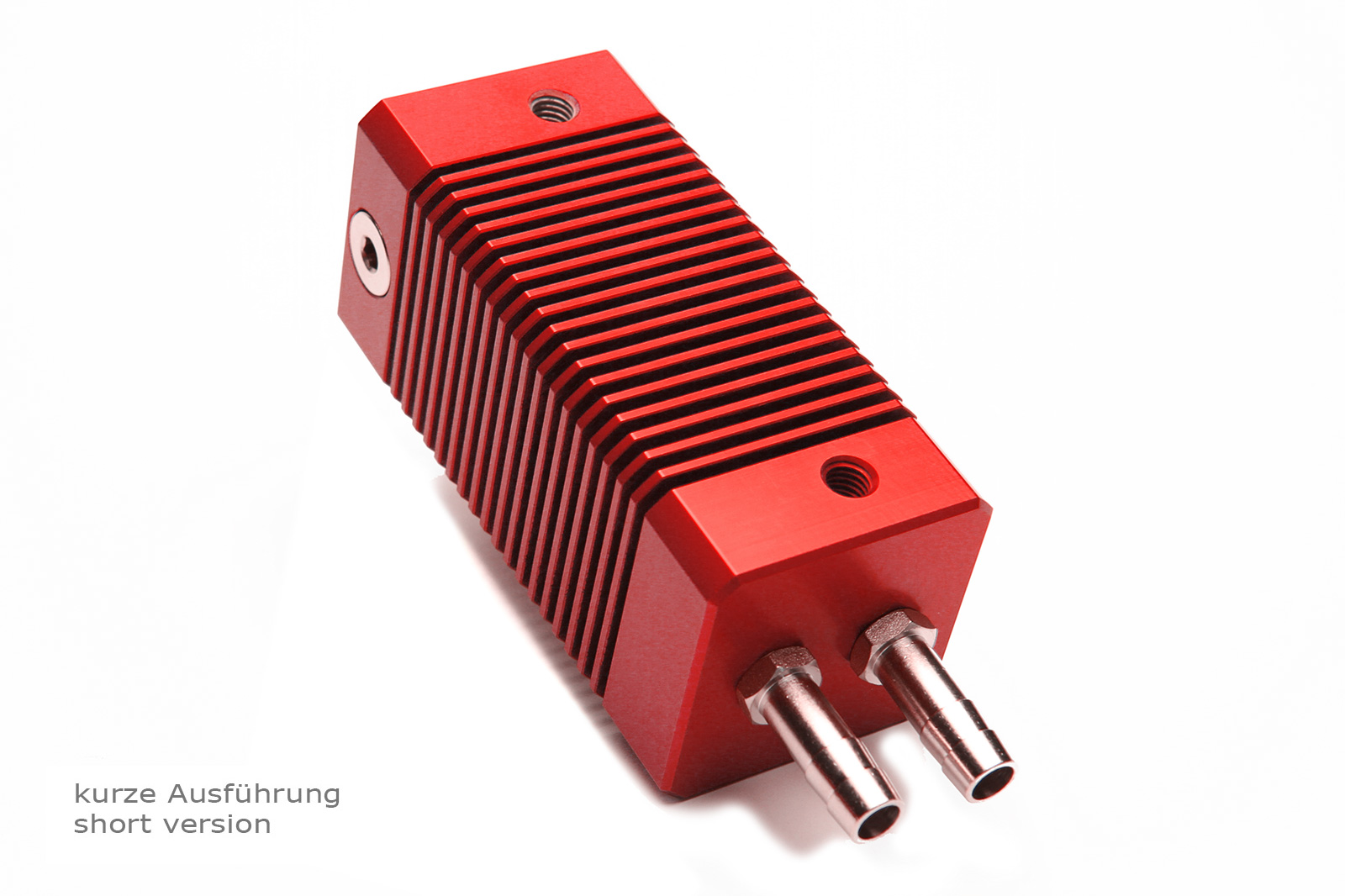

CNC-machine milled billet aluminium oil cooler for Honda FMX-650 and SLR-650 VIGOR
Our cooler, which is CNC-milled from a solid block, effectively eliminates the temperature peaks that occur with the large-volume single cylinders and thus ensures a more even temperature balance. The thermally highly stressed components such as the exhaust valves and the exhaust valve seats will thank you for this.
Unfortunately, many Honda motorbikes with air-cooled engines such as the XR 600R, XR 650L and NX650 tend to have very high oil temperatures. The critical value of around 100° C oil temperature is quickly exceeded, especially in summer or off-road use.
The cylinder head, especially the outlet valves and valve seats suffer from this high temperature.To prevent damages to this engine parts, we suggest to use a oil cooler on those bikes.
Our machine milled and anodised aluminium oil cooler is nearly undestructable. The oil coolers are avaible in different anodized colours.
Delivered with a stainless steel mounting kit, steel braided oil hose and mounting instructions.
Details:
- machine milled, anodised aluminium cool block made from 7075 aircraft aluminum
- laser cut mounting brackets
- almost indestructable
- 10 Years Warranty on the cooler block!
- avaible in various anodized colours - not shown colours on request
- including exact manual an all necessary mounted parts (screws, mount, oil hose)
- 100% Made in Germany by OFF-THE-ROAD
Fits for all:
- HONDA FMX650
- HONDA SLR650 VIGOR
OFF-THE-ROAD - OTR-Performance GmbH
Hugo-Junkers-Str. 52-54
50739 Köln, Deutschland
info@off-the-road.de
ZUBEHÖR
Ready to ship in approx. 5 days
Fitting stainless steel hose clamps for e.g. the oil thermostat of the oil cooler. For the oil thermostats you need four pieces. Price per piece
Ready to ship as of 16 August 2025
High quality manufactured oil bypass valves (thermostats) from JAGG. An oil thermostat in combination with an efficient oil cooler has immense advantages that lead to an enormous increase in the service life of your engine. The oil flow to the oil cooler is automatically regulated according to temperature. At about 85°C the thermostat starts to regulate from 'Closed' to 'Pass'. From approx. 90°C the complete cross-section to the oil cooler is released. Installation in the two oil lines to and from the oil cooler. The automatic oil cooler bypass works like a remotely controlled thermostat and directs the oil past the cooler until it has reached operating temperature. Ideal for automatically adjusting the cooling effect of an oil cooler on air-cooled single-cylinder engines. Dimensions only approx. 38×38×19mm (without connection pipe). Connections 3/8" ~9.5mm Suitable for all OTR oil cooler kits and individual applications
