OTR/TFX Shock FREELEXER with external Reservoir and hydraulic Preload Yamaha XT-660Z Tenere
€1,099.95
Delivery time see product text
OTR/TFX Shock FREELEXER with external Reservoir and hydraulic Preload Yamaha XT-660Z Tenere

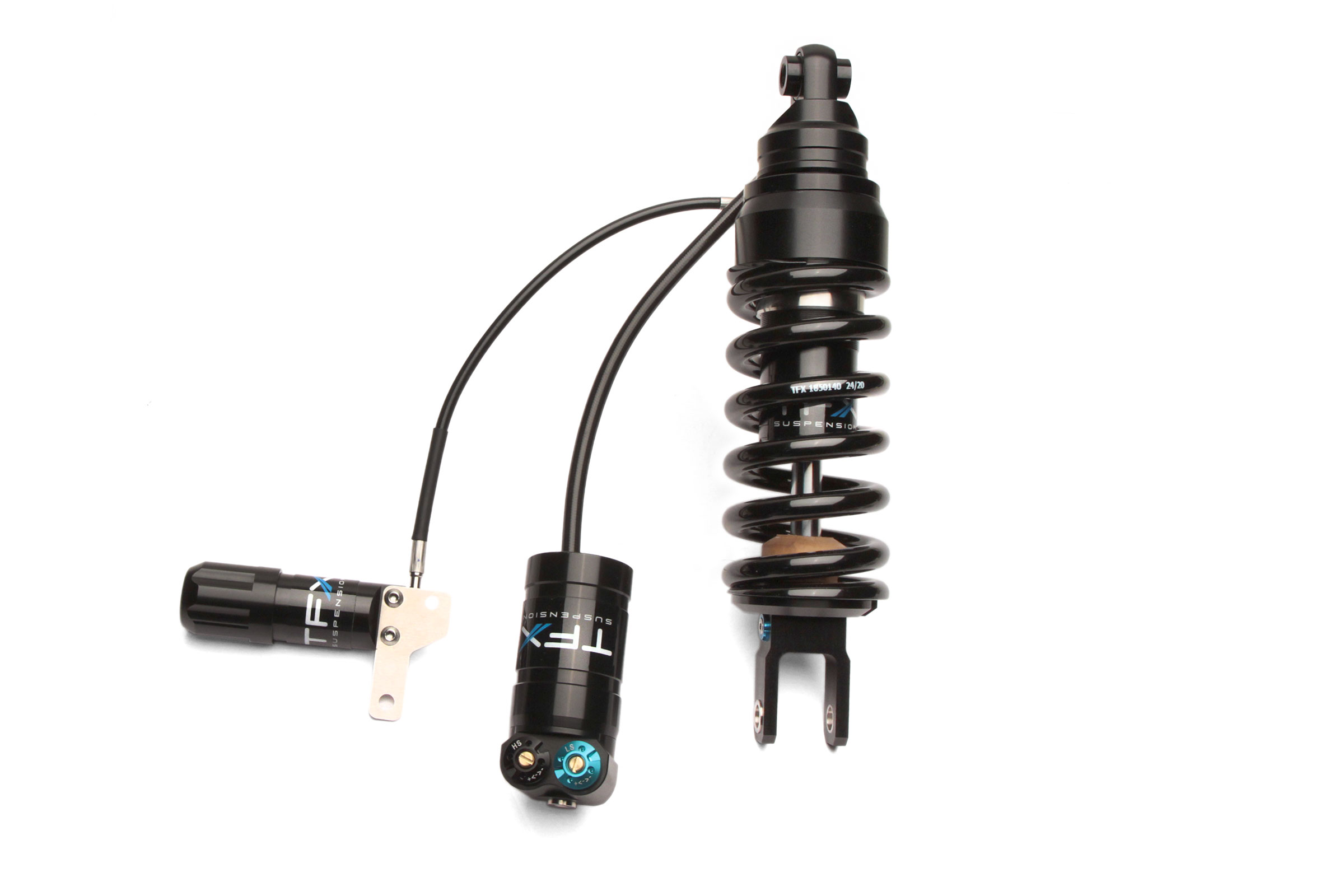

OTR / TFX FREELEXER shock Typ 141 with external reservoir and hydraulic spring preload adjuster Yamaha XT-660Z Tenere
TFX has developed a great shock for the Yamaha 660 Tenere. Special made for the needs of world traveller, rally pilots, and trail / touring riders.
Especially with the adjustable high- and low-speed compression this shock will cover all possible on- and off-road use. The TFX shocks are custom-built and are personalized to your needs and expectations. The shocks are suited for street use but also for Rally Raid and traveling. They will give you the comfort, control, safety and durability you need and ask from your shock absorbers. The shocks are engineered and manufactured from the best materials to guarantee you a shock you can rely on for many years and which will full fill your needs on the road or track.
Shocks are the connecting link between the bike and the street with a high influence in riding comfort - so do not make any compromises at this point! The shocks are custom made and personalized to your needs.
Due to the wide adjustment range of the damping and the hydraulic spring preload the set-up of the damper can also easily changed and adjusted by yourself. This shock combines great comfort, perfect damping, robustness and longevity. - so everything a good shock needs.
All TFX shocks are custom-built for each bike and each driver. That means, that you have to wait a little bit, till you get your TFX shock. But not longer than about 6-15 days (depending on seasonal requests)
The set up for each shock, the damping and rebound as well as the springs are tested on and off-road to get the best results. They are the results of true tests with the Tenere under real conditions and no guesswork!
All TFX shocks work with the "de Carbon" concept. This shock is a high pressure monotube type. The fluid is put under gas pressure and the gas and the fluid are kept

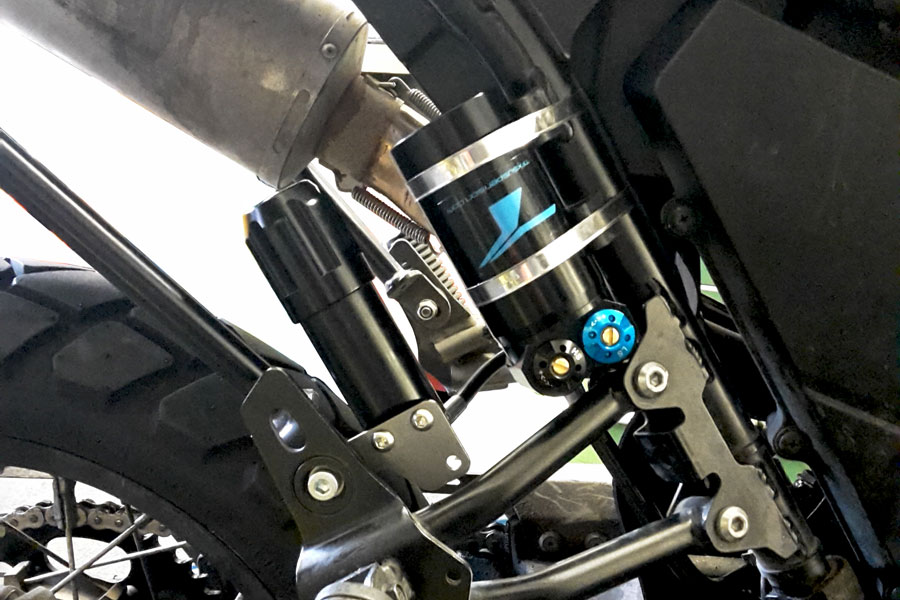

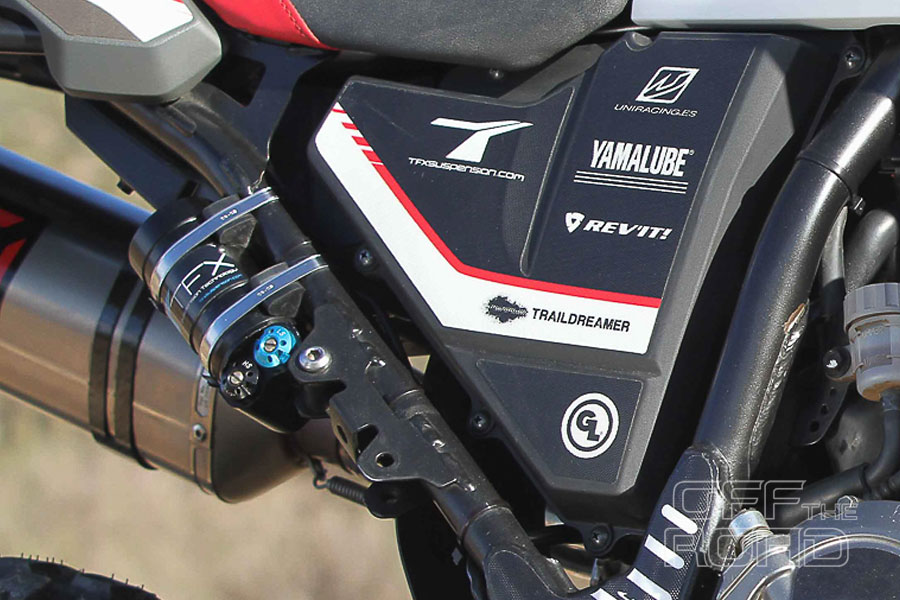

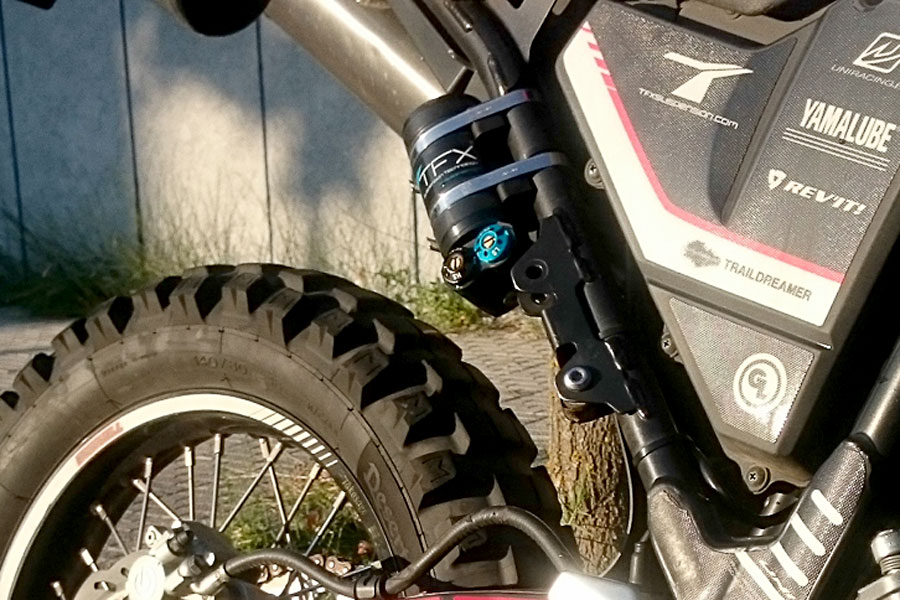

apart by a separating piston. The piston is fitted in an external reservoir. This will give you the advantage of stabil suspension work even in the worst conditions.
Also avaiable as a longer version with increased hub and travel or a shorter version to lower the bike up to 35 mm. Please ask.
Features:
- Single tube gas shock Typ 141
- Piston diameter 46mm
- Oversized 16mm high-strength shaft

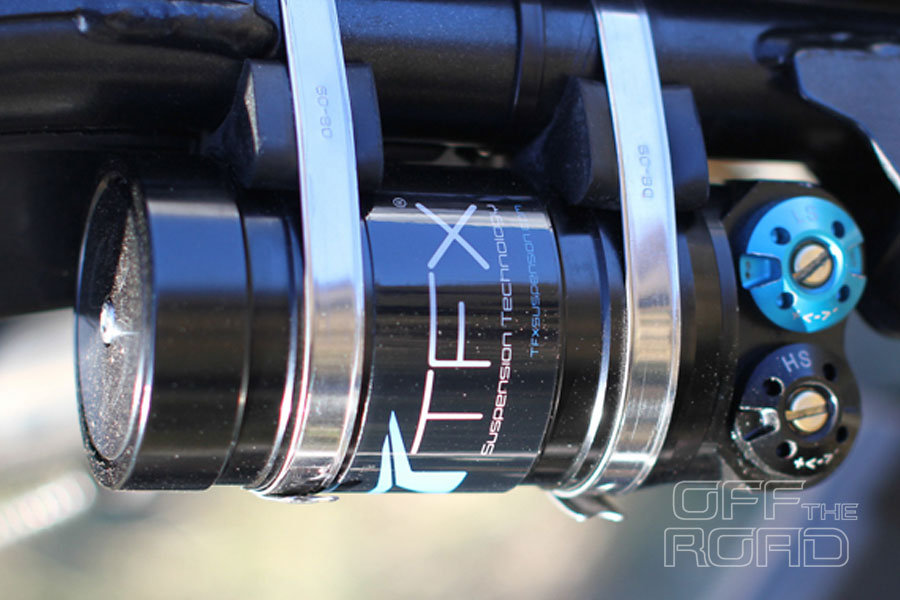

- Remote reservoir full cnc milled from 7075 aluminium
- Low-friction seal with integratet Teflon back-up
- Adjustable rebound damping 40 clicks
- Adjustable compression damping (high + low speed) 32 clicks each

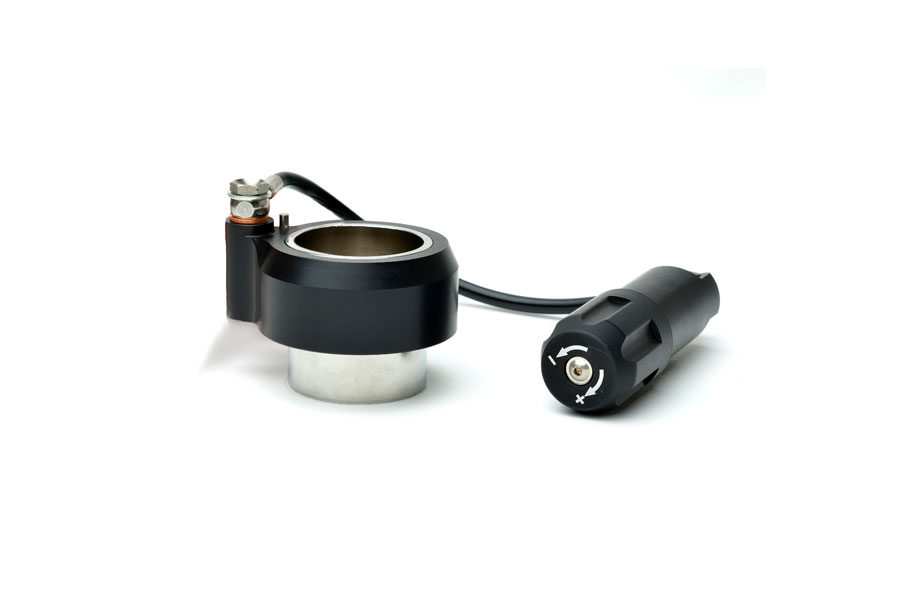

- adjustable hydraulic spring preload
- our recommendation for off-road and trail riding use with the XT660Z
- Tested and recommended by J. von Arendt (www.traildreamer.com)
Fits all:
Yamaha XT-660Z Tenere 2008-2016
Custom made after order. Please allow for a seasonal delivery time of approximately 6-14 working days.
Please fill in the questionnaire for the individual suspension setup (see Documents) and send by email after ordering.
