OTR/TFX Shock Typ 141 with external Reservoir and hydraulic Preload Yamaha XT-660ZA ABS Tenere
€1,099.95
Delivery time see product text

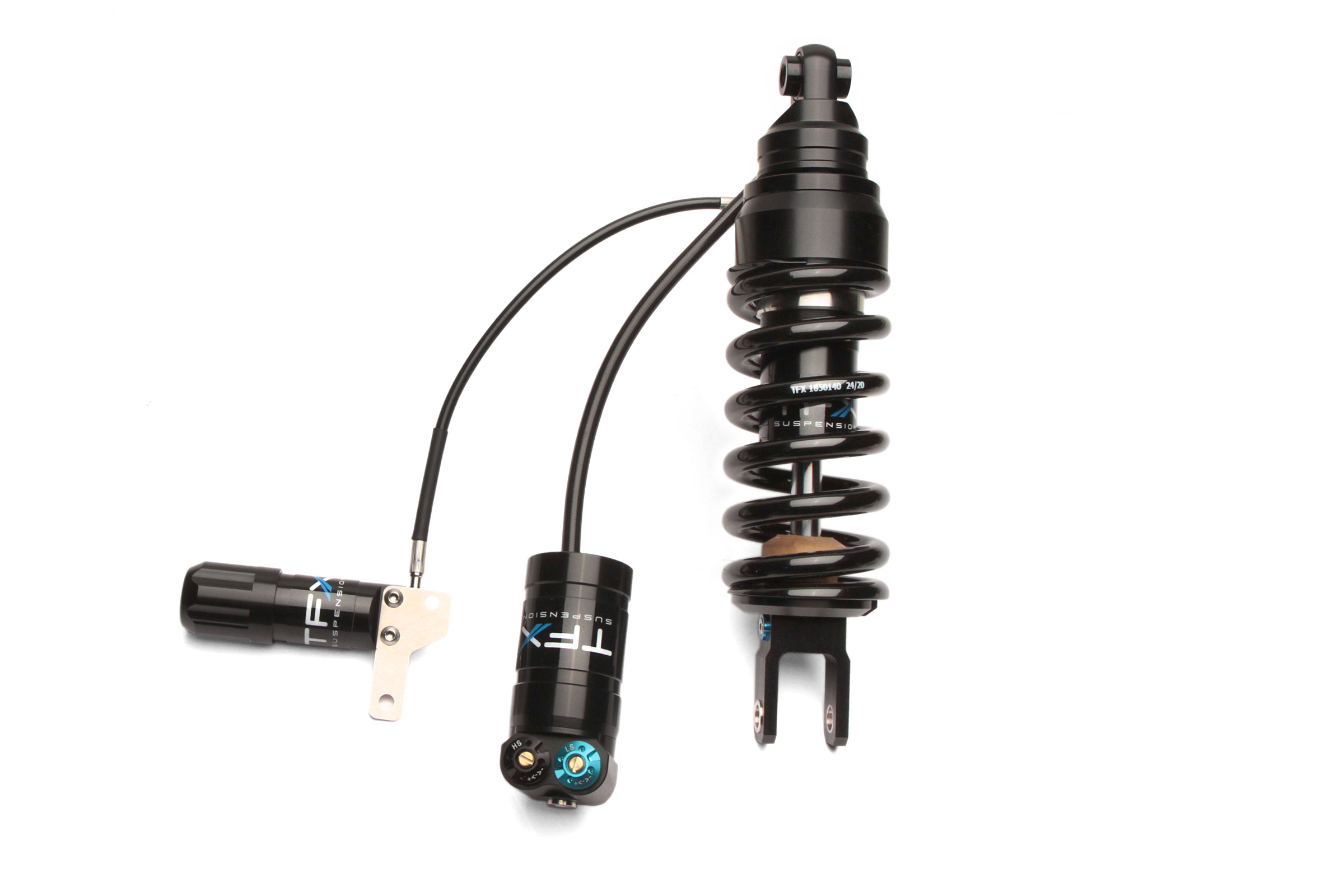

OTR/TFX Shock Typ 141 with external Reservoir and hydraulic Preload Yamaha XT-660ZA ABS Tenere
OTR/TFX Shock typ 141 with external Reservoir any hydraulich spring preload adjuster Yamaha XT-660ZA ABS Tenere
In Cooperation with TFX we have developed a great shock for the Yamaha XT-660ZA Tenere. Special made for the needs of world traveller, rally pilots, and trail / touring riders.
The TFX shocks are custom-built and are personalized to your needs and expectations. The shocks are suited for street use but also for Rally Raid and traveling. They will give you the comfort, control, safety and durability you need and ask from your shock absorbers. The shocks are engineered and manufactured from the best materials to guarantee you a shock you can rely on for many years and which will full fill your needs on the road or track.
Key features of this shock are very good quality, the adjustable compression and rebound, external reservoir and adjustable hydraulic spring preload.
Shocks are the connecting link between the bike and the street with a high influence in riding comfort - so do not make any compromises at this point! The shocks are custom made and personalized to your needs. Due to the wide adjustment range of the damping and the preload (also hydraulic when ordered) the set-up of the damper can also easily changed and adjusted by yourself. This shock combines great comfort, perfect damping, robustness and longevity. - so everything a good shock needs.
All TFX shocks are custom-built for each bike and each driver. That means, that you have to wait a little bit, till you get YOUR OTR/TFX shock. But not longer than about 6-8 days.
The set up for each shock, the damping and rebound as well as the springs are tested on and off-road to get the best results. They are the results of true tests with the Tenere under real conditions and no guesswork!
All OTR/TFX shocks work with the "de Carbon" concept. This shock is a high pressure monotube type. The fluid is put under gas pressure and the gas and the fluid are kept apart by a separating piston. The piston is fitted in an external reservoir. This will give you the advantage of stabil suspension work even in the worst conditions.
Features:
· Single tube gas shock typ 141
· Piston diameter 46mm
· Shock rod diameter 16mm
· external reservoir
· adjustable rebound damping
· adjustable compression damping (high + low speed)
· Free adjustable spring preload

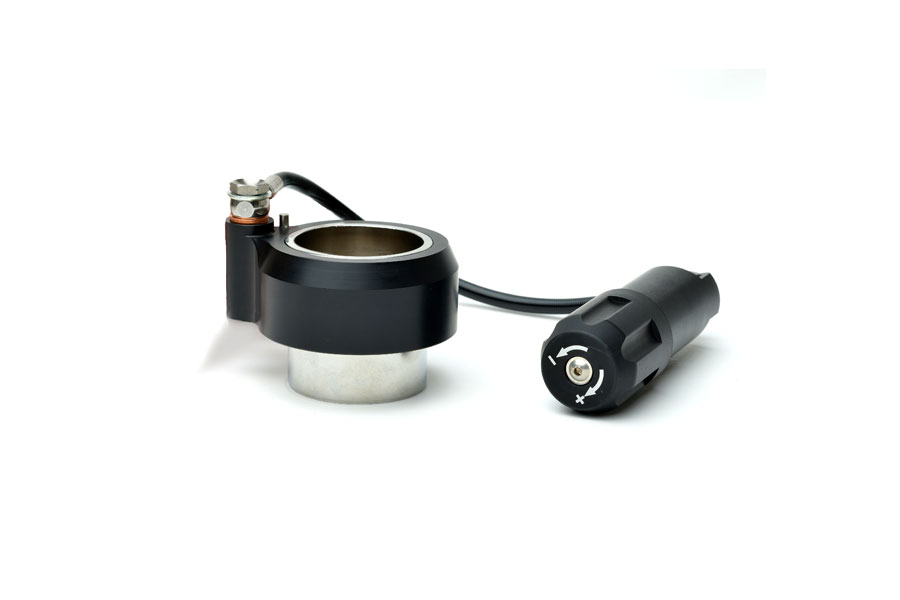

· Hydraulic spring preload adjustment possible
· our recommendation for off-road and trail riding use with the ABS Tenere
Fits all:
· Yamaha XT660ZA ABS Tenere 2011-2016.
Please add your weight including helmet, jacket, boots etc. in the text field above.
If there is an additional weight (passenger, luggage), please add this in the comments.
Anyway the shock can also later easily be adjusted with the spring preload and damping setting.
The shocks are, of course, always custom made to order. This assures that you get exact the shock and quality you expect. So please allow an delivery time of about 6-12 days, depending on season.
TFX SUSPENSION TECHNOLOGY
Uilenweg 28
6006 SK Weert, Niederlande
info@tfxsuspension.com
ZUBEHÖR
Ready to ship, est. shipping time: 1-3 workdays
OFF-THE-ROAD fork valve tuning emulatos for the Yamaha XT-660Z Tenere model range The OFF-THE-ROAD fork valves turn the Yamaha XT660's conventional fork without adjustment into an adjustable fork with adjustable compression. Due to the conversion, the fork responds more sensitively and does not immerse as strongly when braking. This results in a more controlled feeling with improved road contact. CAD developed and made of extremely light 6061 T6 aluminium. Surface anodized. Through a sophisticated system of holes in the valve, the oil flow in the fork is changed so that road contact and feedback is much more direct. The driver gains safety and feeling for the road surface. Applications: On-road, off-road, racing and touring applications. The fork valves emulators are ready adjusted for the Yamaha XT660 forks. A subsequent fine adjustment can be made by the amount of oil or other oil viscosity and directly on the valve. How it works: The OTR fork valve is inserted exactly with an adapter between piston rod and fork spring. Additional oil flow holes must be drilled in the piston rod. You find detailed instructions coming with the kit. Fine tuning of the fork valve is possible with little effort after installation by adjusting oil level, oil vicosity or adjusting the valve itself. Price per pair. Tip: a complete overhaul of the fork is recommended on this occasion. Available for: · Yamaha XT-660Z Tenere 2008-2016 · Yamaha XT-660ZA Tenere (ABS) 2011-2016
