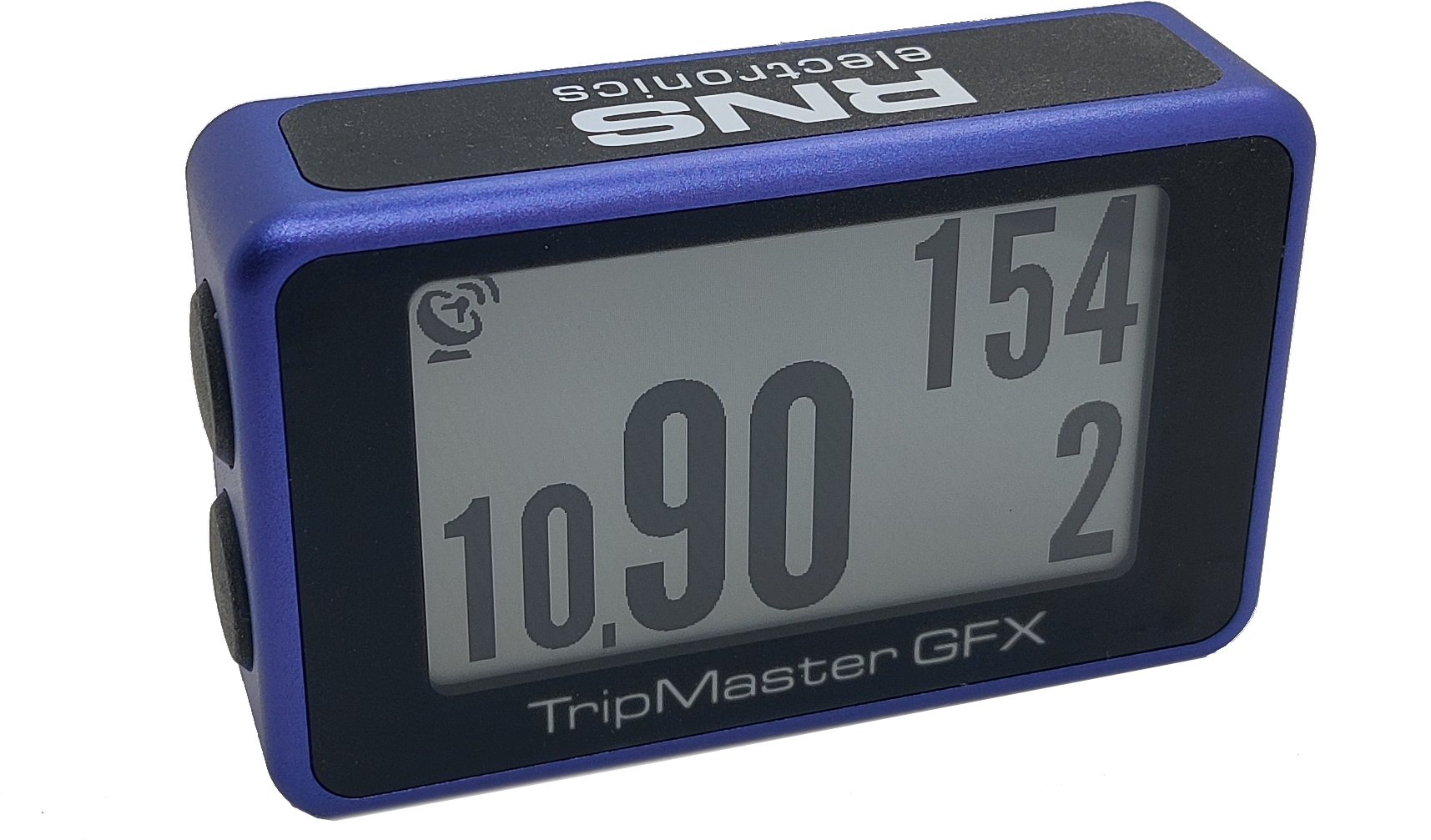

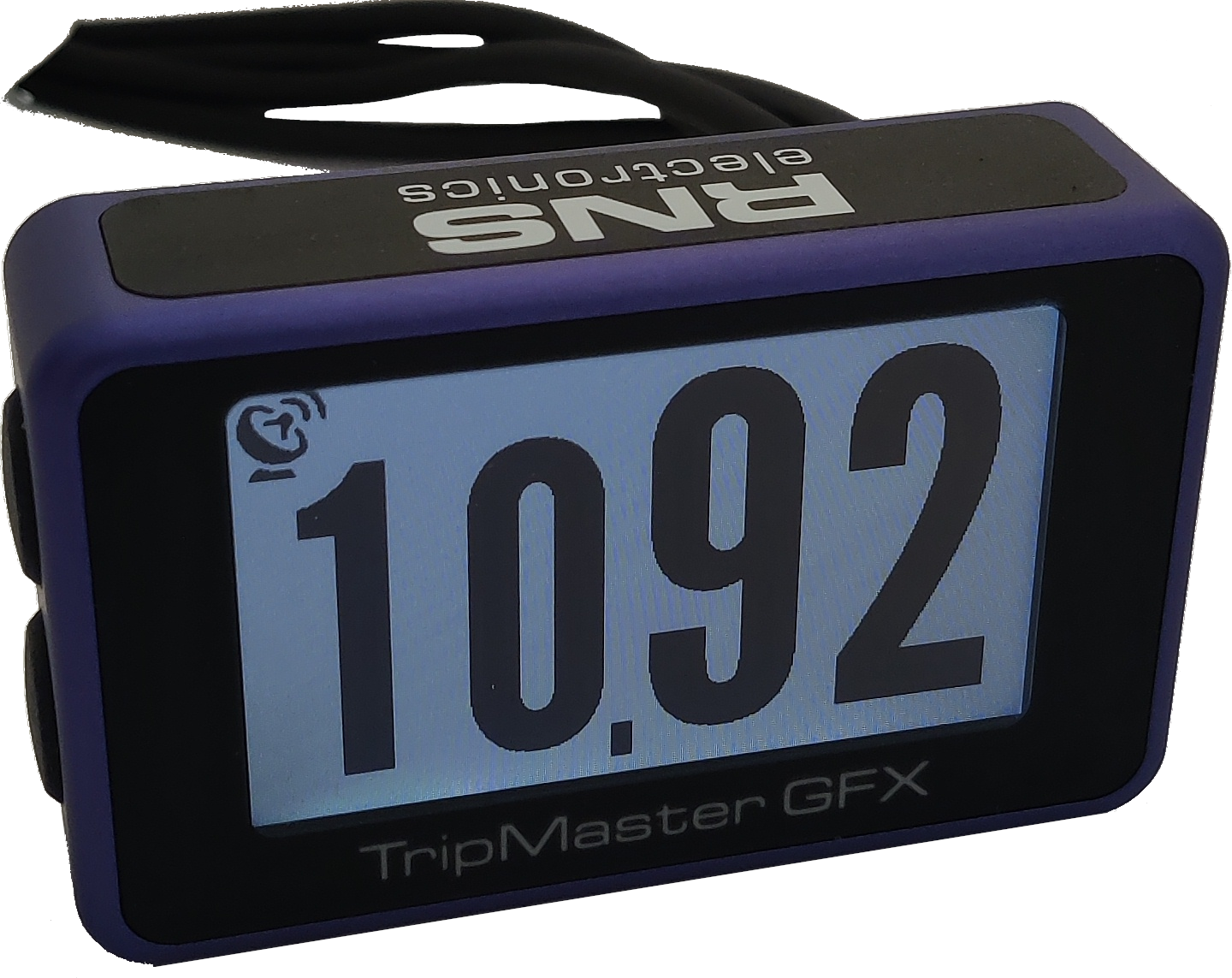

RNS TripMaster GFX v2 Pro with integrated GPS antenna
€649.95
Available, delivery time: 25 Days
Part number:
RNS-GFXV2PRO
RNS TripMaster GFX v2 Pro with integrated GPS antenna
RNS TripMaster GFX v2 Pro with integrated GPS antenna
Hardware:
- High contrast transflective graphics LCD
- 2.7” diagonal
- 400x240 pixels, 172ppi
- LED backlight
- 180° viewing angle in X+Y axis
- Perfect readability under bright sunlight and dust

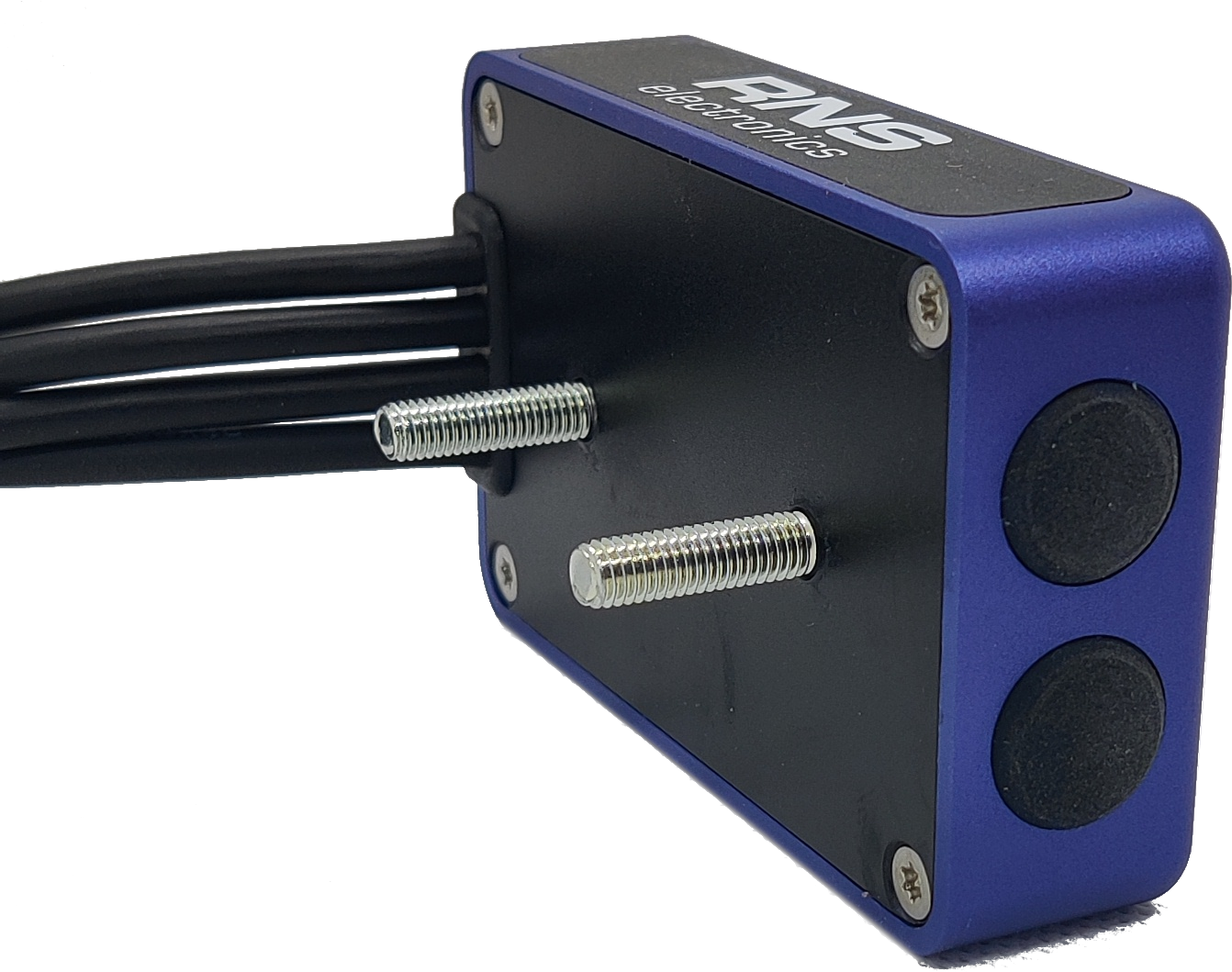

- CNC machined and anodised aluminium casing
- Internal GPS antenna + receiver

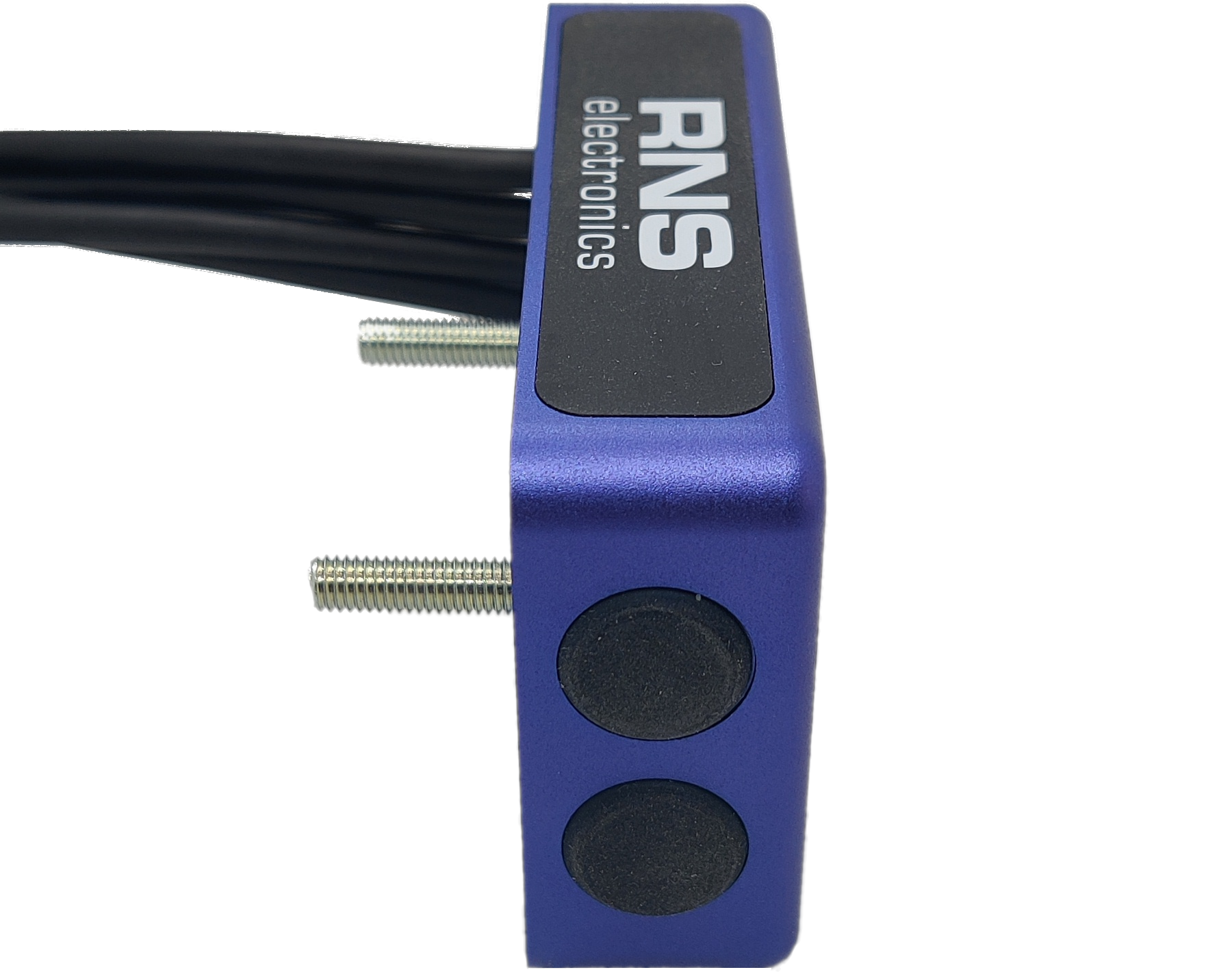

- 2 click-feedback rubber buttons on the left side for easy pressing even when wearing gloves
- Matte framed lens to limit glare
- Internal Lithium-Polymer self-charging backup battery
- 4 colour-coded cables with M8 connectors
- Water- and dustproof design
- Smaller footprint than the traditional TripMaster XL4
- Plug and Play with old cables, accessories and mounting positions
Software:
- Wheel sensor + internal GPS compatibility
- Wheel Size adjustable in millimetres
- Self-calibrating wheel size
- GPS compensation factor adjustable between -10% and +10%
- Numerous modes individually configurable
- 2x trips from wheel and GPS viewable in 10m or 100m resolution
- 2x speed displays from wheel and GPS
- Statistics for maximum and average speeds
- CAP heading from GPS
- Atomic clock from GPS with UTC offset
- Stage moving timers
- Combined screens for Trip, Speed and CAP together
- Repeater function to show waypoint information, including arrow, from a connected Garmin GPS device (cable sold separately)
- Intuitive settings menu accessible from any mode
- Transition pages with symbols and icons when switching between modes
- Lifetime and resettable oil odometers
- Invertible LCD image with dim backlight for pleasant reading in the dark
- Software updateable via USB
Included:
- Stainless-Steel Front wheel sensor (M8 screw type)
- Neodymium Magnet
- Power lead
- Mounting parts: grommets, spacers and nuts
Dimensions:
- 84 mm x 52 mm x 22 mm (WxHxD)
- 250 gram
Manufacturer:
RNS Electronics
Johannes-Dresser-Weg 9
63128 Dietzenbach, Deutschland
