Spacer for 76-E5 handlebar clamps

M10 bolt in DIN6912 version, galvanised. Suitable for our 76-E5 handlebar clamp sets. Length of the bolt corresponds to dimension L in the drawing.   Price per piece.

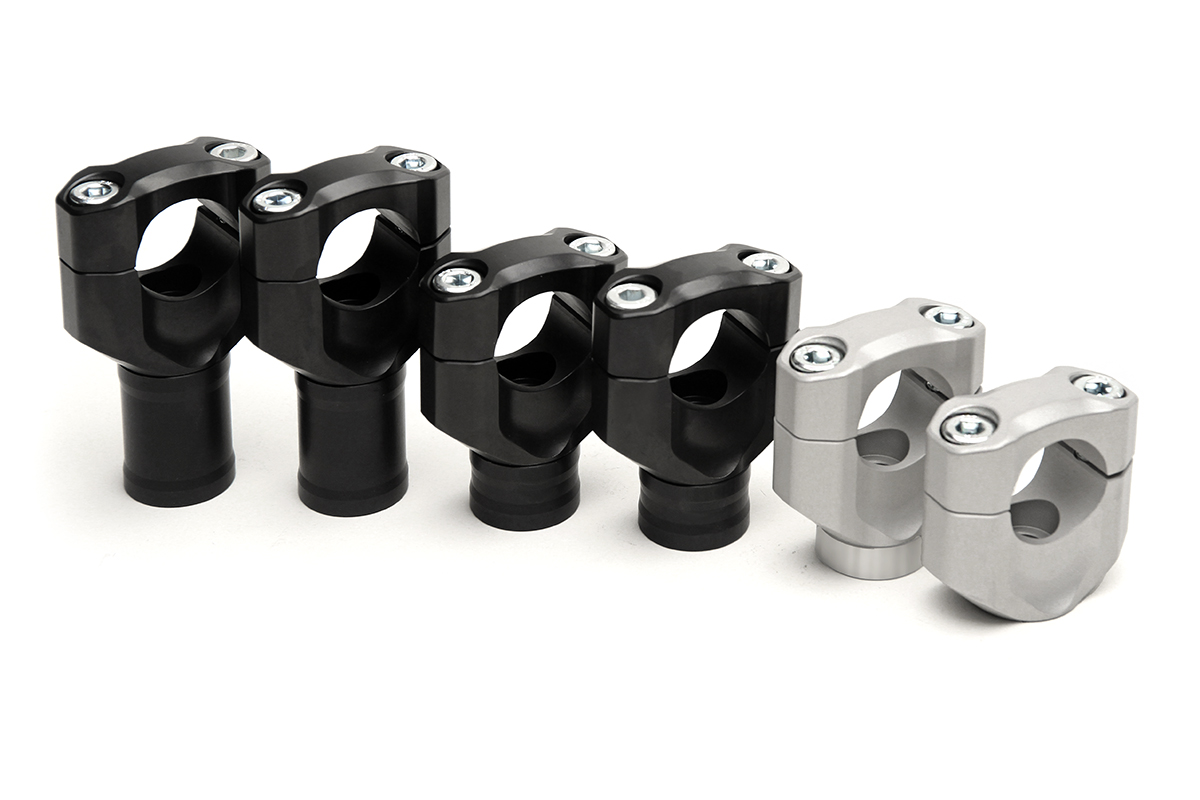

CNC machined billet aluminium handlebar clamps 'Classic' for 22 or 28 mm bars Fully CNC machined handlebar risers for 22 mm or conical 28.6 mm diameter handlebars like e.g. Rizoma, LSL or Magura. The clamp base unit has a height of 20 mm from the base of the triple clamp to lower side of handlebar. Shown heights also indicate height from upper surface of triple clamps to lower side of handlebar. By using the additional available distance bushings almost all needed heights are possible. See accessories. Bolted with a thread in the bottom of the clamps, it is not necessary to align the clamps before installing the handlebar. Made of high grade aircraft aluminium, black or silver anodised. M10 bolts used for mounting to the triple clamp. Delivered bolts are 40 mm longer than height of ordered clamps. If you have choosen a height of e.g. 50 mm, the included bolts are 90 mm long. If you need different bolt length, see accessories tab. For individually needed distance bushings see accessories.

Off-centered handlebar mounting set for 22 mm handlebars   The excentric manufacturing offers a +/-5 mm for- or backward orientated handlebar mounting positon compared to a centered position. The fully cnc machined clamping sets have a height of  30 mm (upper side of triple clamp to lower side of handlebar). By using the avaiable distance bushings almost all needed heights are possible. So if you need a total height of e.g. 50 mm, choose the handlebar clamp (30 mm height) and add a 20 mm distance bushing.   Made of high grade aircraft aluminium, black or silver anodised. For needed distance bushings see accessories. Shown bushings not included!   Supplied M10 bolts have a free length  of 40 mm. If you have e.g. a 40 mm high triple clamp, these bolts will fit. If you need longer/shorter bolts, please order separately (see accessories).   Fits e.g. Yamaha XT-660R/X, XT-660Z Tenere, TT-600 (S/E/R/RE), XT-600, XT-550, XTz-660 any many more bikes with a bolt-on clamp set and 22 mm handlebar Please measure the needed height on your bike.   Tested, maximum possible heights with stock cables and wires:   Yamaha Tenere 700            -   90 mm Yamaha XT-660Z Tenere   -   70 mm Yamaha XTz-660                 -   70 mm Yamaha XT-660R/X            -   50 mm Yamaha TT-600                   -   50 mm Yamaha XT-600                   -   50 mm Yamaha XT-550                   -   50 mm   Color: silver or black anodised Price per pair Made in Germany by OTR with 10 years warranty! Shown spacers not included in delivery

The Number 1 in Germany among the "standard" aluminium 22mm off-road handlebars. And not only as a result of the first-class manufacturing and the top finish, but also because of the included TÜV-Certificate. Sutable for a lot of Off-road, Adventure and Super-Moto bikes.   Available in four colours and three heights Very high strength due to the thick aluminium (5mm) 22 mm clamping diameter 14 mm inner diameter Bolted cross-bar Colours: blue, silver, black and titan anodised Street legal - with TUV approval   Height: low, middle-high and high
