Sprocked lock washer Yamaha 700
€12.45
Available, delivery time: 1-3 days
Sprocked lock washer Yamaha 700
Sprocked lock washer Yamaha Tenere 700

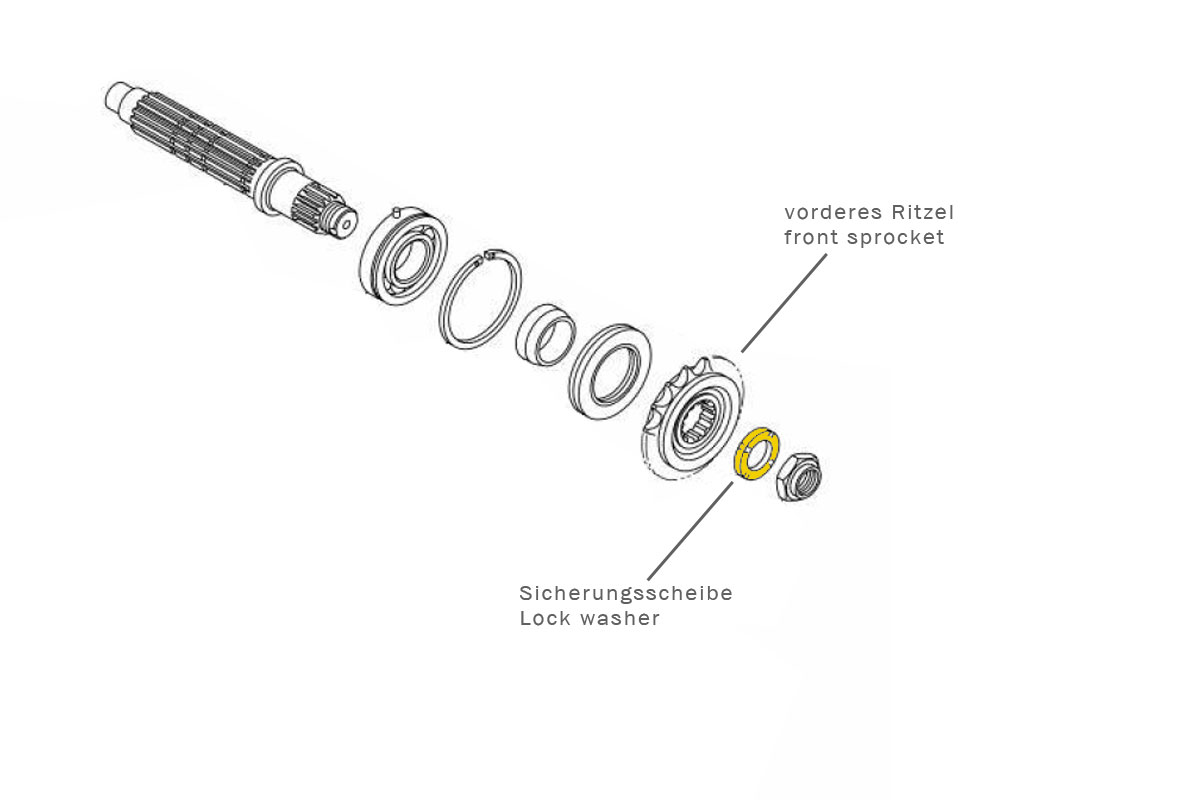

The washer to secure the front sprocket on the axle. Should be exchanged each time after loosenig of the sprocket nut.
Very good OEM quality. Price per piece.
Fits all:
· Yamaha Tenere 700
· Yamaha MT-07
· Yamaha MT-09
YAMAHA MOTOR EUROPE N.V.
Koolhovenlaan 101
1119 NC Schiphol-Rijk, Niederlande
ymnlpv@yamaha-motor.nl
ZUBEHÖR
Available, delivery time: 1-3 days
Front sprockets Yamaha Tenere 700 made of high-grade steel with 525 pitch. Made of very high quality steel, the sprockets meet the highest demands and thus satisfy OEM original equipment quality. The high tensile strength of the material guarantees a long service life. The special diamond-cut machining process is an innovative production method that achieves a significantly higher quality standard than conventional machined sprockets. Precision tools produce an optimised cutting pattern. At the same time, the sprocket is highly strengthened in the tooth flank area. Only the highest quality steels are used to ensure a consistently high quality to industrial standards. The pinions are machined exclusively on state-of-the-art CNC automatic lathes. Diamond-cut teeth and a case hardening of 700 HV 40 at an insert depth of 0.4 mm meet the highest quality standards. Thanks to modern broaching machines, our pinions guarantee an exact fit on the drive shaft with a radial and axial run-out tolerance of less than 0.1mm. The original transmission ratio is 15 / 46. Please keep in mind, that you may need a longer chain when using a considerably shorter transmission ratio. For 15/48, for example, you need two additional chain links, while 15/46 still works with the original chain. 525er pitch - to be used with the oem size 525 chains and sprockets Fits all: Yamaha Tenere 700 2019 onwards Yamaha Tenere 700 Rally 2020 onwards Yamaha Tenere 700 World Raid 2022 onwards Yamaha Tenere 700 World Rally 2023 onwards Yamaha Tenere 700 Extreme 2023 onwards Yamaha Tenere 700 Explore 2023 onwards
Available, delivery time: 1-3 days
Sprocked lock nut Yamaha Tenere 700 The lock nut to secure the front sprocket on the axle. Should be exchanged each time after loosenig of the sprocket nut. Very good OEM quality. Price per piece. Fits all: · Yamaha Tenere 700 · Yamaha MT-07 · Yamaha MT-09
