Steering damper kit Scotts/OTR Yamaha Tenere 700, for OTR triple clamps only
€809.95
Ready to ship, est. arrival: 1-2 workdays
Steering damper kit Scotts/OTR Yamaha Tenere 700, for OTR triple clamps only
Steering damper mounting kit OTR with Scotts steering damper Yamaha Tenere 700and OTR cnc triple clamps

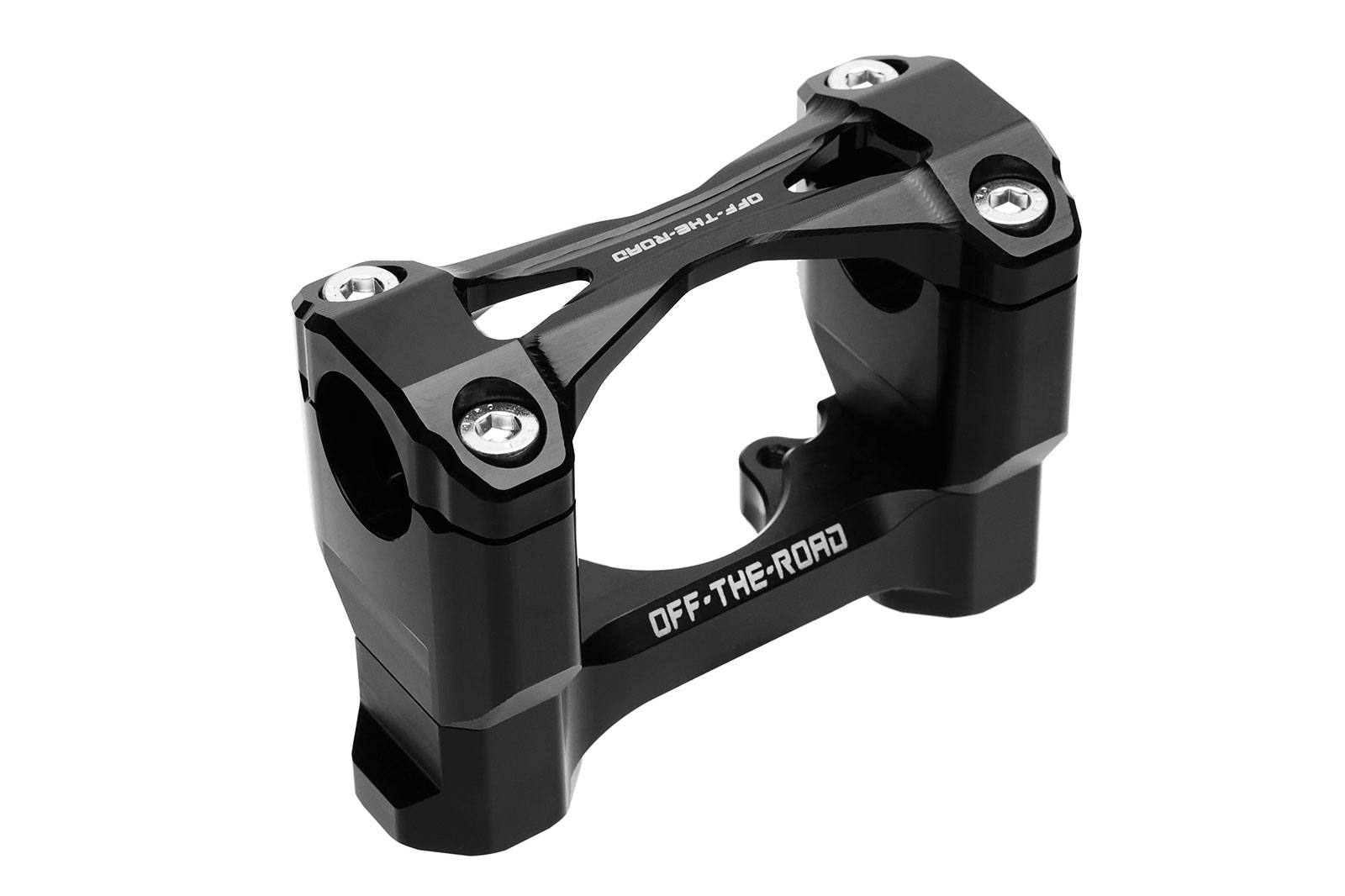

Our CNC-machined handlebar clamp set with mounting option for a Scotts steering damper combines extreme torsional rigidity with simultaneous mounting flexibility.
The handlebar position can be varied +/- 5mm forwards/backwards. It can also be combined with our handlebar riser for the Tenere 700. This allows the handlebars to be raised by 20 or 30 mm.
The kit is also available with the matching upper clamping plate for mounting additional navigation equipment or the original speedometer unit. See part number LDK-OTR-T700-SC-NAV

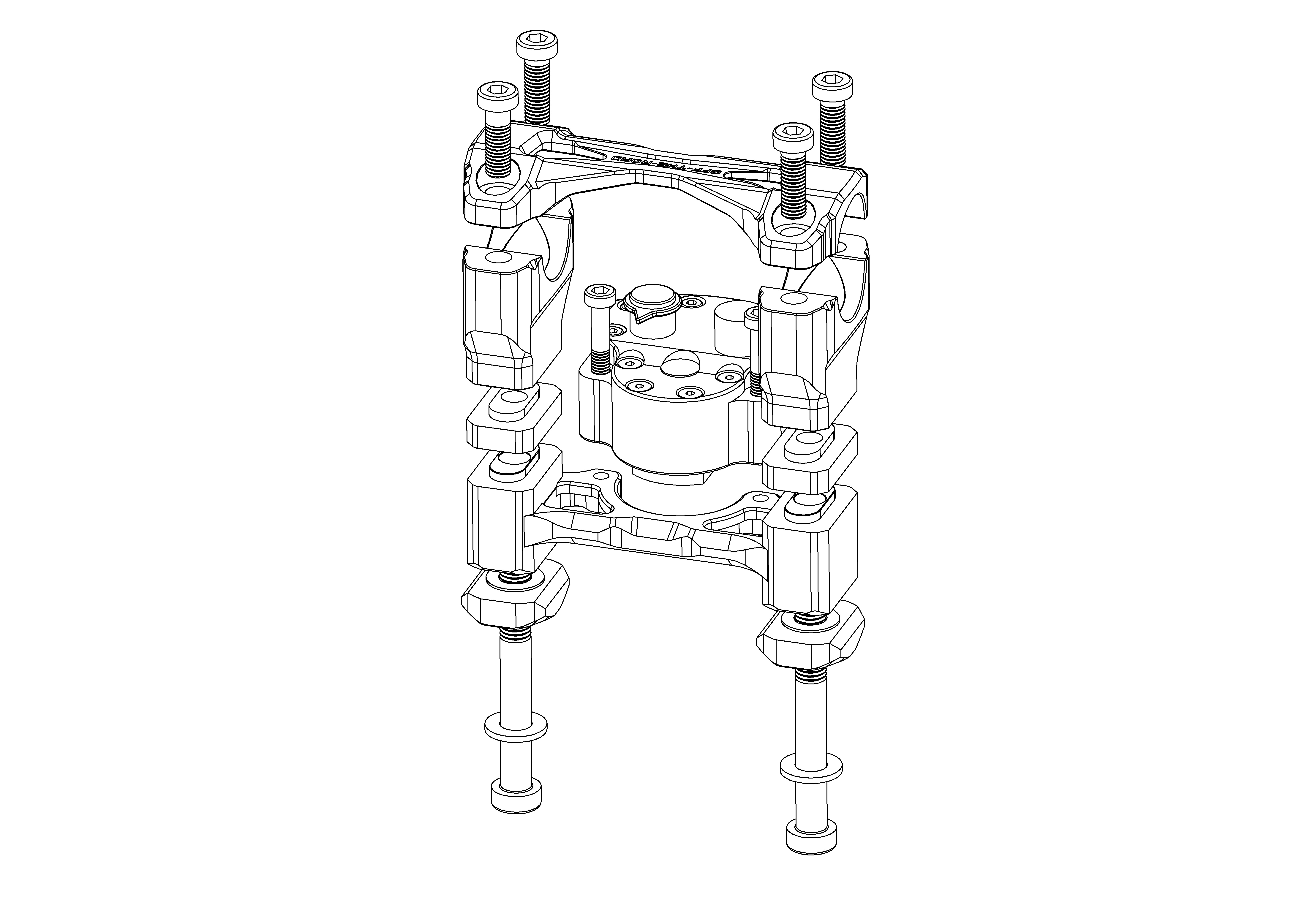

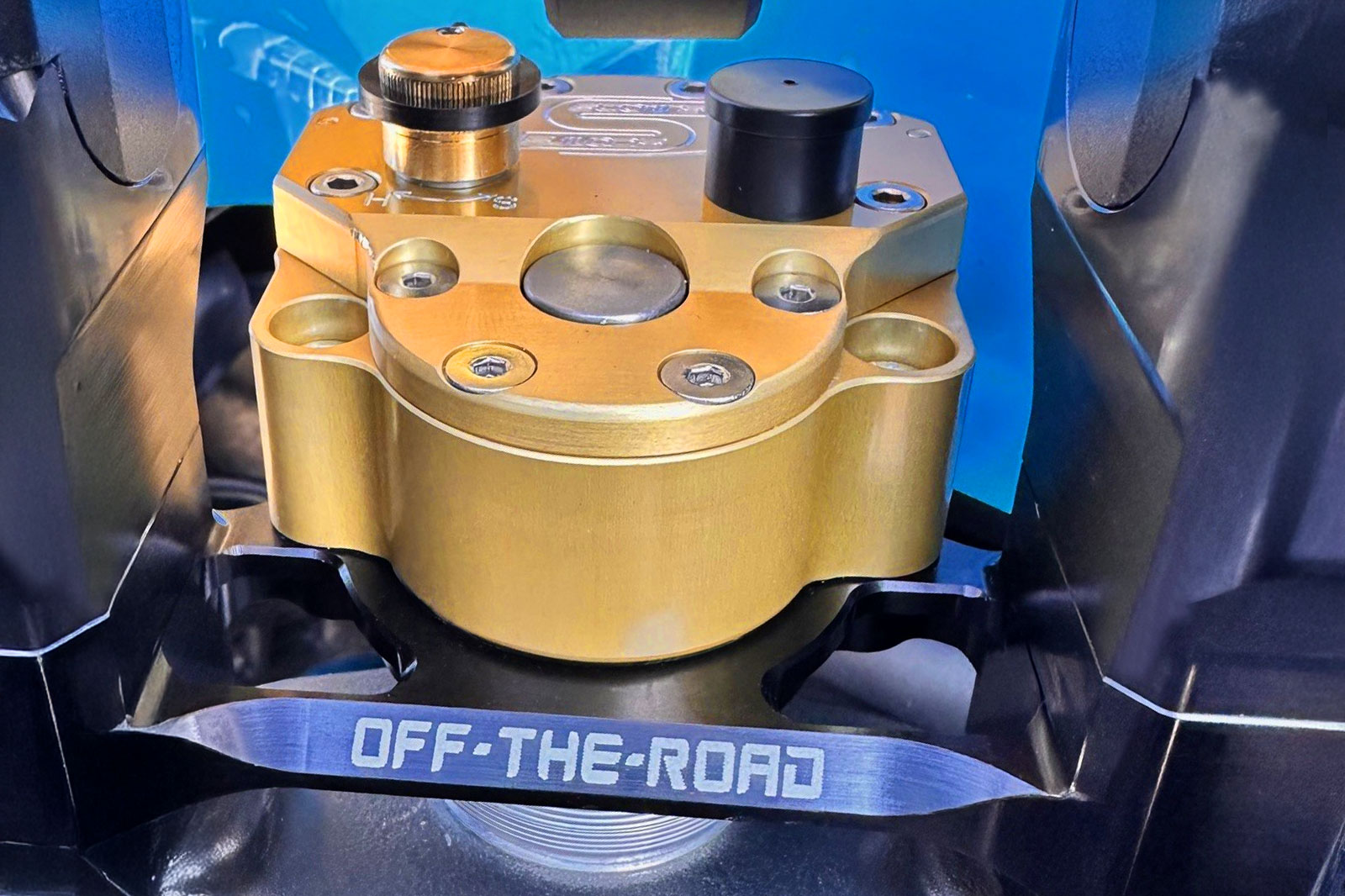

The steering damper is mounted below the new handlebar clamps on a CNC-machined holder.
Thanks to an additional eccentric design of the handlebar clamps, the handlebars can be mounted in the original position or 10 mm further away from the rider. The offset handlebar position is particularly advantageous when riding at a slightly faster pace and puts more pressure on the front wheel.
All parts are milled from solid material on our modern CNC machines. We only use extremely tough aerospace aluminium 7075 T6 as a material
The surface of all components is anodised black for protection.
The mounting kit on the fork bridge and the counterholder are completely bolted, no welding is required! Complete dismantling is possible without any problems.

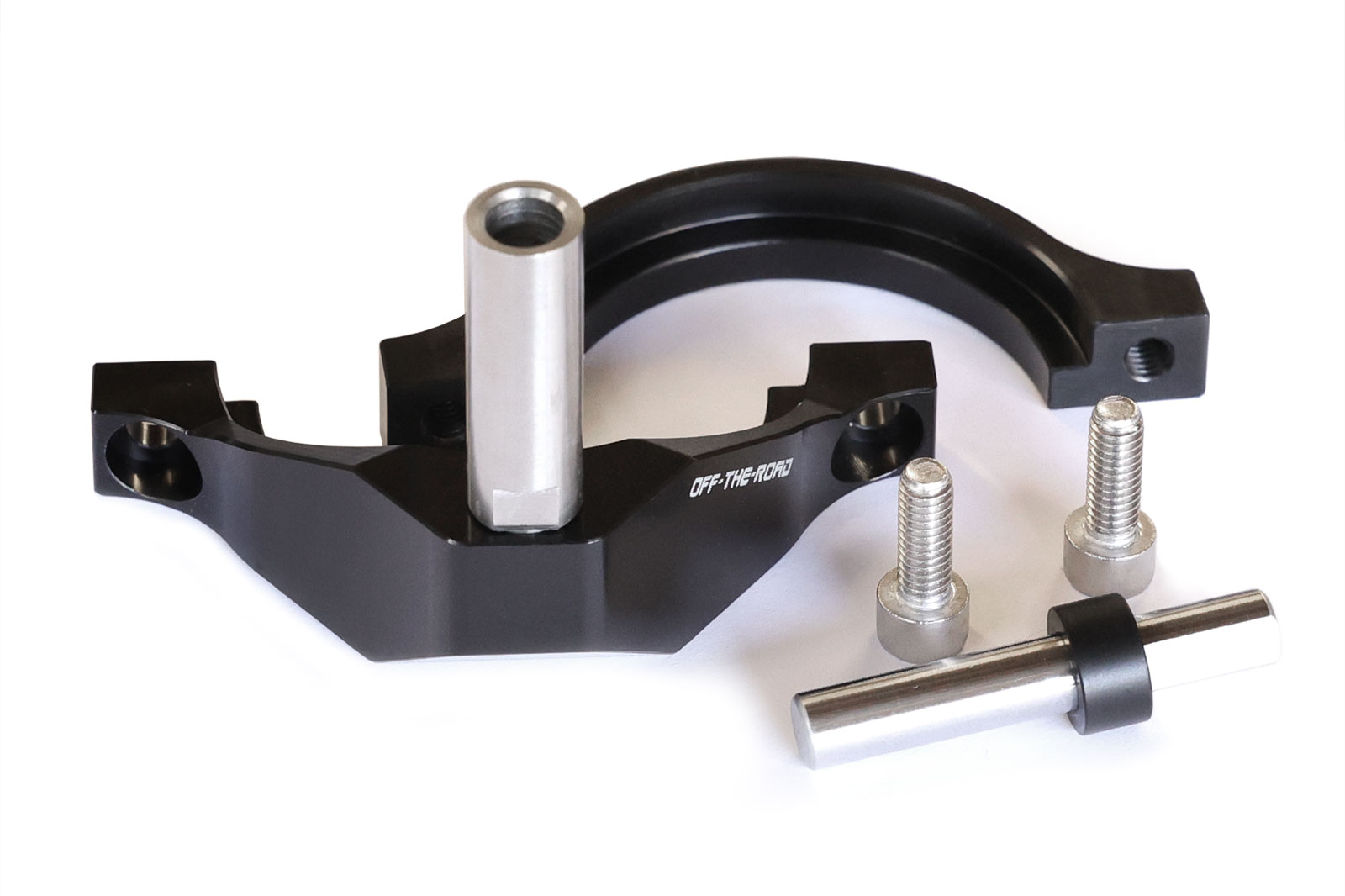

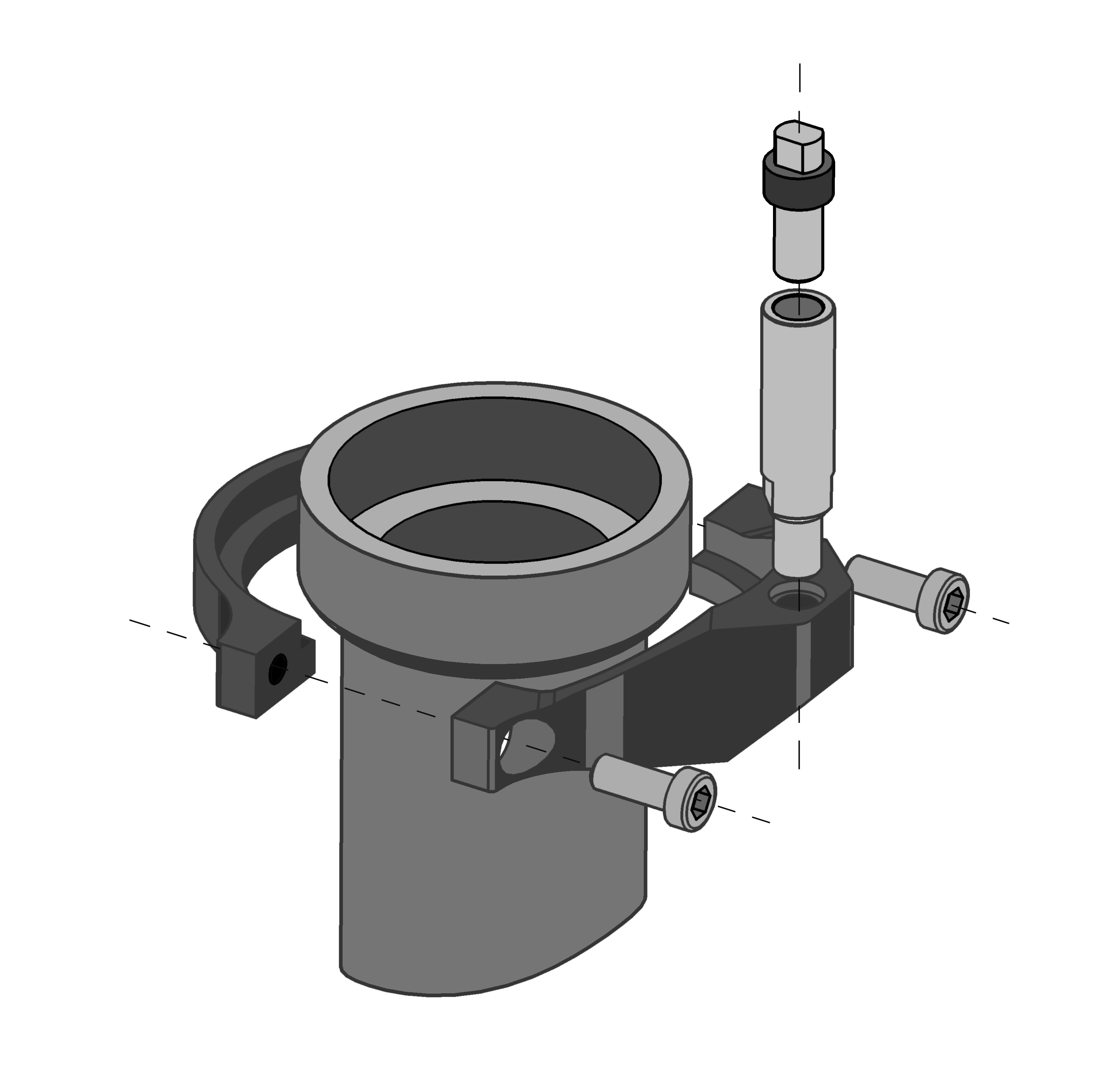

The nickel-plated steel counter bracket, which is also milled and bolted to the frame, is available separately. See accessories

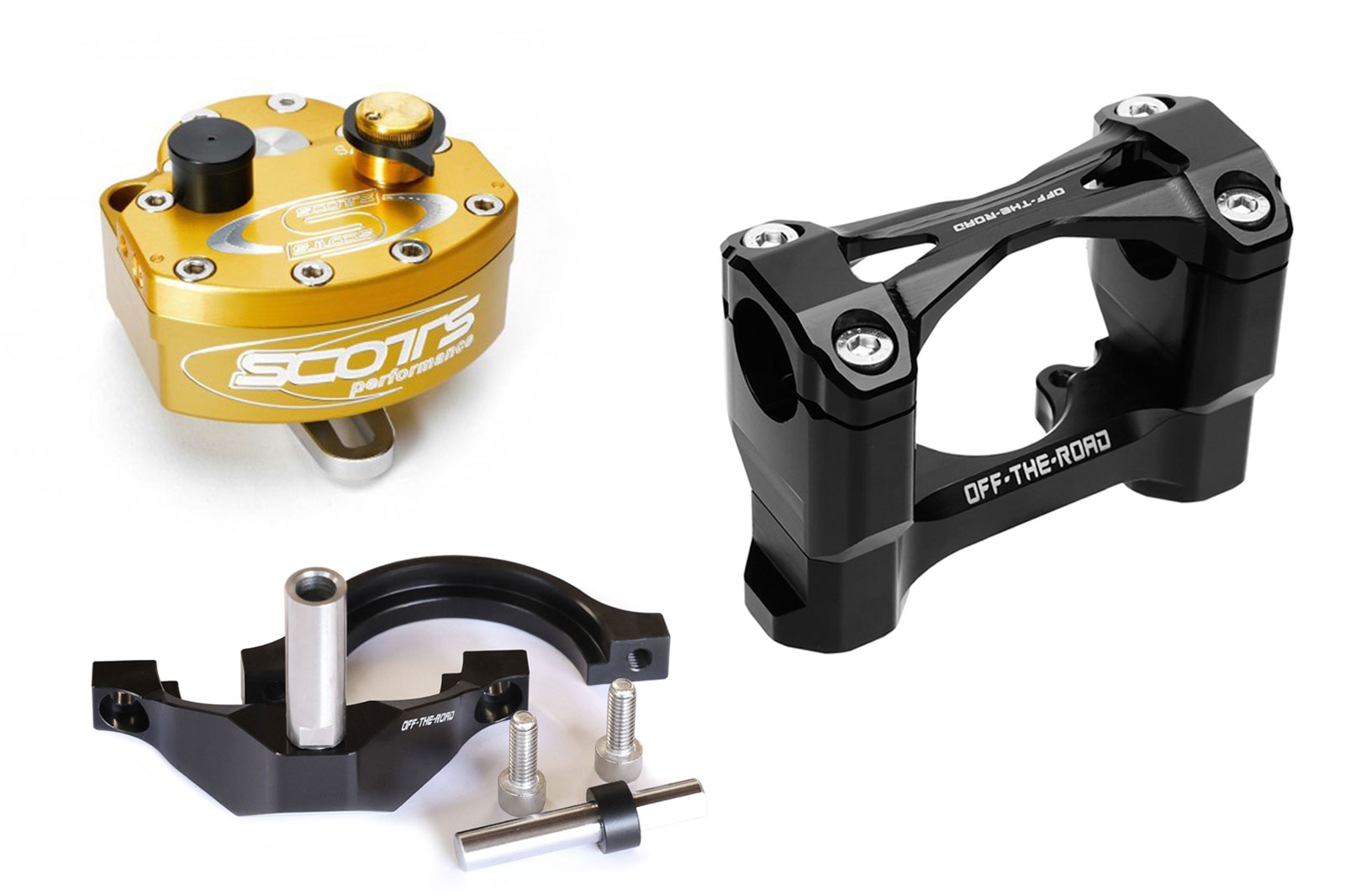

Scope of delivery:
- Scotts Performance steering damper, off-road type
- fits OTR cnc machined triple clmaps only
- OTR milled 4-piece handlebar clamp set with steering damper mount, black anodized
- OTR 3-piece frame clamp set
- adapter OTR triple clamp
- Screw set
- Assembly instructions
Details:
- Scotts steering damper, off-road type
- for OTR triple clamp set
- handlebar position same as OEM position
- Handlebar can be raised by using additional spacers (see accessories)
- cnc machined handlebar clamps 28.6mm diameter, black anodised
- cnc machined frame clamps
- all needed mounting parts, bolts
Fits all:
- Yamaha Tenere 700 2025 onwards
- Yamaha Tenere 700 Rally 2025 onwards
- Yamaha Tenere 700 2019 - 2024
- Yamaha Tenere 700 Rally 2020 - 2024
- Yamaha Tenere 700 Extreme 2023 - 2024
- Yamaha Tenere 700 Explore 2023 - 2024
OFF-THE-ROAD - OTR-Performance GmbH
Hugo-Junkers-Str. 52-54
50739 Köln, Deutschland
info@off-the-road.de
Accessories
Ready to ship, est. arrival: 1-2 workdays
CNC machined aluminium handlebar risers Yamaha Tenere 700 The risers were specially designed for the Tenere 700. The contour of the risers follows exactly the look of the original handlebar clamps. Thus, there is no unattractive protrusion between the risers and the original handlebar clamps, than with other similar risers sets. Made of very tough aircraft aluminium 7075 T6 with a high-quality adonisation in black for a perfect colour match. Especially in combination with the higher Tenere 700 Rally seat the risers are the perfect upgrade for taller rider or if you do long distance rides in standing position, this risers will give you much more comfort and better ergonomics. CNC machined in Germany by OTR with 10 years warranty! Facts: 20 or 30 mm height available CNC machined Made of high grade aircraft aluminium Black anodised Will fit with stock length of cables and hoses Made in Germany by OTR 10 years warranty Scope of delivery: 2 risers black anodised 4 bolts Mounting instructions Fits all: Yamaha Tenere 700 2025 onwards Yamaha Tenere 700 Rally 2025 onwards Yamaha Tenere 700 World Raid 2026 onwards Yamaha Tenere 700 2019 - 2024 Yamaha Tenere 700 Rally Edition 2020 - 2024 Yamaha Tenere 700 Extreme 2023 - 2024 Yamaha Tenere 700 Explore 2023 - 2024 Yamaha Tenere 700 World Raid 2022 - 2025 Yamaha Tenere 700 World Rally 2023 - 2024
Ready to ship, est. arrival: 1-2 workdays
Riser set for OTR steering damper bracket, 10 mm, black CNC-machined spacers with a height of 10 mm for our rally handlebar clamp sets. Ideal for raising the handlebar position. Scope of delivery: Milled spacer set, black anodized 2 spacers are supplied Please order longer screws according to needed height - see accessories tab Assembly instructionsMounting Instructions Fits all: OTR steering damper / handlebar clamps
Ready to ship, est. arrival: 1-2 workdays
Scotts Damper Rebuild Kit Includes: 1x 0338-14 O-Ring 1x 0338-55 O-Ring 1x 0338-57 O-Ring 2x 0338-58 O-Ring 1x 0338-59 O-Ring 2x 0338-56 O-Ring 2x 1027-02 Main Seal 1x 4009-01 Shear Pin
Ready to ship, est. arrival: 1-2 workdays
Scotts Main seal (requires 2 pcs) Price per piece
Ready to ship, est. arrival: 1-2 workdays
Scotts Stabilizer Fluid / Oil
Ready to ship, est. arrival: 1-2 workdays
Scotts Bullet Tool If you want to service your own stabilizer, you will need this tool! Made from aluminum, this tool is necessary for installing the main shaft through the stabilizer seals without damaging them. The tool allows the seal to gently expand as it passes over the edge of the main shaft making installation a breeze.
Ready to ship, est. arrival: 1-2 workdays
Scotts Link Arm Puller Tool The link arm can be mounted in two different positions depending on your application. A lot of Enduro riders using the computer prefer the stabilizer to be mounted opposite of the standard position in order to accommodate an area for the computer. The Link Arm Puller allows you to remove and replace the link arm without damage to the seal area on the bottom of the stabilizer. The Puller is also essential for those of you who plan to service your stabilizer yourselves. *The steering damper shown is not included
Spare Parts
Ready to ship, est. arrival: 1-2 workdays
Scotts Steering Damper, off-road type, stepped arm, LKM-4032-35, -5mm, open The Scotts Performance steering damper unit is a compact, fully adjustable, hydraulic shock absorbing damper that mounts to your steering head area right above your handlebar mount. By helping to stabilize the front end of your motorcycle, the rear of the motorcycle will track straighter allowing the rest of your suspension to work the way it was designed to. In addition, the Scotts Steering Stabilizer eliminates that sudden "thrust" affect of having the handlebars pulled from your hands after unknowingly hitting something unforeseen like rocks, tree roots or rain ruts. It has also helps to minimize rider fatigue and the dreaded arm-pumping situation that occurs while wrestling the front end of your bike. Once mounted, it dramatically reduces the unwanted phenomenon known as "Head-shake" that is commonly found on ALL off-road production motorcycles. This is more predominant now a-days due to the steeper head angles you find on production bikes. It helps keep your motorcycle going straight in the whoops and smoothes out those rough sections by preventing those handlebar wrenching jolts. Scope of Delivery: 1 x Scotts Steering Damper 1 x Link arm stepped LKM-4032-35, stepped, -5mm, open
