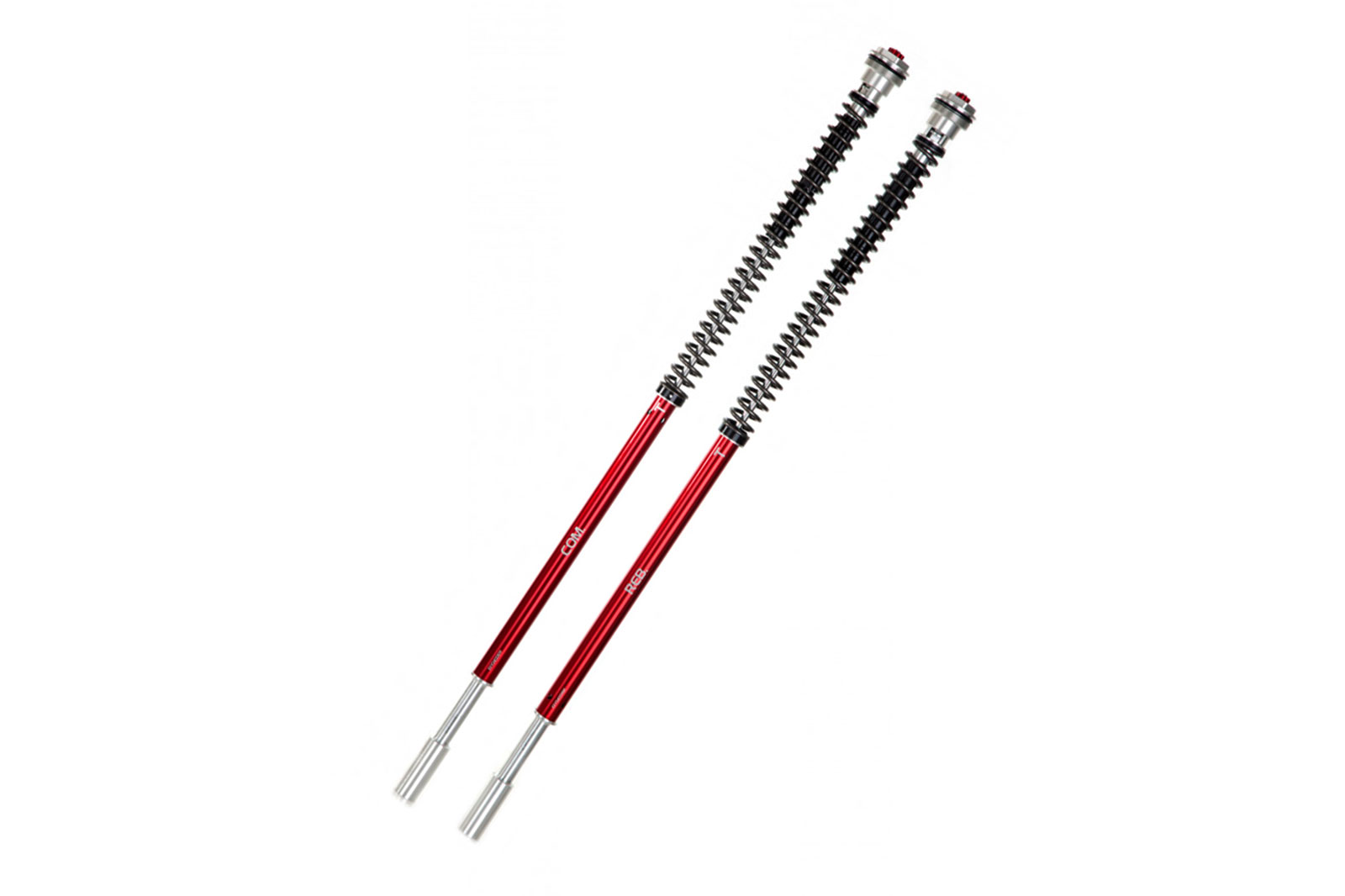

YSS Cartridge Kit Z1 Yamaha Tenere 700

YSS Z1 hydraulic front fork Cartridge Kit Off-Road / Street Yamaha Tenere 700

YSS Fork Cartridge Kits are a comprehensive replacement cartridge to fit the original equipment front forks.
Rebound and compression adjustable hydraulic fork cartridge kit with OEM fork travel. Overall travel is 210 mm. Free adjustable 16 mm spring preload.

The  Teneres 700 front fork is, unfortunately, not one of the perfect ones. Especially in faster riding you easily recognize that the damping is on the wrong side. If you wanted to adjust this mess, till now you have to completely overhaul the fork and adjust damping. That is costy and really a lot of work and often does not lead to the needed results.

With this 20 mm piston cartridge kit you can now upgrade your standard 43 mm Kayaba Tenere fork to a fully adjustable including adjustable spring preload!

Adjustable compression and rebound and adjustable spring pre-load.

The cartridge is equipped with a sophisticated hydraulic system that ensures the adjustment in compression, extension and preload of the spring, with adjustments placed directly on the upper cap of the cartridge in order to guarantee easy access to the set-up.

Mounting requires technical knowlegde, technical skills and tools. Do to this we recommend that the conversion be carried out in a specialist workshop.

We offer to do the conversion of the fork here in our workshop. Exchange of all wear parts and oil included included. Please ask for a quote.

Facts:

• Fork travel 210 mm like oem
• 24 clicks compression and rebount adjustment
• Spring rate: 6.00 N/mm - no other spring rates available
• 20 mm piston
• 8 mm piston rod
• 16 mm preload adjustment
• Hydraulic end-stop
• Adjustment in: Hydraulic compression and rebound and spring preload.
• Improves stability, control and precision
• Increased safety and performance
• Settings and adjustments are located on the top cap of the cartridge. Possibility of choosing settings according to rider's needs and weight.
• Needed oil not included (recommended: SAE 5 -1.3 liters) See accessories.

Fits for all:

• Yamaha Tenere 700 2019 onwards
• Yamaha Tenere 700 Rally 2020 onwards

Does not fit Yamaha Tenere 700 World Raid / World Rally or Extreme
