Handlebar Clamps off-centered 22 mm
€74.95
Available, delivery time: 1-3 days
Handlebar Clamps off-centered 22 mm

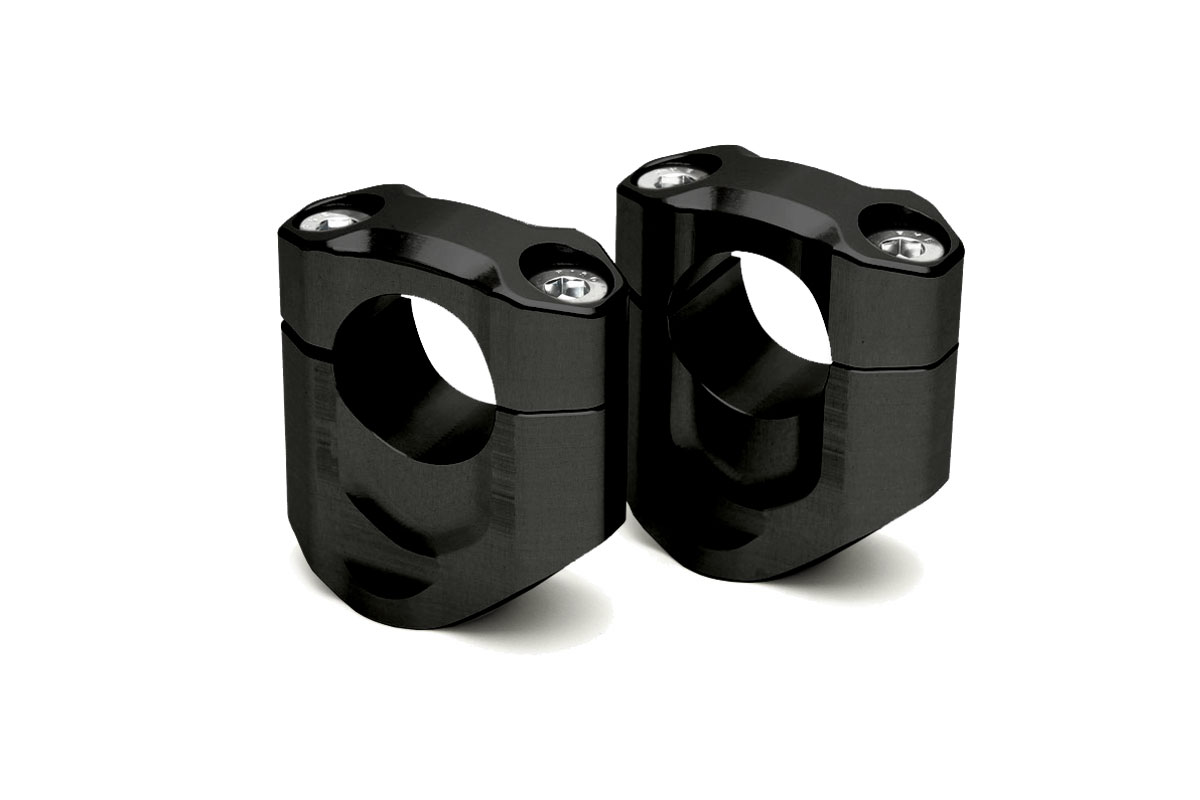

Off-centered handlebar mounting set for 22 mm handlebars

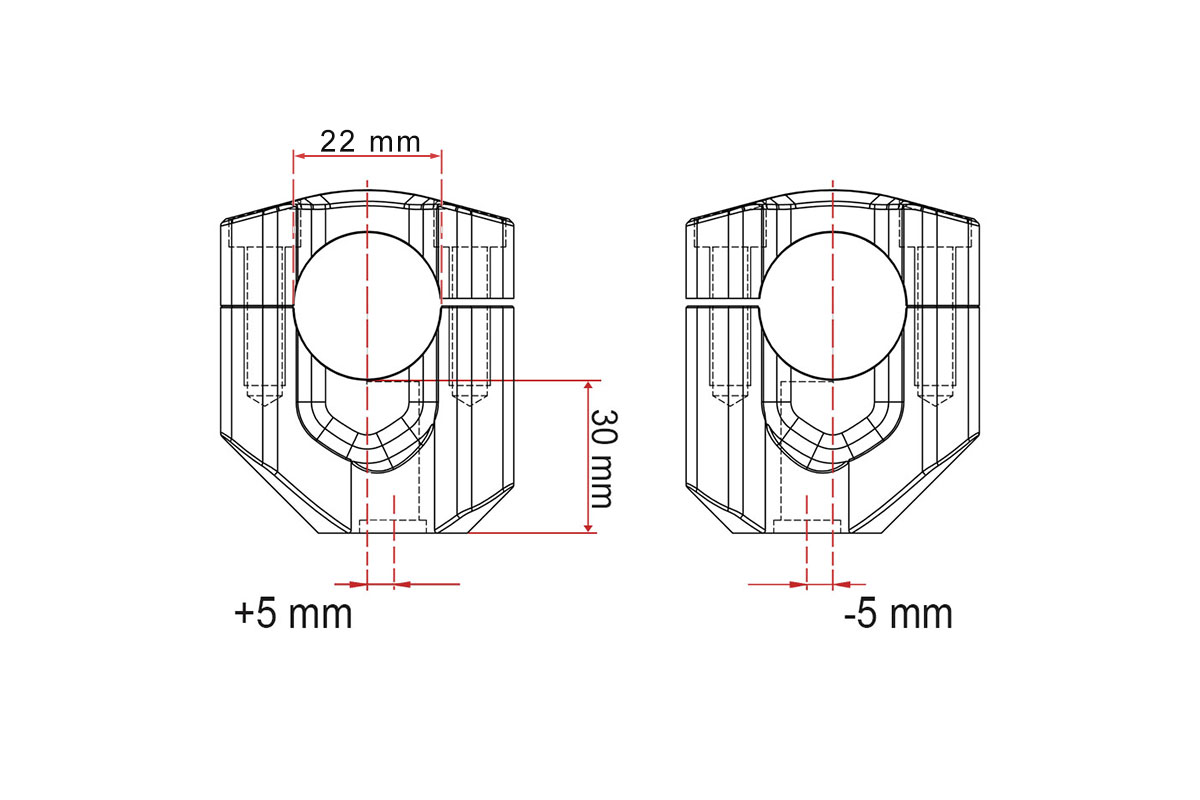

The excentric manufacturing offers a +/-5 mm for- or backward orientated handlebar mounting positon compared to a centered position.
The fully cnc machined clamping sets have a height of 30 mm (upper side of triple clamp to lower side of handlebar). By using the avaiable distance bushings almost all needed heights are possible.
So if you need a total height of e.g. 50 mm, choose the handlebar clamp (30 mm height) and add a 20 mm distance bushing.

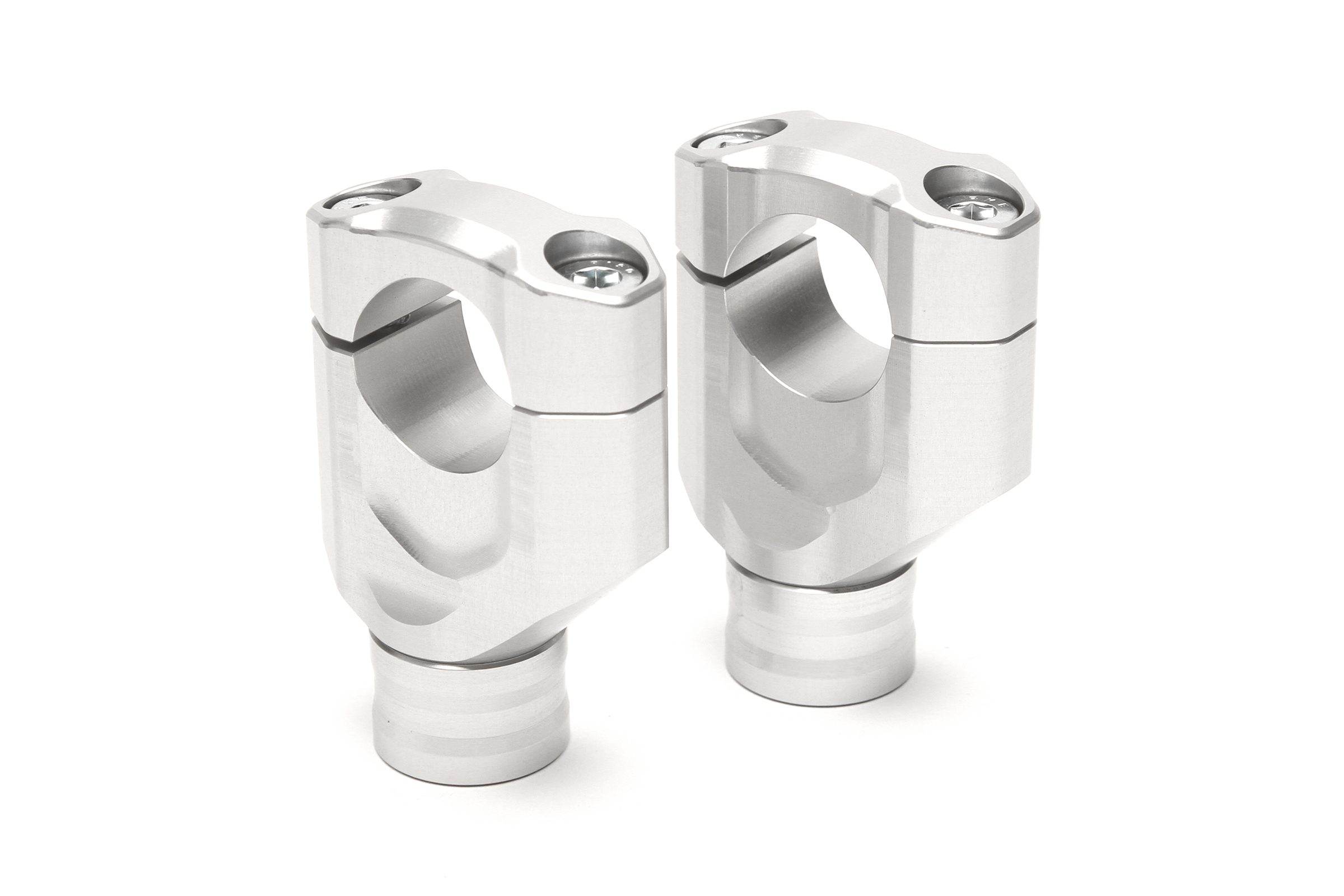

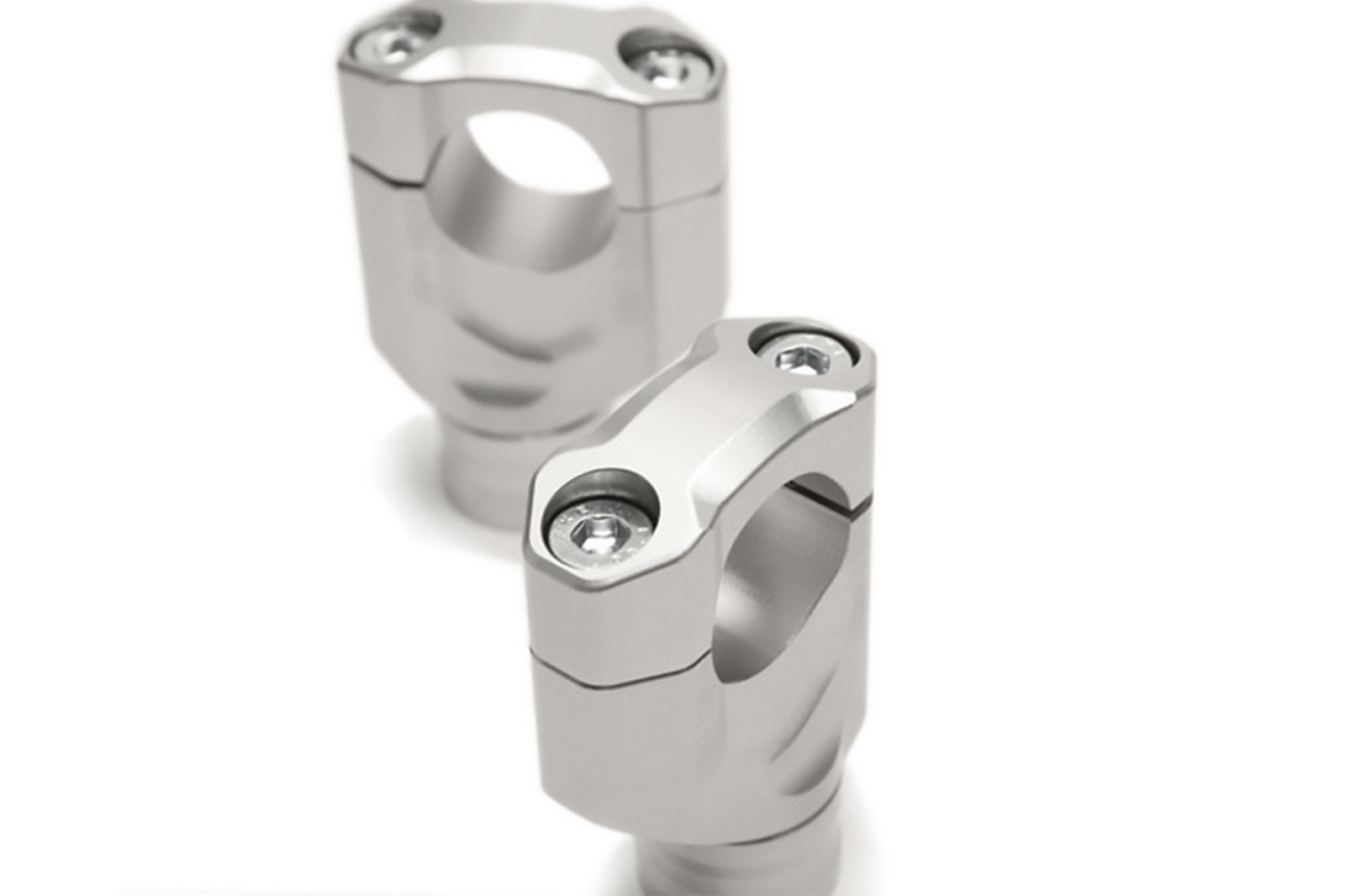

Made of high grade aircraft aluminium, black or silver anodised.
For needed distance bushings see accessories. Shown bushings not included!
Supplied M10 bolts have a free length of 40 mm. If you have e.g. a 40 mm high triple clamp, these bolts will fit.
If you need longer/shorter bolts, please order separately (see accessories).
Fits e.g. Yamaha XT-660R/X, XT-660Z Tenere, TT-600 (S/E/R/RE), XT-600, XT-550, XTz-660 any many more bikes with a bolt-on clamp set and 22 mm handlebar
Please measure the needed height on your bike.
Tested, maximum possible heights with stock cables and wires:
- Yamaha Tenere 700 - 90 mm
- Yamaha XT-660Z Tenere - 70 mm
- Yamaha XTz-660 - 70 mm
- Yamaha XT-660R/X - 50 mm
- Yamaha TT-600 - 50 mm
- Yamaha XT-600 - 50 mm
- Yamaha XT-550 - 50 mm
- Color: silver or black anodised
- Price per pair
- Made in Germany by OTR with 10 years warranty!
- Shown spacers not included in delivery
