High Fender Adapter / Brake line distributor, Aluminium, cnc machined Yamaha Tenere 700

Lower brake line guide to mount at lower end of fork tube.   Our plastic brake line guide helps to neatly route the brake lines when using a high mudguard. The lines are safely guided so that the risk of "snagging" is minimised. The guide can be slid over the installed fork leg, disassembly of the complete fork is not necessary. The part for the brake line can be clipped open, so routing the brake hose is very easy. Clamping Diameter 53 mm   Price per piece.

Upper brake line guide to mount below lower triple clamp.   Our plastic brake line guide helps to neatly route the brake lines when using a high mudguard. The lines are safely guided so that the risk of "snagging" is minimised. The guide can be slid over the installed fork leg, disassembly of the complete fork is not necessary. The part for the brake line can be clipped open, so routing the brake hose is very easy. Clamping Diameter 56 mm   Price per piece.

High grade steel braided brake line set to use a high fender with the Yamaha Tenere 700. Special brake hose kit that routes the lines down left and right side the fork tubes. The oem line from the right to the left brake caliper is not necessary anymore. A special adapter as a brake line "splitter" is needed to mount this kit. See accessories. Stainless steel braided hoses and metal made oem matching distributors. So the brake line has same feature as OEM line!! Exact pressure point, "eternally" working and nearly indestructable, these are the most important features of the steel braided brake hoses which have been tested a thousand times. In addition to the improved brake hose, the small hand power adds to the security. We recommend having safety-relevant components such as brake lines fitted by a specialist workshop. Delivery including TÜV-Certificate!   What are the advantages of a Steel braided brake line? Our Stahlflex brake lines provide increased safety feature during the braking process, as steel brake lines. The steel braided lines, in comparison to standard brake lines - do not expand even in heat and therefore respond quicker and more directly. Especially in extreme situations, this steel flex brake lines offer the decisive advantage during the braking process. In addition, our brake lines are practically indestructible. Once a steel braided brake line have been mounted, you never have to change this again. We are convinced of our product and therefore you get a 5-year guarantee on all brake lines.   Included: 1 x Brake line from master cylinder to ABS module 1 x Brake line from ABS module to brake line splitter 1 x Brake line from splitter to right brake caliper 1 x Brake line from splitter to left brake caliper Seals for the brake lines   Features: Set of 4 brake hoses and seals Mount threads M10x1 High grade PTFE brake tube, steel braided about 50% less weight compared to genuine Yamaha brake lines Fittings avaiable in anodised aluminium or stainless steel different coating colours avaiable better braking performance less hand power needed TÜV approved Rubber reinforcement for off-road use lasts extremely long due to UV-protection to the hose including needed seal washers   Fits all: Yamaha Tenere 700 2019 - 2024 Yamaha Tenere 700 Rally Edition 2020 - 2024   Please note: A new adapter for the brake hose is needed for mounting. At least 1 banjo bolt M10x1.25 is required for the right brake caliper, as Yamaha uses a double banjo bolt there. This would not fit with the kit. See accessories.   Due to the many possible combinations in the hose / fitting selection, the lines are always custom made to order. Therefore, please allow 1 to 3 working days until dispatch, depending on the season.

Hydraulic (bleeding) bolts made from high grade aircraft aluminium 7075 T6   Very lightweight. Made from high grade aircraft aluminium. For clutch and brake master and slave cylinder or brake calipers High quality cnc machined. Avaiable in different anodised colors.   Thread: M10x1 Length: 20 mm Material: Aluminum 7075 T6   Fits e.g. for : Yamaha XT-660Z brake calipers Ducati 748 - 916 - 996 - 998 - 848 - 1098 - 1198 a lot BREMBO Calipers and brake / clutch pumps

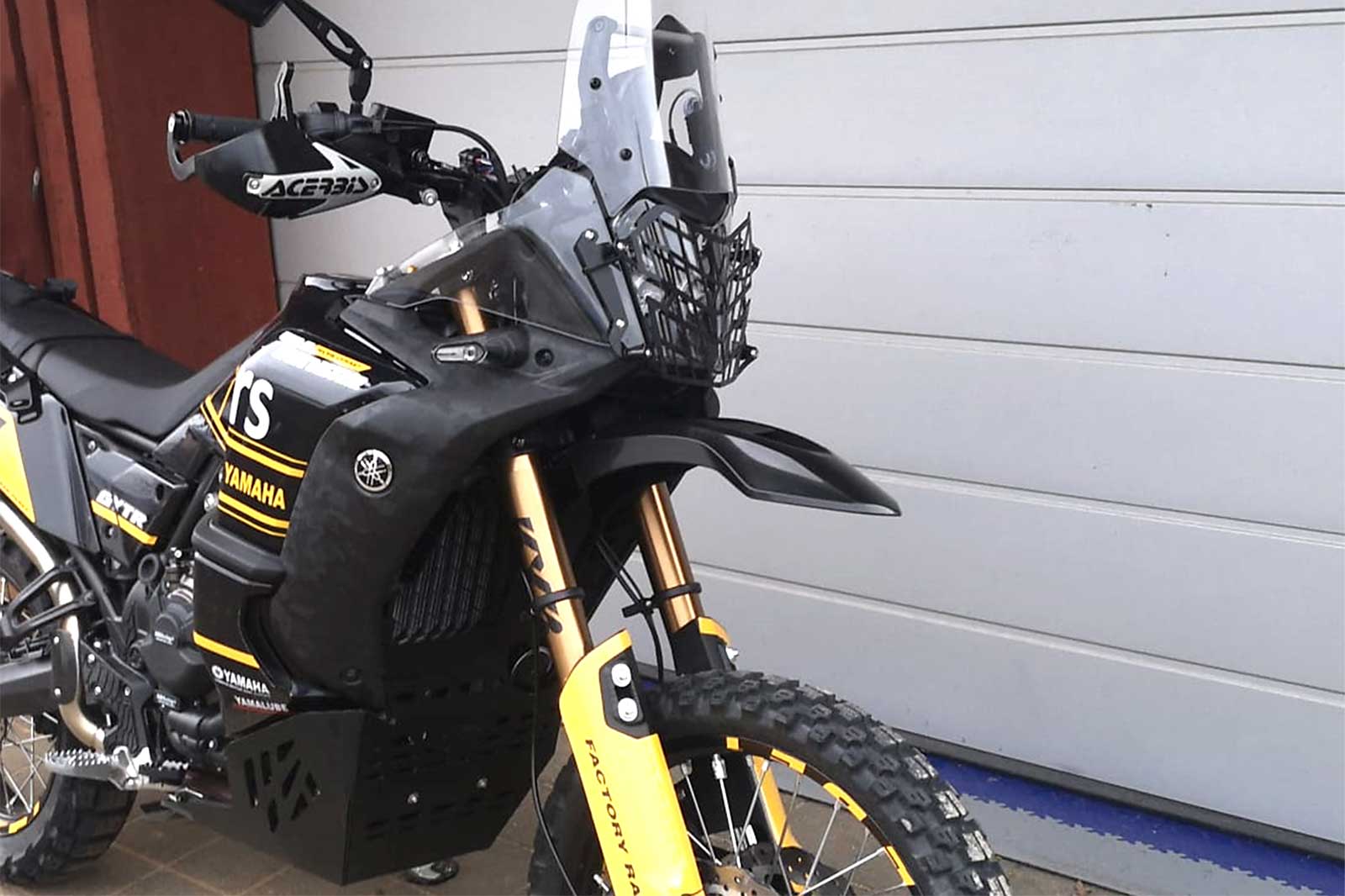

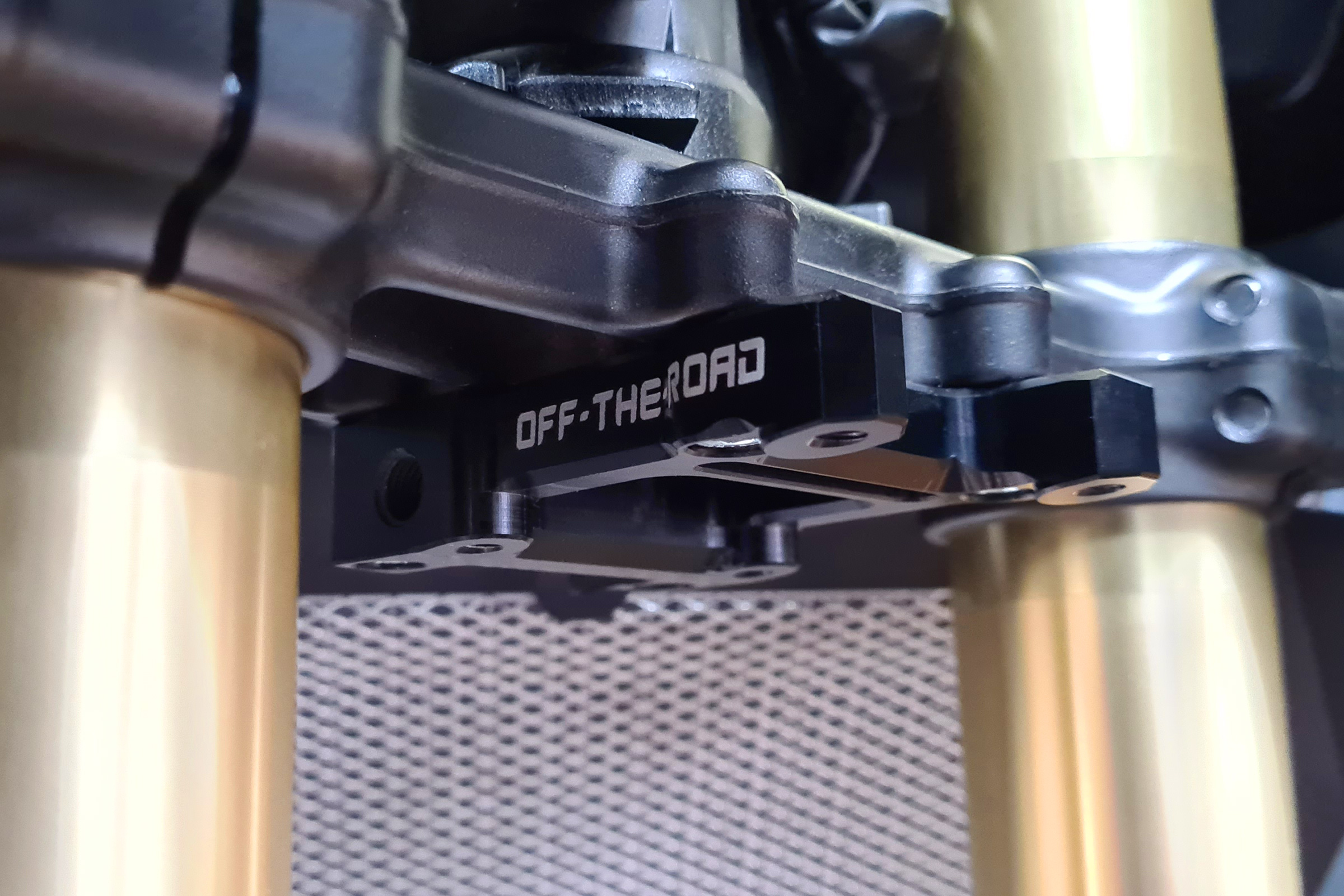

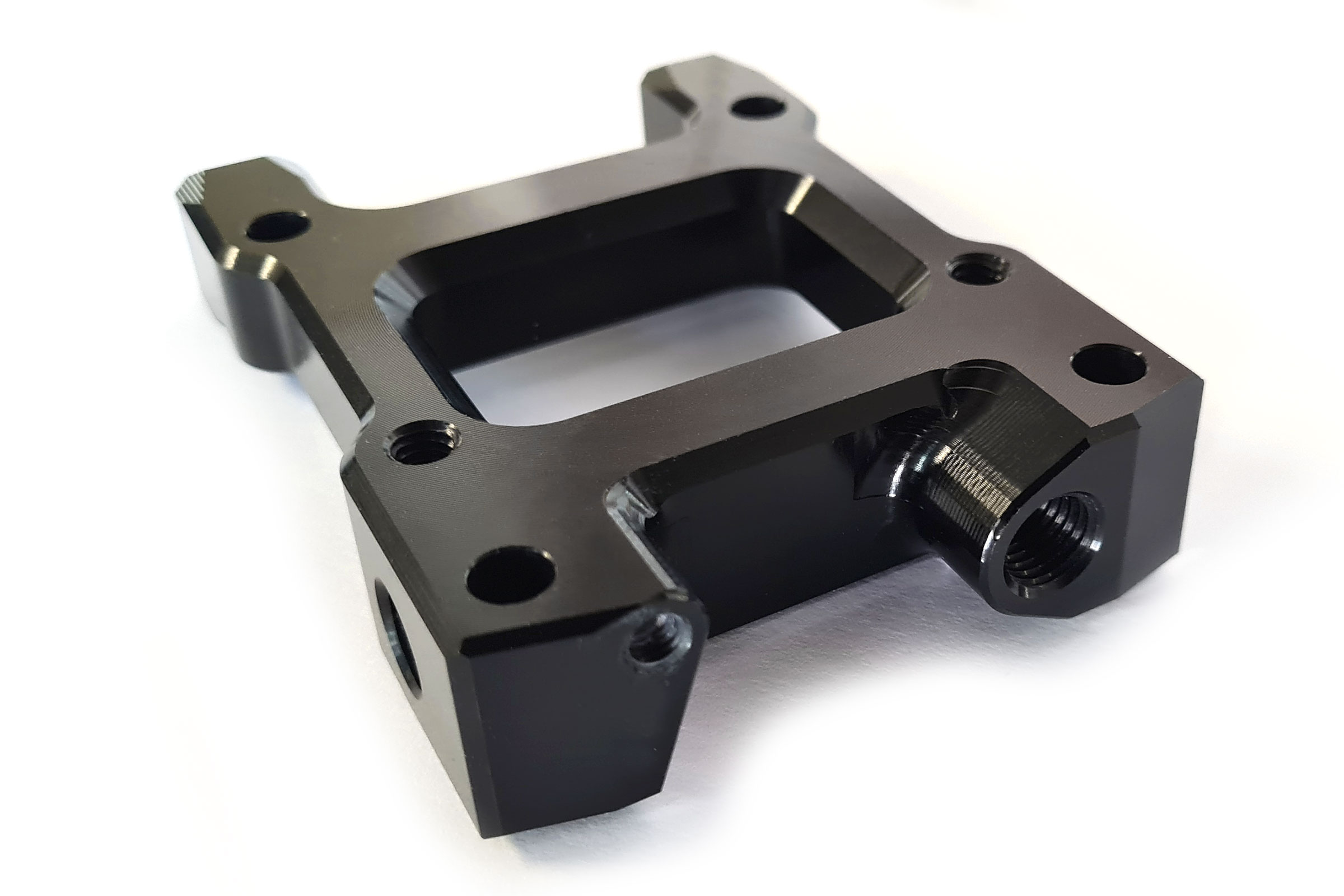

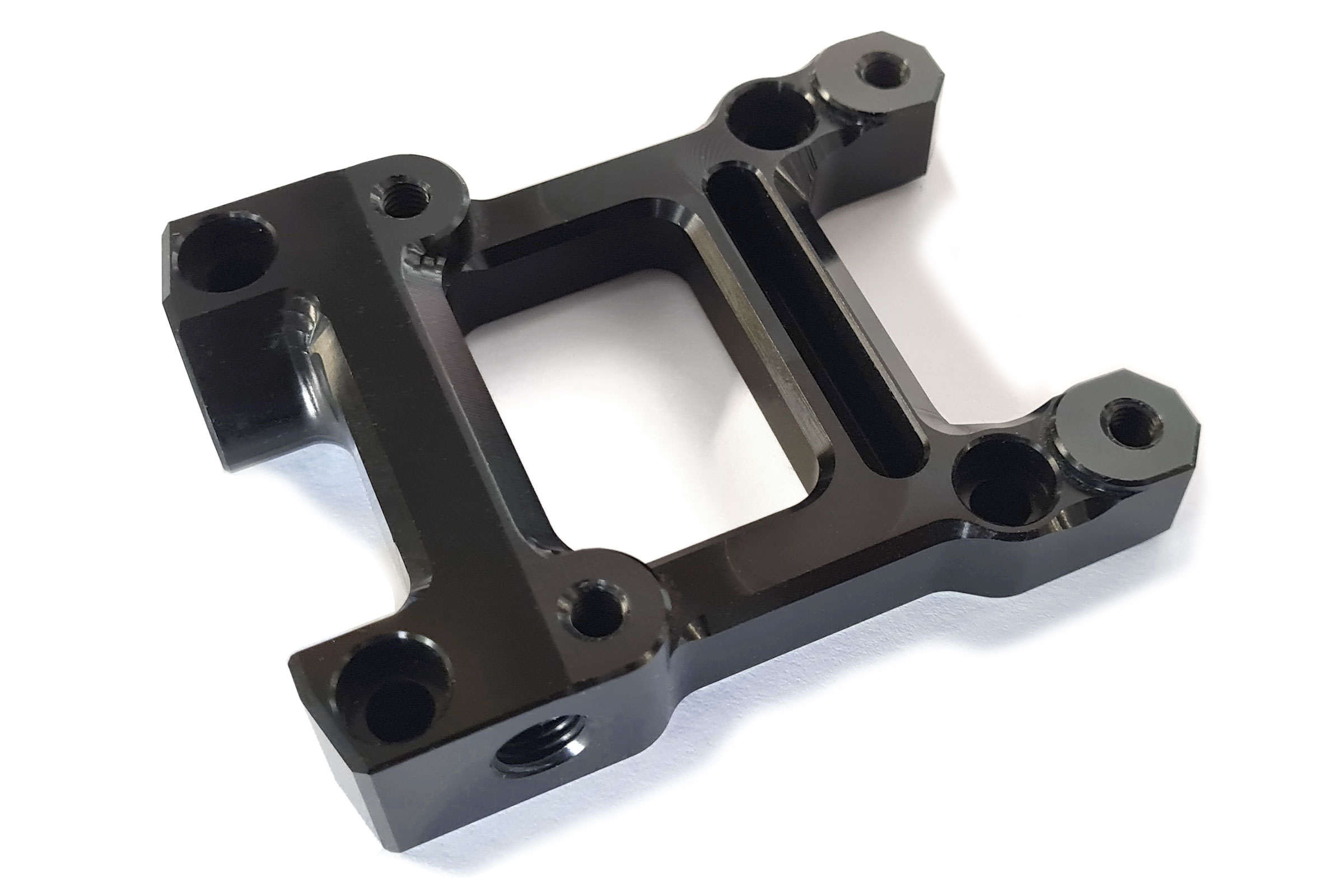

Machined aluminium adapter for mounting a high mudguard / rally fender with a matching brake line kit. The adapter is bolted to the lower triple clamp and relocated the position a high mudguard slightly in the direction of travel. This gives you more space at the rear end of the fender, so this does not touch the radiator. The fender mounting area is also tilted slightly to give the Tenere 700 a more pleasing appearance. Three M10x1.25 threads allow to use this adapter also as a mounting part / splitter for the brake lines. Three brake lines can be screwed on. One line coming from the ABS module is screwed on at the rear of the distributor, two lines run from left / right side of distributor down the left and right of the fork leg to the two brake calipers.   milled aluminium adapter black anodised 3 threads for M10x1.00 banjo bolts 4 M6 threads on the underside needed brake line kit and Banjo bolts not included     Scope of delivery:   1 x aluminium adapter Mounting kit Instructions   Please note: Needed banjo bolts M10x1.0 not included! Necessary if you want to use your own brake lines. If you use our brake line kit, this Banjo bolts are not needed. When mounting with our brake line kit, at least 1 banjo bolt M10x1.25 is required for the right brake caliper, as Yamaha installs a double banjo bolt there from factory. See accessories.   Fits all:   Yamaha Tenere 700 2019 onwards Yamaha Tenere 700 Rally 2020 onwards Yamaha Tenere 700 World Raid 2022 onwards Yamaha Tenere 700 Extreme 2023 onwards Yamaha Tenere 700 Explore 2023 onwards

The beautifully shaped and high-quality CNC-milled aluminum covers neatly close the open mounting holes. When removing the original lower fender, the holes remain open and spoil the beautiful conversion to a high rally fender.   The stylish, titanium-coloured anodized covers made of 7075 T6 aluminium complete every high-fender conversion.   Scope of delivery: 1 x cnc machined, cover, right side, anodiesed 1 x cnc machined, cover, left side, anodiesed 4 x bolt   Fits for all: Yamaha Tenere 700 2019 onwards Yamaha Tenere 700 Rally 2021 onwards Yamaha Tenere 700 World Raid 2022 onwards Yamaha Tenere 700 World Rally 2023 onwards Yamaha Tenere 700 Extreme 2023 onwards Yamaha Tenere 700 Explore 2023 onwards

Front Fender, High Version, 2-coloured
