Renthal Fatbar 609 handlebar, black

Renthal Fatbar 609 handlebar, black

Renthal Fatbar 609 handlebars - the original handlebar from UK.

The championship proven Renthal® Fatbar continues to set the industry standard in an unbraced mx handlebar. The oversized (1-1/8in | 28.6mm) clamping diameter uses computer aided profiling, tapering down to (7/8in | 22.2mm) to accept standard controls. Engineered from Renthal's exclusive 7010 T6 aluminum, specially formulated to reduce vibration and provide superior strength.   The Renthal MX Fatbar provides that signature flex character desired by many top atheltes around the globe and is fitted as OE equipment by various manufacturer.

· handlebar including bar pad!

· Made with aerospace aluminum and  thick wall tubing

· Very high strength due to the thick aluminium wall

· 28.6mm bar mount diameter - 22mm at the bar ends for use of stock switchs

· Chemically applied scratch & peel resistant graphics

· Knurled clutch side for secure grip hold

· Includes high-density molded pad



Measurements:

· Width: 802 mm

· Height: 120 mm

· Rise: 84 mm

· Clamping area: 150 mm

· Sweep: 56 mm

· Control length: 190 mm

· Inner diameter at bar end: 14 mm

Manufacturer:
Renthal Ltd.

Bredbury Park Way

SK6 2SN Bredbury, Akrotiri und Dhekelia

info@renthal.com
Skip product gallery

ZUBEHÖR

Spacer for 76-E5 handlebar clamps
Spacer for 76-E5 handlebar clamps

Ready to ship in approx. 5 days

Distance bushing in various heights for our cnc machined handlebar clamps. The fully cnc machined bushing is avaible from 10-50mm height. By using this spacer in combination with our handlebar clamps almost all heights are possible. Made of high grade aircraft aluminium, black or silver anodised. Delivered without bolts. For bolts see accessories. To be used only with our cnc machined handlebar clamps or triple clamp sets. See accessories. Price per piece. For mounting two pieces needed.

Regular price: €9.95
Handlebar Clamps off-centered 22 mm
Handlebar Clamps off-centered 22 mm

Ready to ship in approx. 5 days

Off-centered handlebar mounting set for 22 mm handlebars   The excentric manufacturing offers a +/-5 mm for- or backward orientated handlebar mounting positon compared to a centered position. The fully cnc machined clamping sets have a height of  30 mm (upper side of triple clamp to lower side of handlebar). By using the avaiable distance bushings almost all needed heights are possible. So if you need a total height of e.g. 50 mm, choose the handlebar clamp (30 mm height) and add a 20 mm distance bushing.   Made of high grade aircraft aluminium, black or silver anodised. For needed distance bushings see accessories. Shown bushings not included!   Supplied M10 bolts have a free length  of 40 mm. If you have e.g. a 40 mm high triple clamp, these bolts will fit. If you need longer/shorter bolts, please order separately (see accessories).   Fits e.g. Yamaha XT-660R/X, XT-660Z Tenere, TT-600 (S/E/R/RE), XT-600, XT-550, XTz-660 any many more bikes with a bolt-on clamp set and 22 mm handlebar Please measure the needed height on your bike.   Tested, maximum possible heights with stock cables and wires:   Yamaha Tenere 700            -   90 mm Yamaha XT-660Z Tenere   -   70 mm Yamaha XTz-660                 -   70 mm Yamaha XT-660R/X            -   50 mm Yamaha TT-600                   -   50 mm Yamaha XT-600                   -   50 mm Yamaha XT-550                   -   50 mm   Color: silver or black anodised Price per pair Made in Germany by OTR with 10 years warranty! Shown spacers not included in delivery

Regular price: €74.95

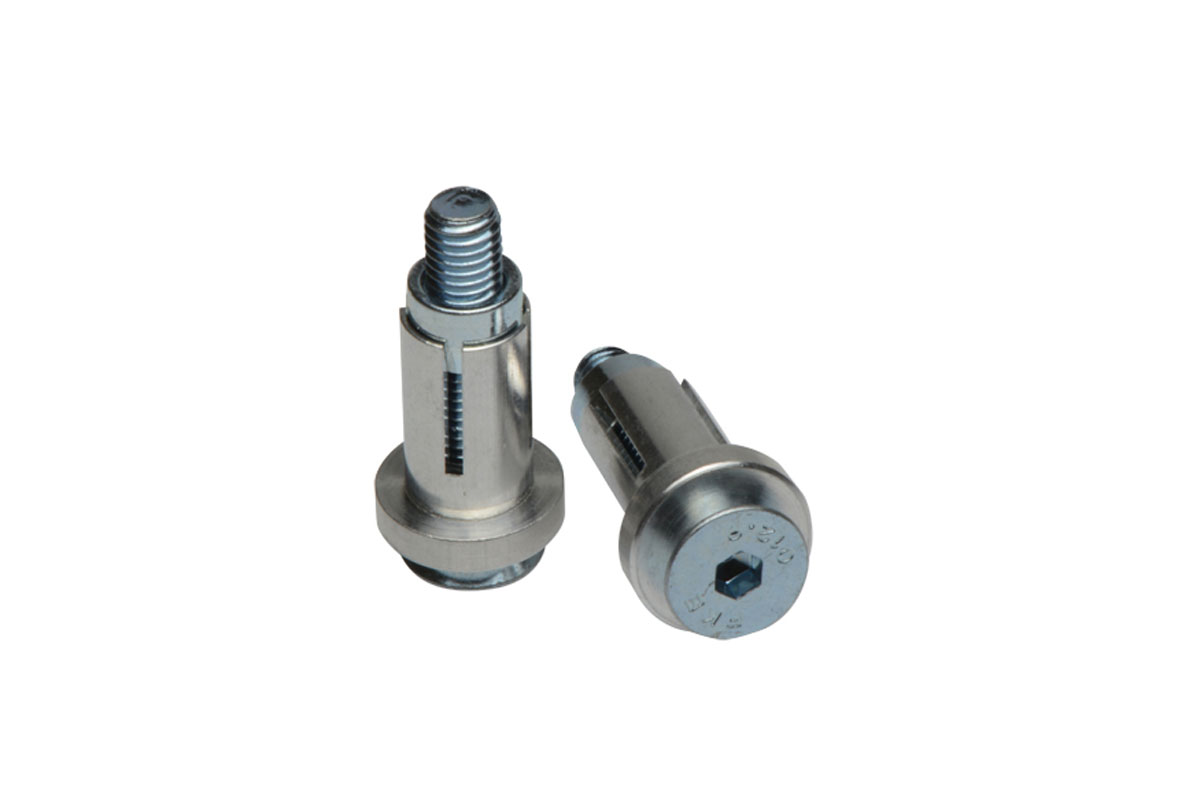

Barkbusters Bar End Inserts, 14 mm
Barkbusters Bar End Inserts, 14 mm

Ready to ship in approx. 5 days

Barkbuster Bar End Insert Kit 14 mm To be used with the Barkbuster handguard kits. · Bar end fittings to suit 14 mm (internal diameter) handlebar. · Made from Steel and aluminium · sold as a pair

Regular price: €11.95
Handlebar grips Softgrip Rallye
Handlebar grips Softgrip Rallye

Ready to ship in approx. 5 days

Handlebar Softgrips Rallye Timeless grips for rallyes. On the desert races this are still the grateset grips. Their thickness is studied to cancel most of vibrations that you can find in rally races. High quality material for best feeling, vibration reduction and durability. Price per pair Color: black Measurements: Ø 22-25mm / Long 125mm

Regular price: €13.95
