Handlebar clamps with steering damper mounting option Yamaha Tenere 700, RALLY version

Preview: Lenkerklemmen mit Lenkungsdämper Montagemöglichkeit Yamaha Tenere 700, OEM Gabelbrücke, Rally Ausführung

Lenkerklemmen mit Lenkungsdämper Montagemöglichkeit Yamaha Tenere 700, OEM Gabelbrücke, Rally Ausführung

€189.95 *

Prices incl. VAT plus shipping costs

Ready to ship in 1 workday(s)

Part number: LDK-OTR-T700-SC-OEM-RA

CNC machined handlebar clamps with Scotts steering damper mounting option for the Yamaha Tenere... more

Close menu

Handlebar clamps with steering damper mounting option Yamaha Tenere 700, RALLY version

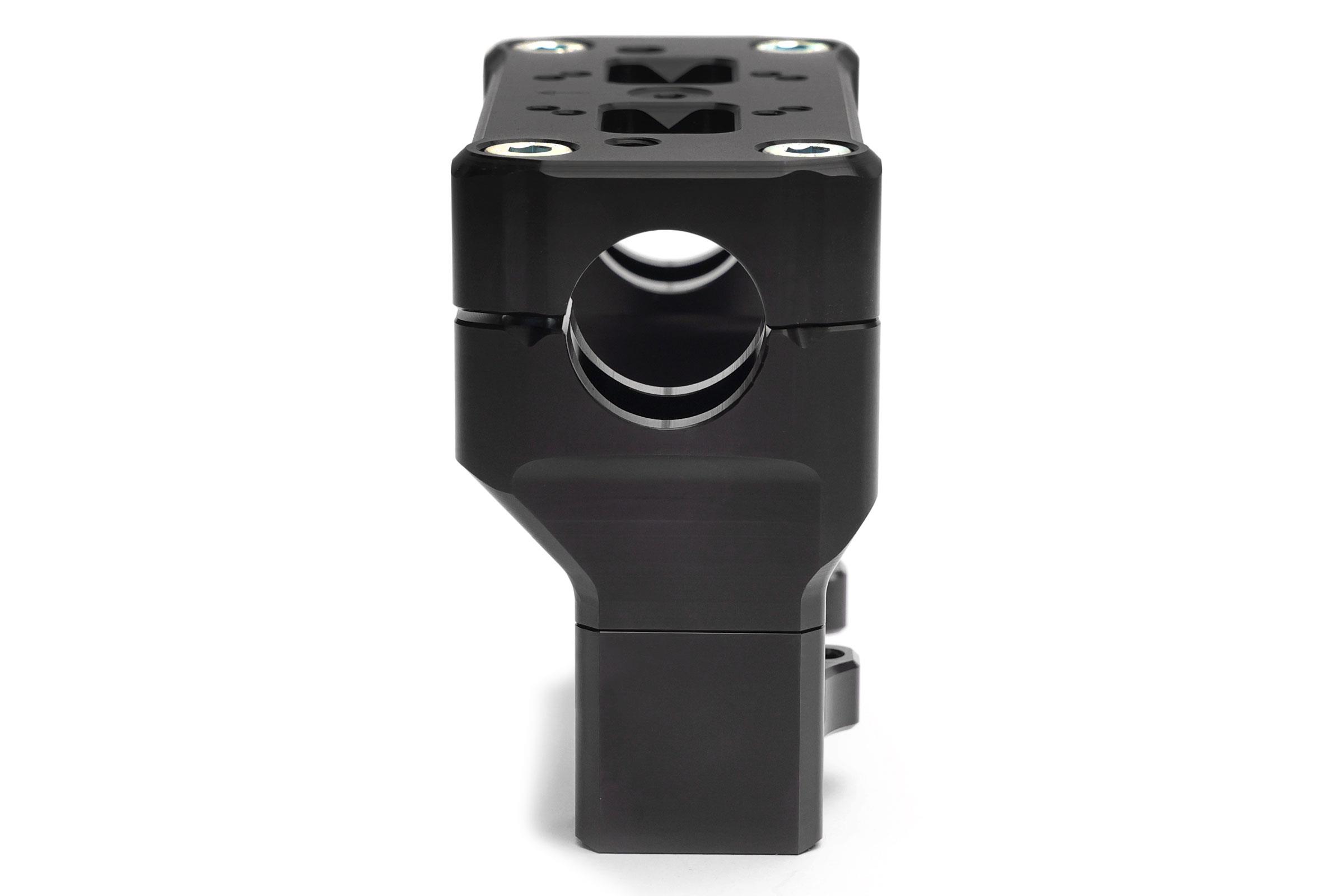

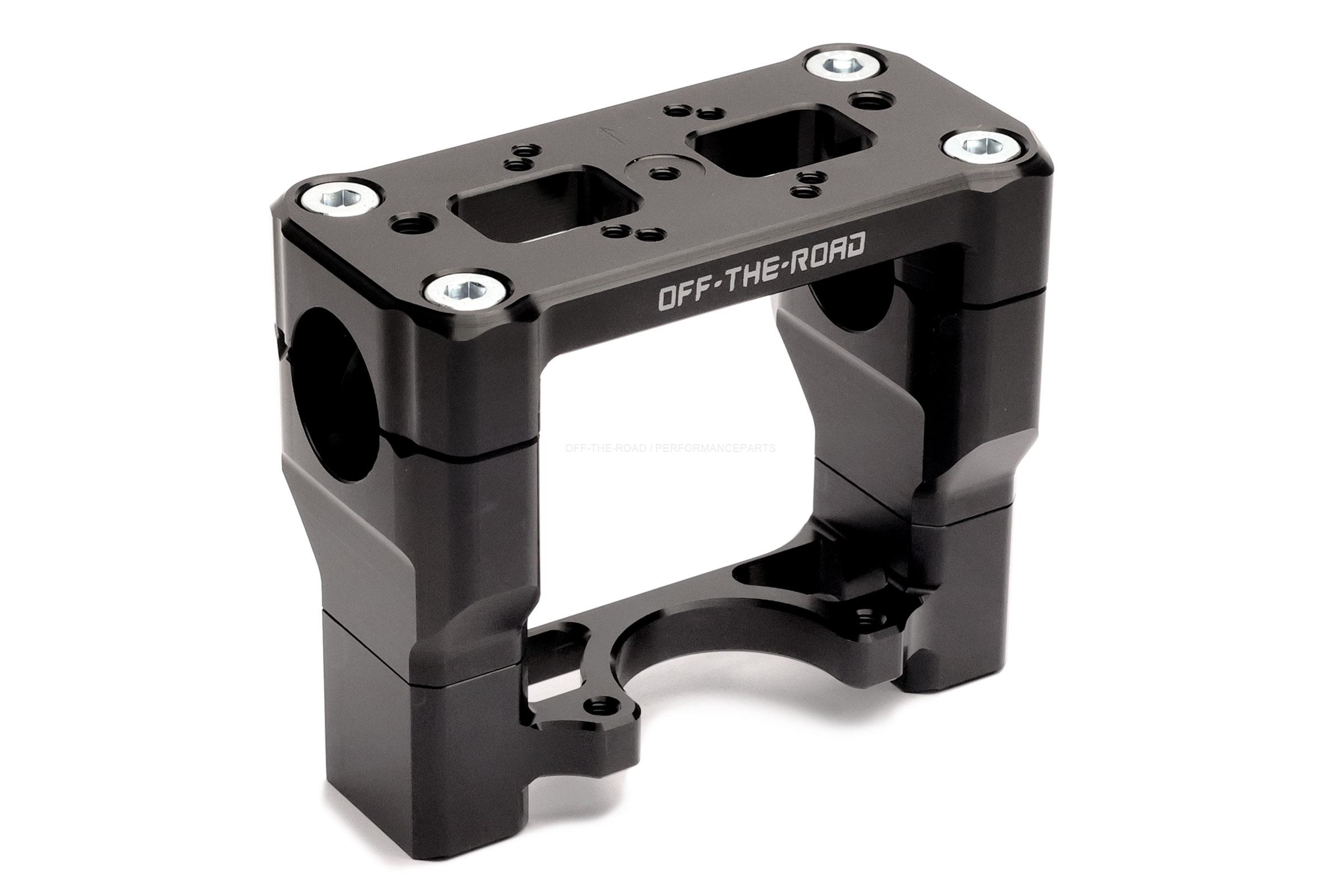

CNC machined handlebar clamps with Scotts steering damper mounting option for the Yamaha Tenere 700

Our CNC-machined handlebar clamp set with mounting option for a Scotts steering damper combines extreme torsional rigidity with simultaneous mounting flexibility.

The handlebar position can be varied +/- 5mm forwards/backwards. It can also be combined with our handlebar riser for the Tenere 700. This allows the handlebars to be raised by 20 or 30 mm.

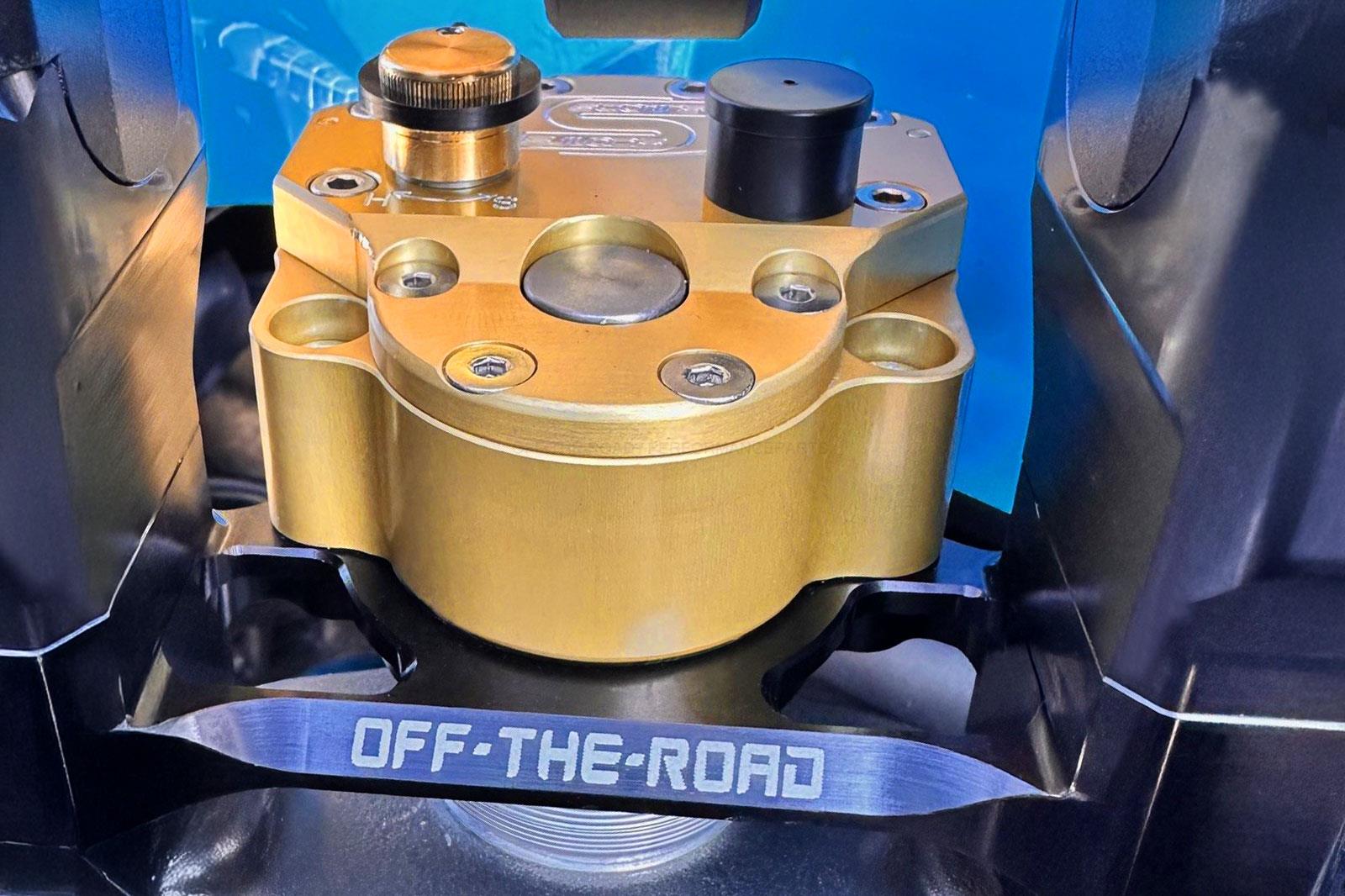

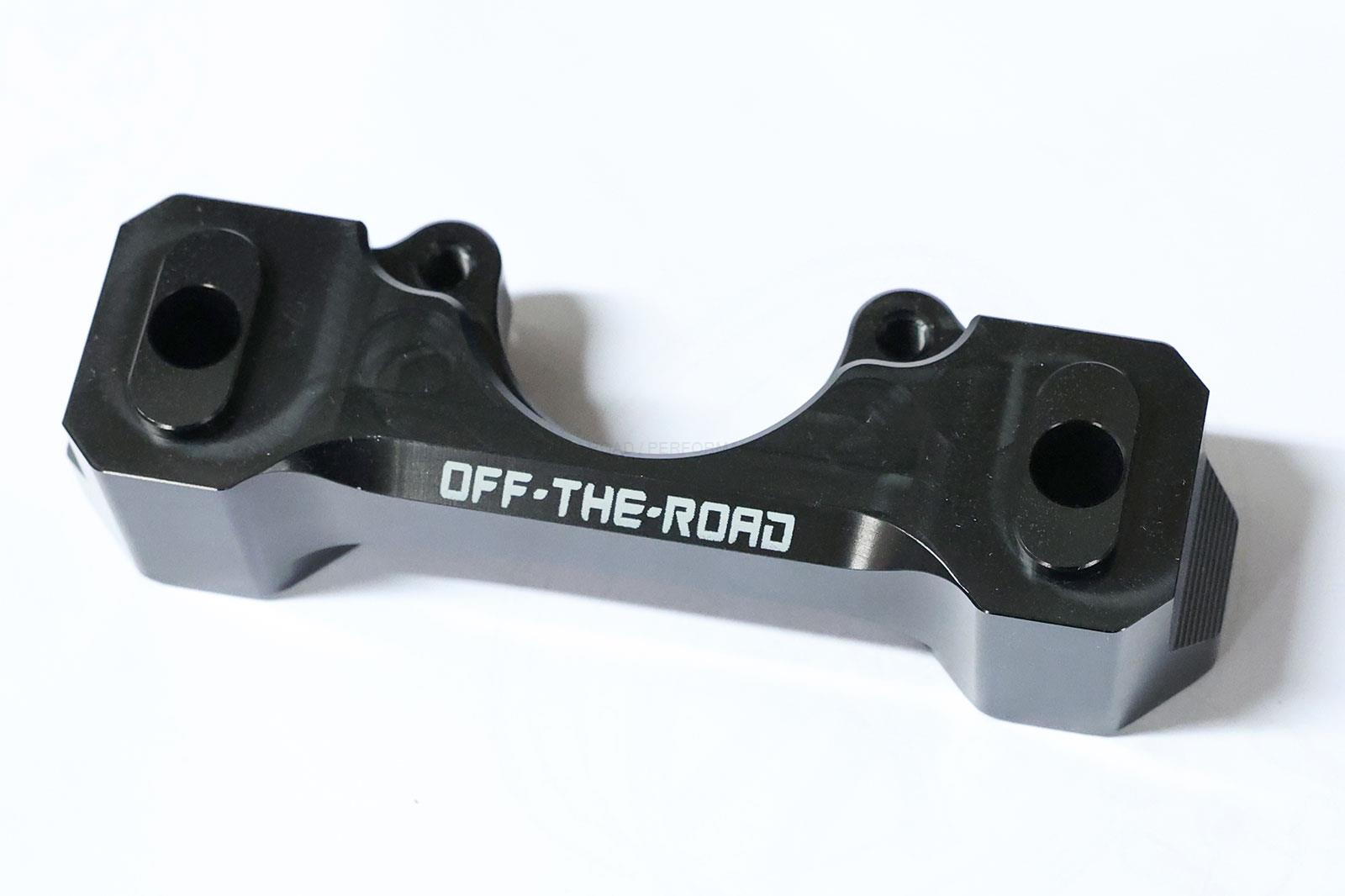

The steering damper is mounted below the new handlebar clamps on a CNC-machined bracket.

Thanks to an additional eccentric design of the handlebar clamps, the handlebars can be mounted in the original position or 10 mm further away from the rider. The offset handlebar position is particularly advantageous when riding at a slightly faster pace and puts more pressure on the front wheel.

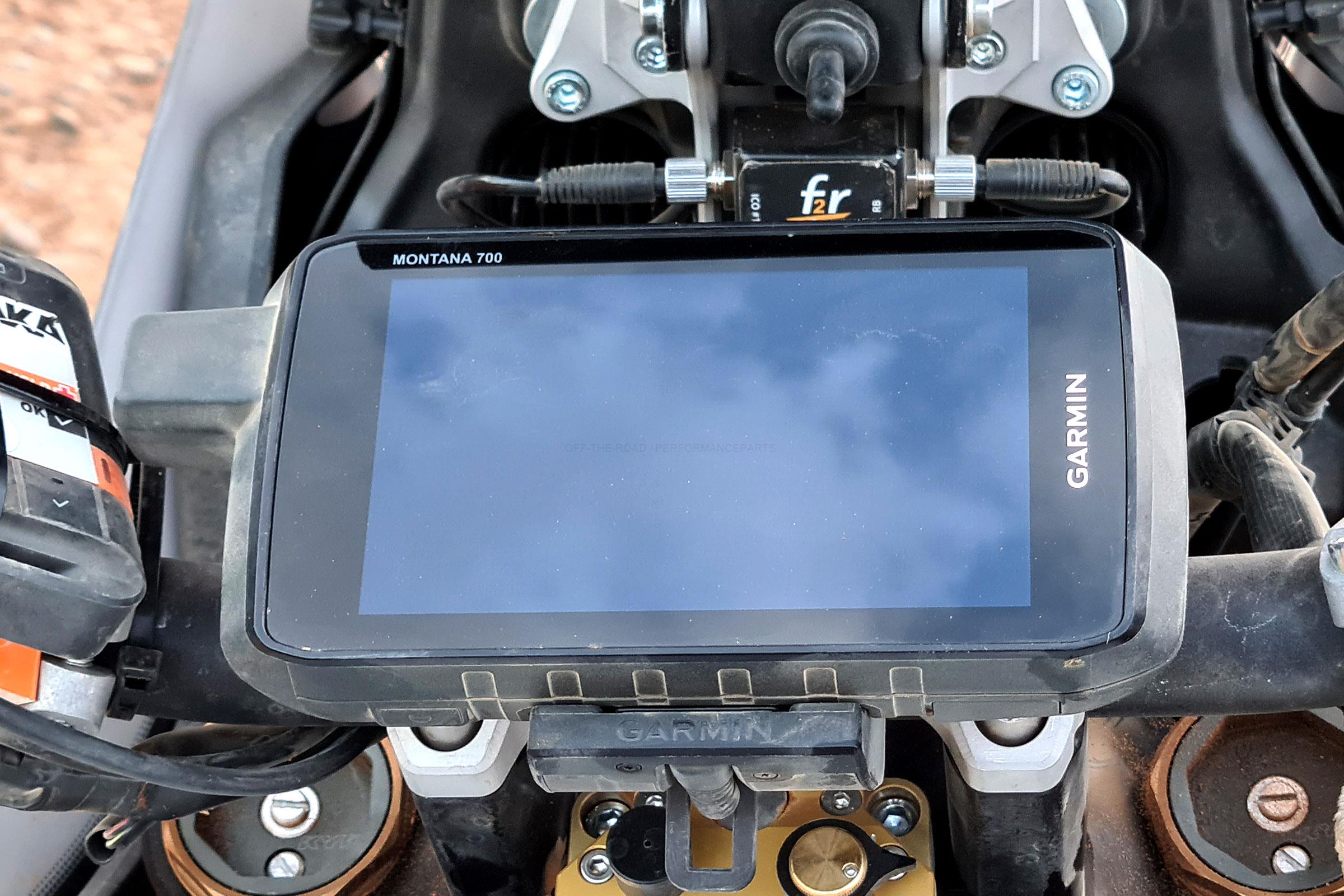

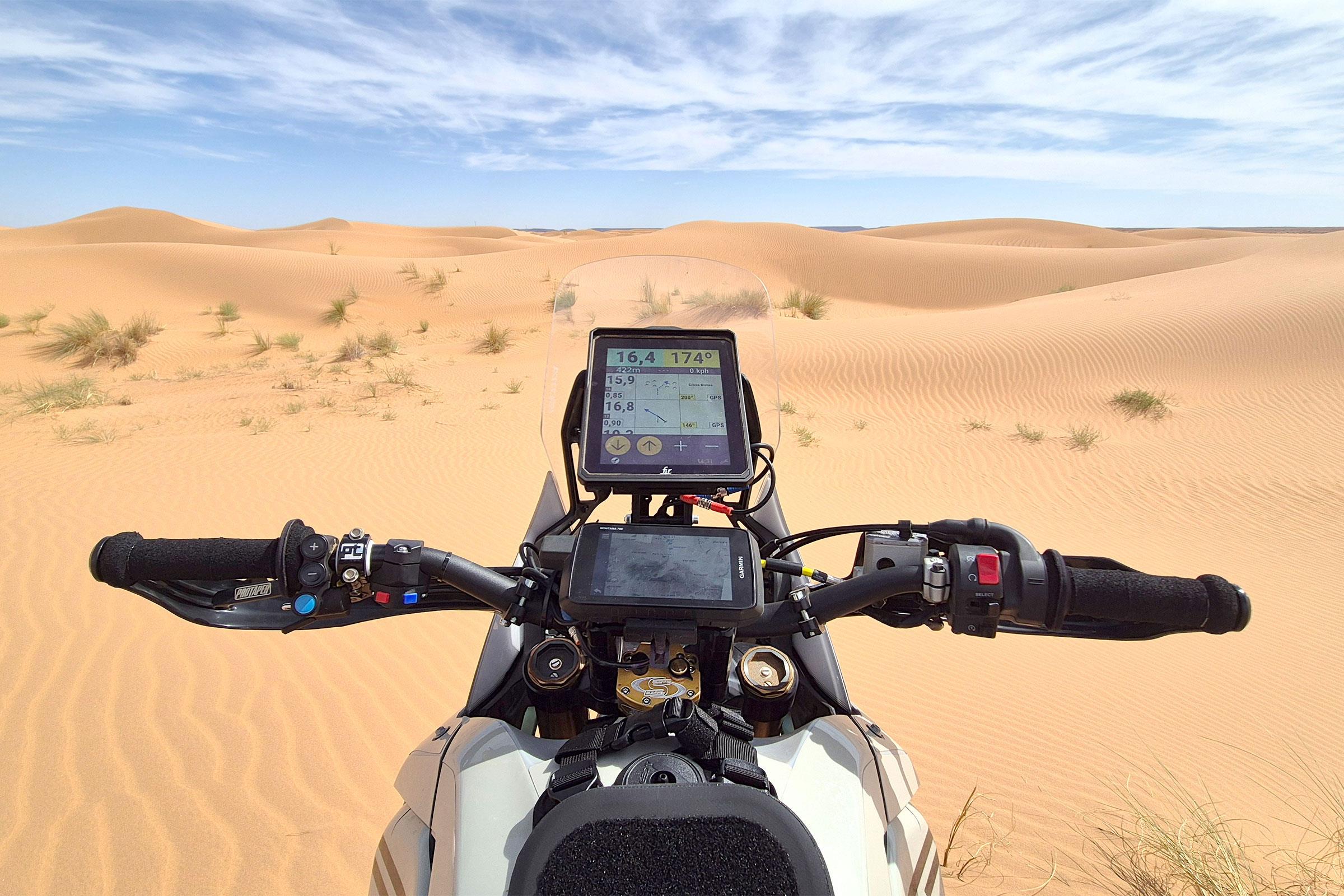

The Rally clamp plate allows horizontal or vertical mounting of various GPS or navigation instruments as well as RAM mount adapters.

The milled handlebar clamping plate also increases the torsional rigidity of the complete handlebar clamp.

All parts are milled from solid material on our modern CNC machines. We only use extremely tough aerospace aluminium 7075 T6 as a material

The surface of all components is anodised black for protection.

The mounting kit on the fork bridge and the counterholder are completely bolted, no welding is required! Complete dismantling is possible without any problems.

The nickel-plated steel counter bracket, which is also milled and bolted to the frame, is available separately. See accessories

Suitable e.g. for mounting of:

Garmin Montana 600 Series
Garmin Montata 700 Series
Garmin 276CX Series
Garmin Zumo XT Series
Trailtech Voyager Pro
Quad Lock
SP Gadgets
Ram Mount
Samsung Galaxy Active Tab

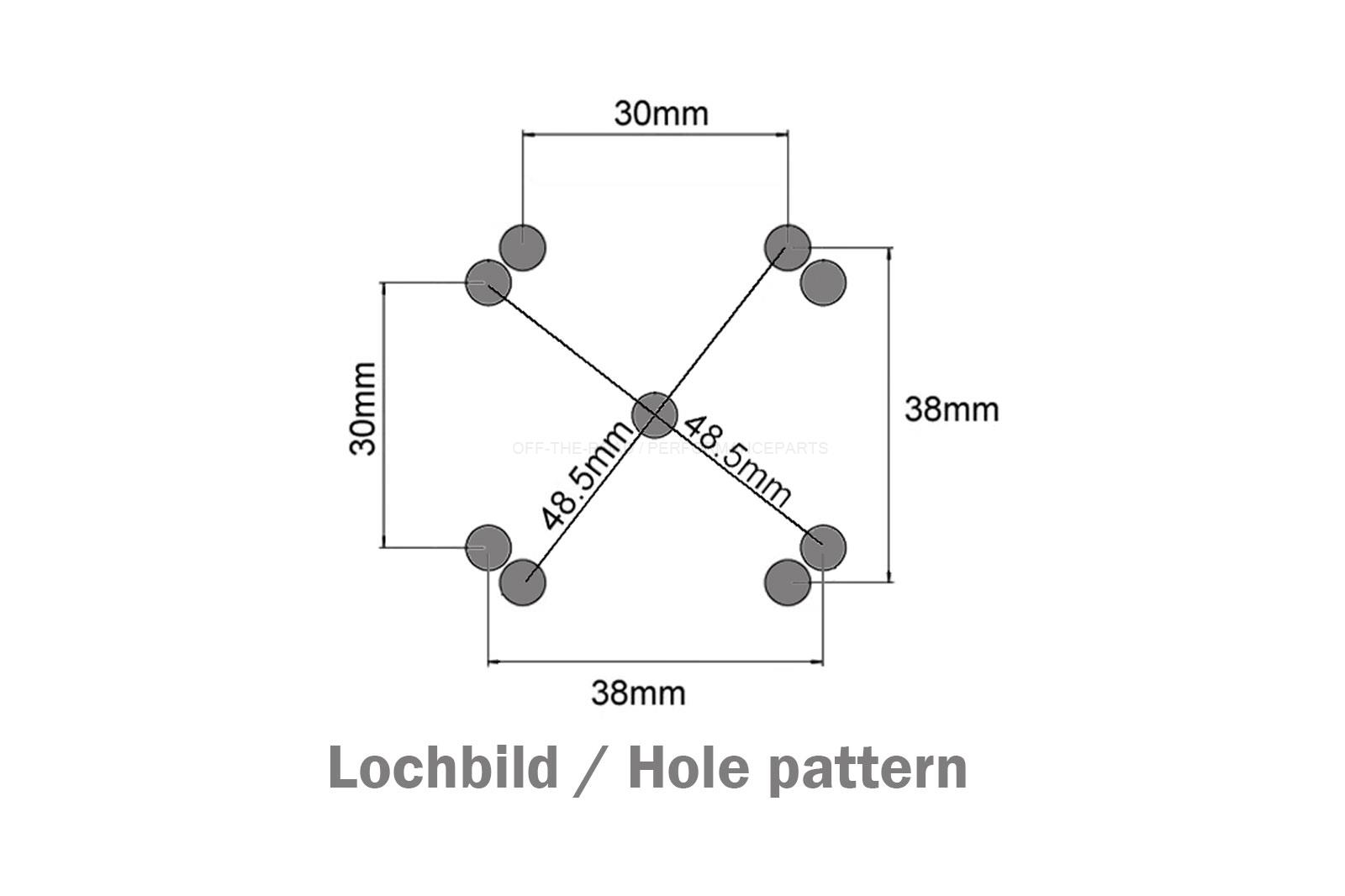

Measurement hole pattern see photo

Scope of delivery:

1 x CNC machined top Rally cross brace, black anodised
1 x CNC machined clamp base, black anodised

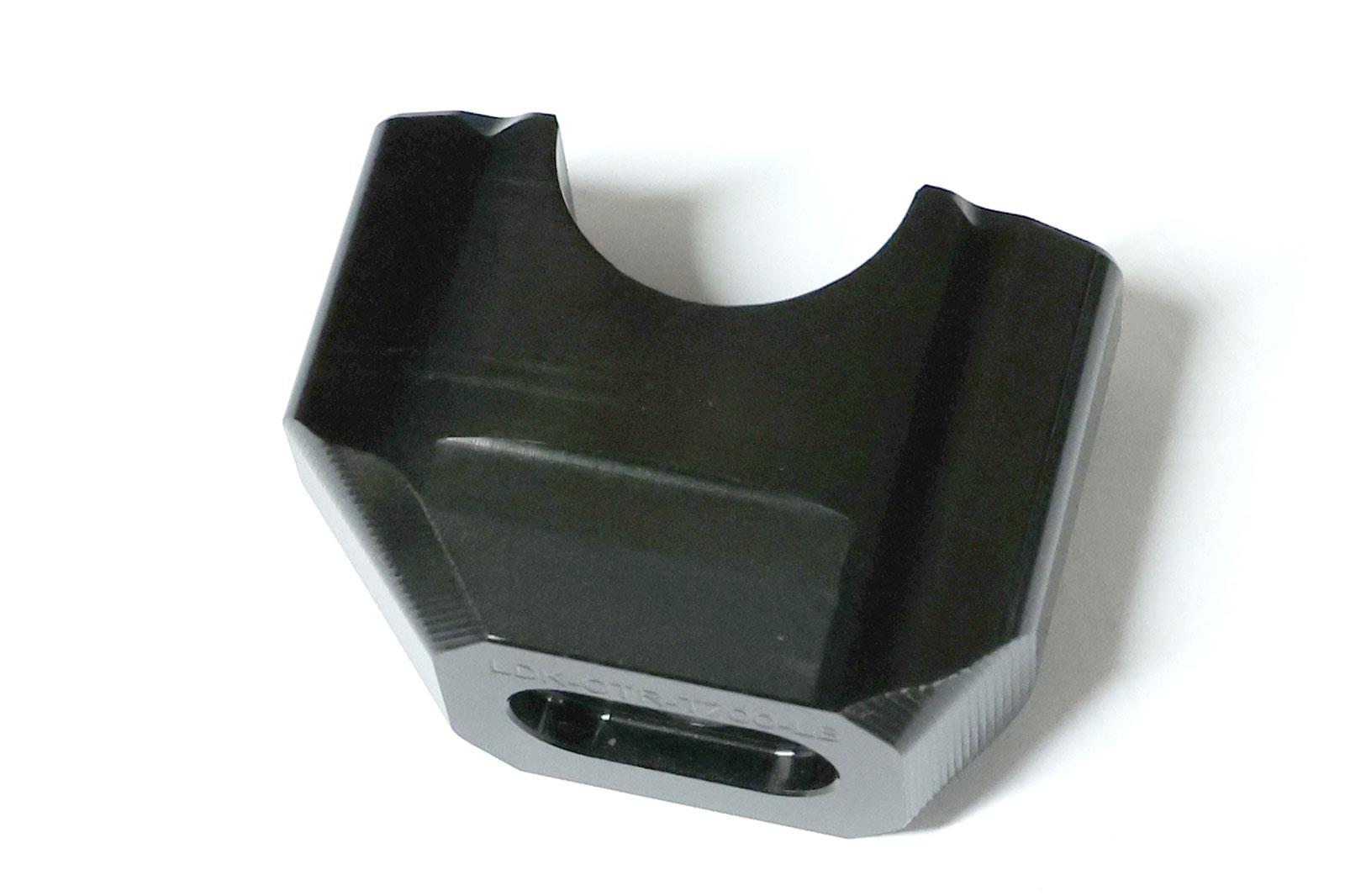

2 x CNC machined handlebar riser
Bolt set
Mounting Instructions

Details:

handlebar position same as OEM position
Handlebar can be raised by using additional spacers (see accessories)
cnc machined handlebar clamps 28.6mm diameter, black anodised
all needed mounting parts, bolts
steering damper not included
fits oem triple clamp

Fits all:

Yamaha Tenere 700 2025 onwards
Yamaha Tenere 700 Rally 2025 onwards
Yamaha Tenere 700 2019 - 2024
Yamaha Tenere 700 Rally Edition 2020 - 2024
Yamaha Tenere 700 World Raid 2022 - 2024
Yamaha Tenere 700 Extreme 2023 - 2024
Yamaha Tenere 700 Explore 2023 - 2024
