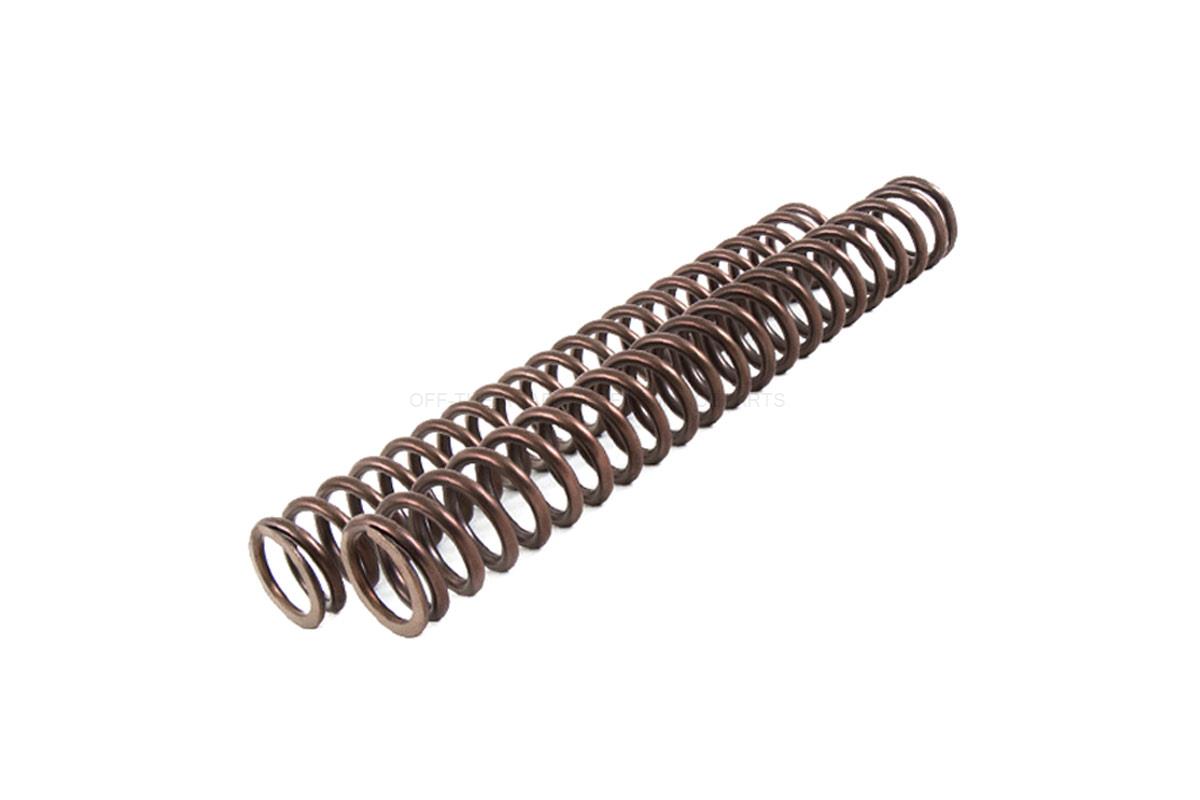

Uprated Fork Springs, linear, Yamaha Tenere 700 Rally 2025 onwards

Preview: OTR Gabelfedern, linear, Yamaha Tenere 700 Rally ab 2025

OTR Gabelfedern, linear, Yamaha Tenere 700 Rally ab 2025

€119.95 *

Prices incl. VAT plus shipping costs

Ready to ship in 1 workday(s)

Part number: GF-OTR-T700RA25-6

Uprated Fork Springs, linear, Yamaha Tenere 700 2025 onwards Special tapered front... more

Close menu

Uprated Fork Springs, linear, Yamaha Tenere 700 Rally 2025 onwards

Spring rate: 6.0 N/mm

Uprated Fork Springs, linear, Yamaha Tenere 700 2025 onwards

Special tapered front spring set for the new 2025 RALLY model. The coiling of this springs for the Tenere 700 Rally is linear, that means that the the spring has the same Nm over the complete travel. So perfect for an adventure bike with long fork travel.

Progression of the fork is done by setting the oil level (air chamber) to the needed value by adding or removing oil.

The springs are, depending on the spring rate, about 5 - 20% harder than oem Yamaha springs.

OEM springs have 5.8 N/mm

Both the range and the extensive test programme using a computer-operated test-bench which simulates the hardest driving situations guarantee that, in combination with the series spring elements, you are driving the optimal solution for your Tenere !

This fork springs are manufactured from the highest grade Chrome Silicone wire, each spring is cold coiled, heat treated, pre set and ground to length before being polished for ultimate performance. All springs have their rate laser etched on the end and are manufactured to DIN 2095 grade.

Recommended fork oil: Motul 10W (see accessories) or Yamaha G10

Air chamber approx. 120 mm - depending on riding style, usage and rider weight

You will need approx. 1.2 Liter for oil

Help for correct spring rate selection:

Rider weight always includes clothing 'ready to ride'. Additional weight due to e.g. crash bars, changed bash plate or a larger fueltank should also be taken into account.

Weight on the rear, such as a top case, only plays a minor role, as this weight influences almost only the rate of the rear shock.

6.0 N/mm - 1 step harder than OEM - Rider weight approx. 80 -90 kg + luggage
6.3 N/mm - 2 steps harder than OEM - Rider weight approx. 90 -100 kg + luggage
6.6 N/mm - 3 steps harder than OEM - Rider weight approx. 100-120 kg + luggage
6.9 N/mm - 4 steps harder than OEM - Rider weight more than 120 kg + passenger / heavy luggage

Scope of Delivery:

1 Set Forks springs (2 springs)

Fits for all:

Yamaha Tenere 700 Rally 2025 onwards
