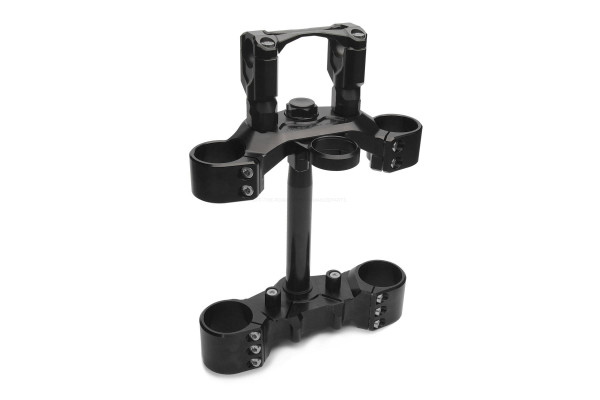

Triple clamp set, cnc machined, for 48 mm WP forks, Yamaha Tenere 700

CAD designed for best stiffness compared with lowest weight. This CNC machine milled this clamps are made for the real off-road use!



Upper clamp (54 mm) and lower clamp diameter (60 mm) for use with WP 48 mm fork tubes like used e.g. KTM or Husqvarna.
The off-set is like standart, but this can be changed if you need something special.

Height of the lower triple is 60 mm high with a 3-fold clamping, the standard lower triple has only weak 45 mm with a 2-fold clamping. This makes the triple clamp much stiffer and rigid compared to the oem triple. The result is more precise and therefore safer handling in all situations.

The upper clamps is machined with attachment for the steering lock and lower triple clamp with steering stops.

Also a high Rally front fender can be mounted.



The ingenious point of this design is the fully adjustable handlebar position and removable ignigion lock attachment.

The handlebar clamps can be moved forward 5 mm or backwards 15 mm. Also an additional +/-5 mm adjustable handlebar position is realized through excentric handlebar clamps. So the handlebar can be offset +10 mm forward and up to 20 mm backward.

Also the height of the handlebar can be choosen nearly without restrictions. The height can be adjusted in steps of 10 mm with special bushings. Compared to the stock position a height of -20 mm up to +50 mm are possible. Longer cables / wires may be needed depending on a height more than 30 mm compared to stock position.

The mounting bracket for the ignition lock is bolt-on. So, if you want to race the bike and do not need the lock on this position, you can remove the attachment and the lock.



The triple clamp is a masterpiece of high class german engineering. Great matching the unique look of your Yamaha. With it's fully compatibility of the steering lock mechanism this triple clamp increases the visual appeal of your bike. The stock steering nut can still be used. For our anodised aluminium steering nut see accessories below.

Fully CNC machined from solid Aircraft-Grade billet aluminum (7075 T6), our OTR triple clamp is much stronger than the stock Yamaha unit, but light in weight as well.

Avaiable in various anodised colours. Other colors on request.









Please note: needed 48 mm WP fork tubes not included in delivery!
