Handlebar clamps RAID 28mm Yamaha XT660Z Tenere
€89.95
Available, delivery time: 1-3 days
Handlebar clamps RAID 28mm Yamaha XT660Z Tenere

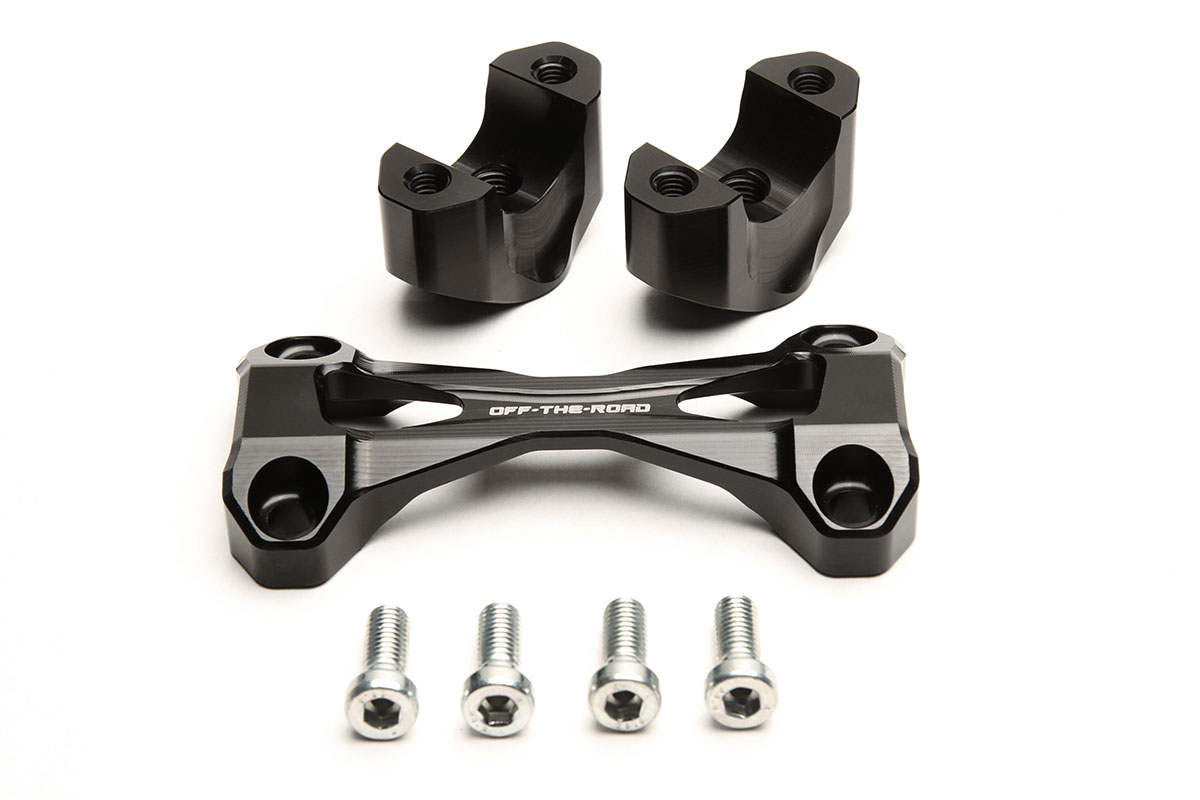

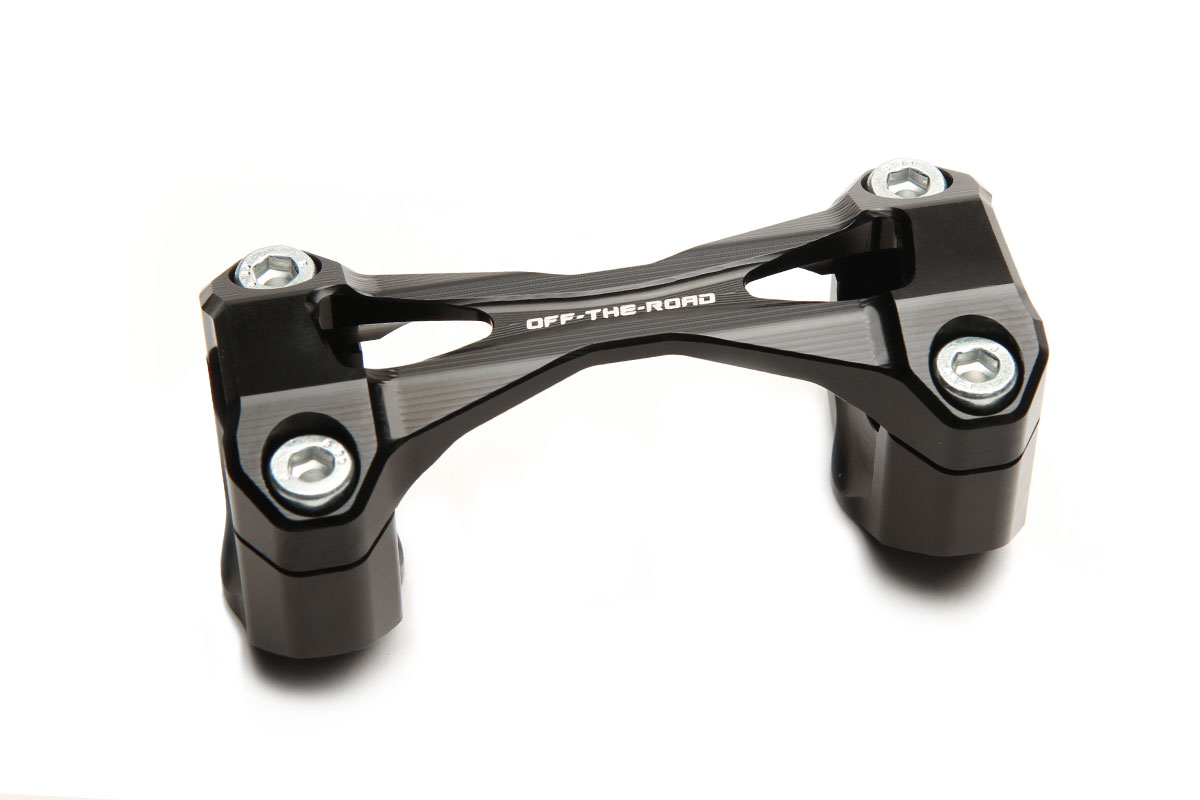

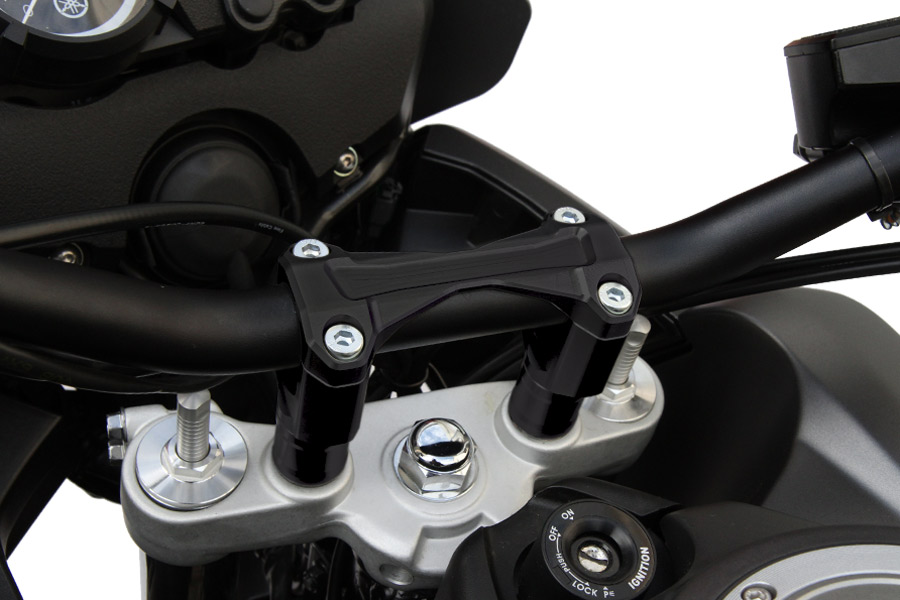

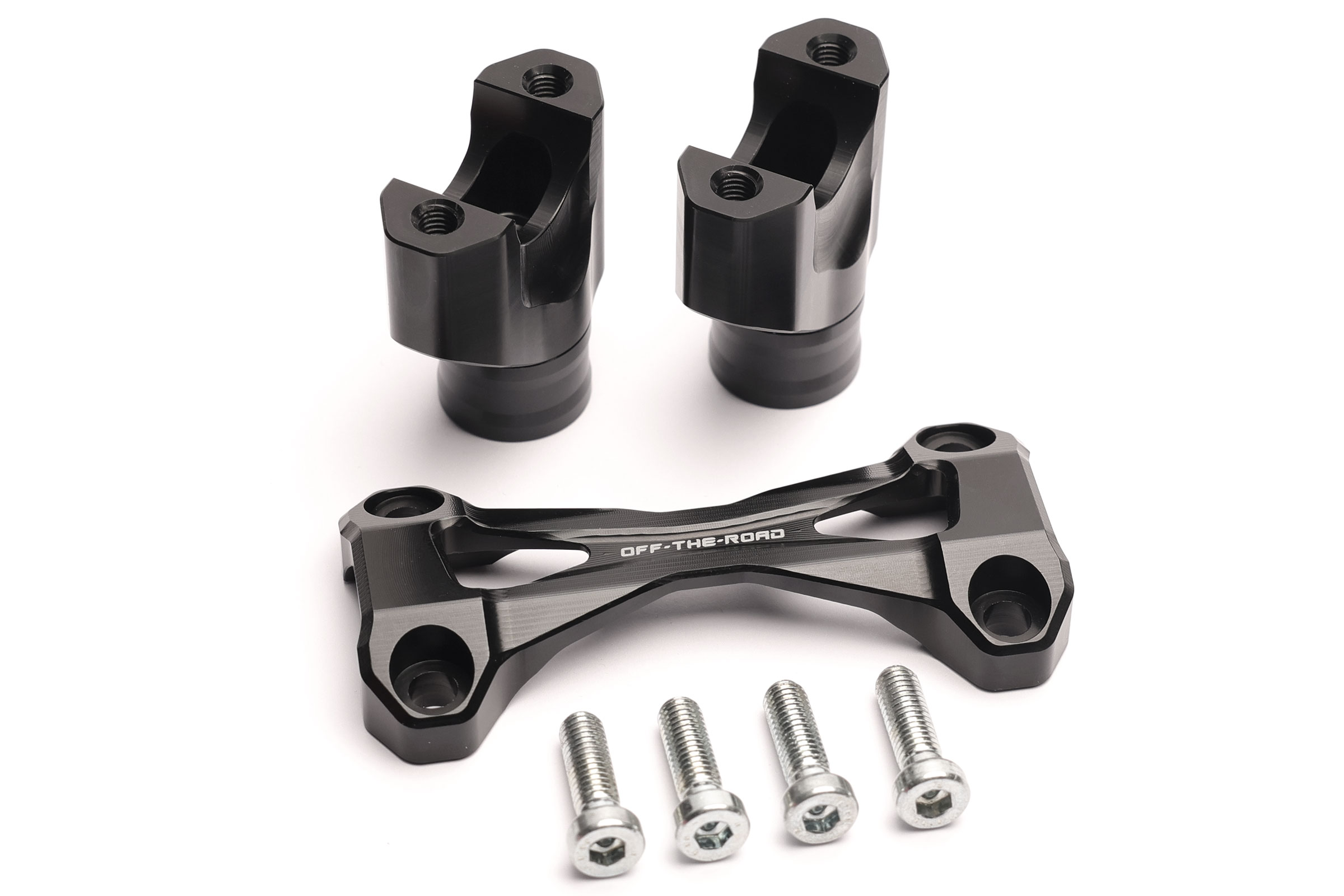

Precisely CNC machined and strong RAID handlebar clamp set for Yamaha XT-660Z Tenere
The upper handlebar clamping plate provides a high torsional stiffness of the complete set. The handlebar height can be individually varied with additional spacers.
We manufacture this clamps on modern cnc machines here in our own production.
The avaiable versions are the height compared to the stock handlebar clamp height. Measured in mm between the lower end of the handlebar and the top of the triple clamps.
The specified height refers to the lower edge of the handlebar to the upper edge of the triple clamp. +0 mm means the same height as standard, +20 mm means the handlebar position is 20 mm higher than standard.
If the listed height is not enough for your needs, you can add additonal spacers shown in the 'accessories' section. New bolts are needed as well.
OEM brake lines and clutch cables work up to a height 30mm more than stock.
Details:
- made from aircraft aluminium 7075 T6
- high torsional stiffness
- handlebar position can be changed +/- 5 mm
- hight can be adjusted individually

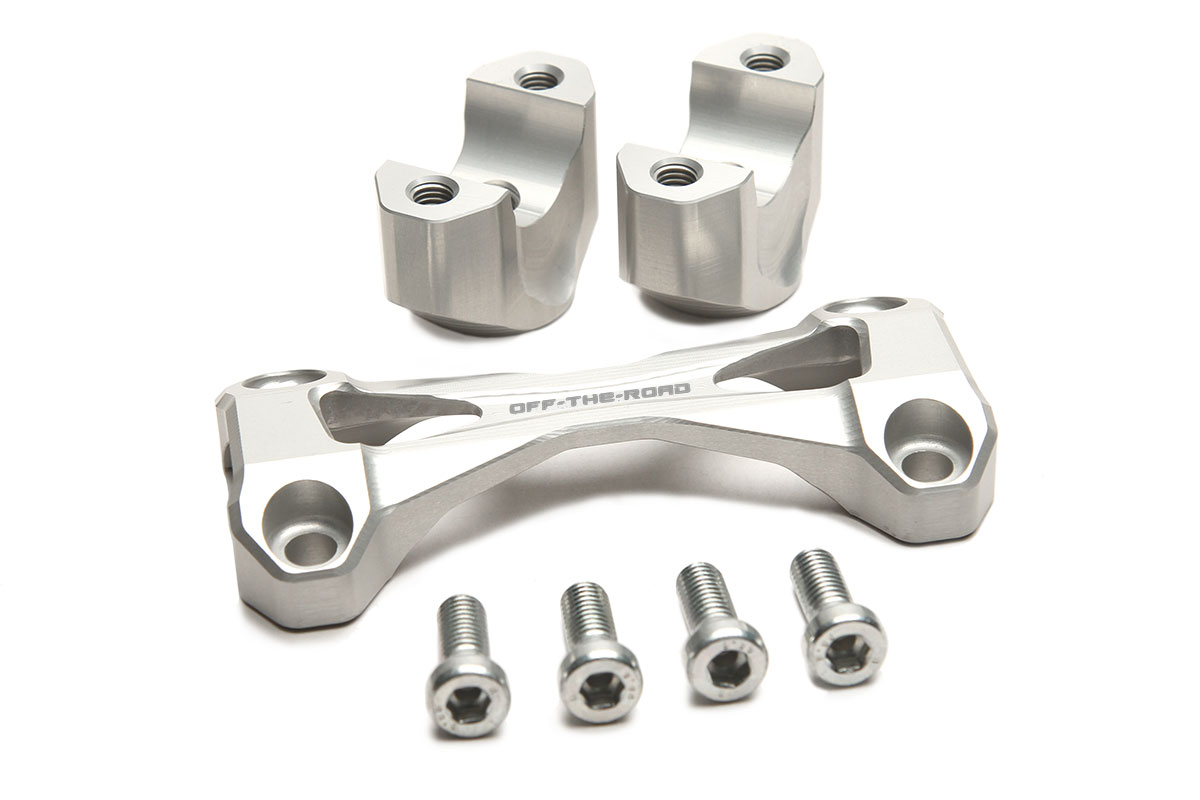

- color: silver or black anodised
- additional spacer to lower or rise avaiable. See accessories
- Made in Germany by OTR
- 10 years warranty
- sold as a set
Fits all:
- Yamaha XT-660Z Tenere 2008-2016
- Yamaha XT-660ZA ABS Tenere 2011-2016
OFF-THE-ROAD - OTR-Performance GmbH
Hugo-Junkers-Str. 52-54
50739 Köln, Deutschland
info@off-the-road.de
ZUBEHÖR
Available, delivery time: 1-3 days
Distance bushing in various heights for our cnc machined handlebar clamps. The fully cnc machined bushing is avaible from 10-50mm height. By using this spacer in combination with our handlebar clamps almost all heights are possible. Made of high grade aircraft aluminium, black or silver anodised. Delivered without bolts. For bolts see accessories. To be used only with our cnc machined handlebar clamps or triple clamp sets. See accessories. Price per piece. For mounting two pieces needed.
Available, delivery time: 1-3 days
M10 bolt in DIN6912 version, galvanised. Suitable for our 76-E5 handlebar clamp sets. Length of the bolt corresponds to dimension L in the drawing. Price per piece.
Available, delivery time: 1-3 days
High quality throttle cable in an extended version (+40mm). For all Yamaha XT660 with handlebar risers more than 30mm and/or additional higher handlebars. We use this prolonged throttle cables e.g. for our Rally raid bikes! Sold as a pair (opener ond closer cable). Perfect in combination with our extended brake hose or clutch cable (see accessoiries). Fits all: · Yamaha XT-660R · Yamaha XT660X · Yamaha XT660Z Tenere · Yamaha XT660ZA Tenere
