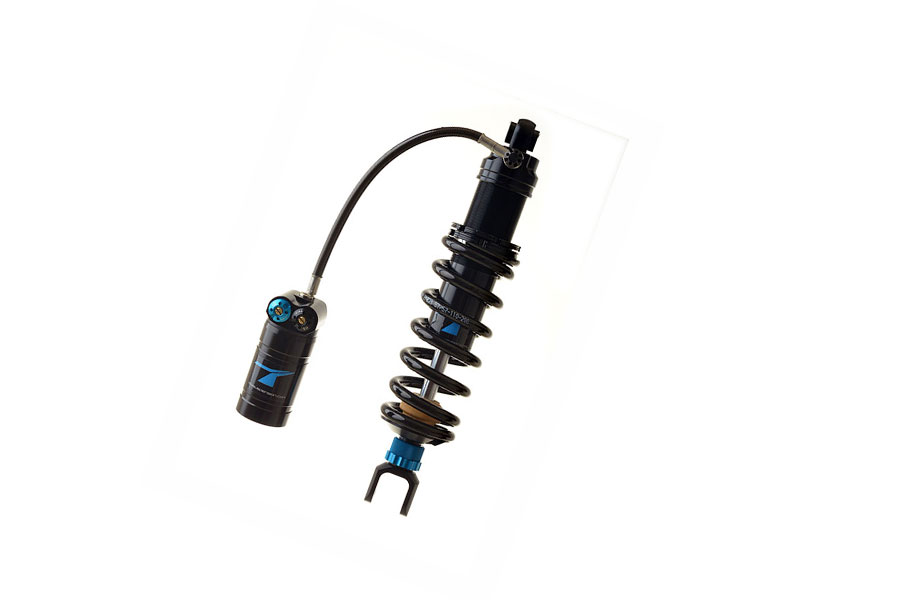

OTR/TFX Adventure shock with external reservoir Yamaha XT-1200Z Super Tenere, manual Preload Adjustment
€869.95
OTR/TFX Adventure shock with external reservoir Yamaha XT-1200Z Super Tenere, manual Preload Adjustment
In Cooperation with TFX we have developed a great shock for the Yamaha XT-1200Z Tenere. Special made for the needs of world traveller, rally pilots, and trail / touring riders.
The TFX shocks are custom-built and are personalized to your needs and expectations. The shocks are suited for street use but also for Rally Raid and traveling. They will give you the comfort, control, safety and durability you need and ask from your shock absorbers. The shocks are engineered and manufactured from the best materials to guarantee you a shock you can rely on for many years and which will full fill your needs on the road or track.
Shocks are the connecting link between the bike and the street with a high influence in riding comfort - so do not make any compromises at this point! The shocks are custom made and personalized to your needs. Due to the wide adjustment range of the damping and the preload (also hydraulic when ordered) the set-up of the damper can also easily changed and adjusted by yourself. This shock combines great comfort, perfect damping, robustness and longevity. - so everything a good shock needs.
All TFX shocks are custom-built for each bike and each driver. That means, that you have to wait a little bit, till you get YOUR OTR/TFX shock. But not longer than about 7-20 days, depending on season.
The set up for each shock, the damping and rebound as well as the springs are tested on and off-road to get the best results. They are the results of true tests with the Tenere under real conditions and no guesswork! Tested e.g. by J. von Arendt (Traildreamer) in very hard adventure trail and Rally use.
All OTR/TFX shocks work with the "de Carbon" concept. This shock is a high pressure monotube type. The fluid is put under gas pressure and the gas and the fluid are kept apart by a separating piston. The piston is fitted in an external reservoir. This will give you the advantage of stabil suspension work even in the worst conditions.
Features:
· Single tube gas shock
· Piston diameter 46mm
· Shock rod diameter 16mm

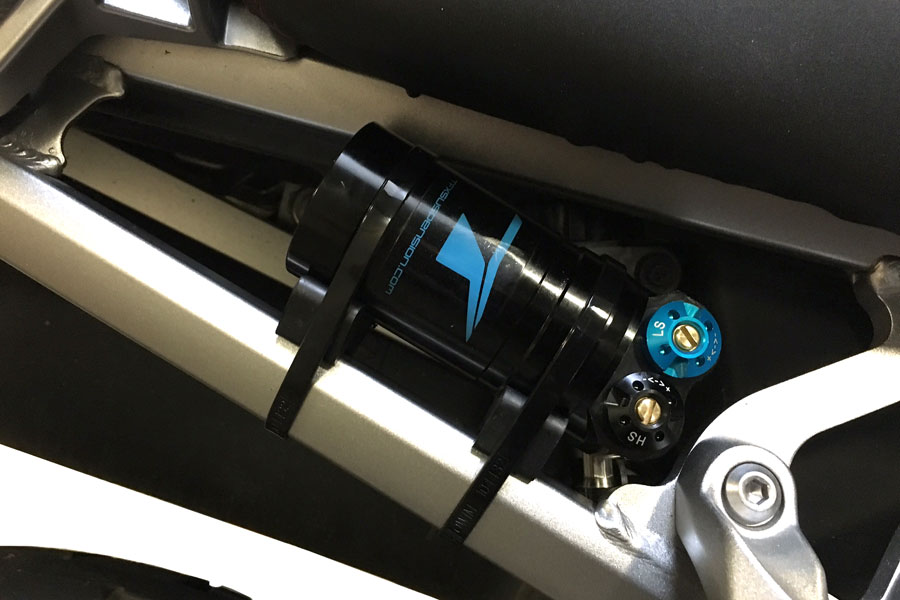

· external reservoir
· adjustable rebound damping
· adjustable compression damping (high + low speed)
· Free adjustable spring preload (hook wrench)
· our recommendation for Street, off-road and trail riding use with the 1200 Tenere
· Tested by J. von Arendt (Traildreamer)
· avaiable for Yamaha XT1200Z Super Tenere
· other options like e.g. different length on request.
The suspension struts are custom-made to order after receipt of the order. Please allow for a seasonal delivery time of 6-20 working days.
Please fill in the questionnaire for individual suspension setup (see Downloads) and send it to us after ordering.
The shock absorber can also be easily adjusted later to different loading conditions with the help of the adjustable spring preload.
